Restore and upgrade

Discussion in '8th Gen' started by Rockandrolla, Jun 13, 2014.

  1. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    Doing some mods, need some advice,

    Aim: meet and beat the oe standard on the old rolla

    First part of the project is brakes. So need advice on how to proceed

    Currently running on:

    Original booster, lines, and fluid.

    Brembo blanks and akebono up front
    Oe Toyota drums and pads out back.

    What's a good upgrade for better braking ability and confidence?

    Targets to meets when I say ability and confidence:
    1) reduced braking distance
    2) reduce fade
    3) reduced Brake pedal travel
  2. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,978
    Likes Received:
    2,861
    Trophy Points:
    61,468
    Vehicles:
    Lexus IS300
    I'd say that stainless steel brake lines should be your first mod, though I've never done them before
  3. Offline

    James Bullshit Police

    Moderator
    Message Count:
    15,361
    Likes Received:
    978
    Trophy Points:
    943
    Location:
    Vehicles:
    ZZE110, MA70, JZA70, AE92 GT-S x2, xB with a rollcage, 900 ft-lb Dodge Ram
    Same brake mods as you except Hawk Performance Ceramic pads.

    Just changing from stock fluid to Motul RBF660 let me run hard with full braking on the track for 25-30 minutes with no fading. Lines, rotors, pads held up much longer than the tires!
  4. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    For the flush, can I use regular parts chain fluid, and then switch over to say Amsoil 500? Or is the rule, use the same fluid for flush and fill?

    For pads (majority city use stop and go traffic with occasional highway use)
    Isn't hawk performance ceramic OE replacement?
    Any experiences on
    HPS
    Yellow stuff
    Red stuff
    Porterfield r4s

    Rotors:
    Brembo is my solid choice,
    Any opinions on power slot or ebcs
  5. Offline

    Yinster Well-Known Member

    Message Count:
    249
    Likes Received:
    17
    Trophy Points:
    78
    Location:
    Hawaii
    Vehicles:
    2001 Toyota Corolla LE, 2007 Toyota Camry LE
    why not rear disk conversion using the rear disk part from ae92, ae111 or celica ?

    or if u dont feel like to convert drum to disk, just change the booster from original to 92-96 camry 2.2/3.0 , note if your car is a 98-00 model and come with ABS, you must change the abs module to a 01-02 one to keep ABS .

    changing the booster will should get more brake power, but in my opinion, rear disk brake is quite enough already ( even though i might change my booster too eventually)
  6. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    Don't have a decent workshop willing to drill the Celia hubs for the rolla. I'm trying to maximize the setup as is. The booster and conversion is way more then I would need.
  7. Offline

    Yinster Well-Known Member

    Message Count:
    249
    Likes Received:
    17
    Trophy Points:
    78
    Location:
    Hawaii
    Vehicles:
    2001 Toyota Corolla LE, 2007 Toyota Camry LE

    AE92 GTS is 4 lug pattern....... just giving you some idea....

    i guess improved brake pads and rotor will somehow increase the performance, than if you dont feel enough, u can always get the booster or rear disk conversion
  8. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
  9. Offline

    cBass buffalo bell lover

    Message Count:
    10,347
    Likes Received:
    765
    Trophy Points:
    573
    Location:
    Stockton, CA
    Vehicles:
    2005 Corolla XRS

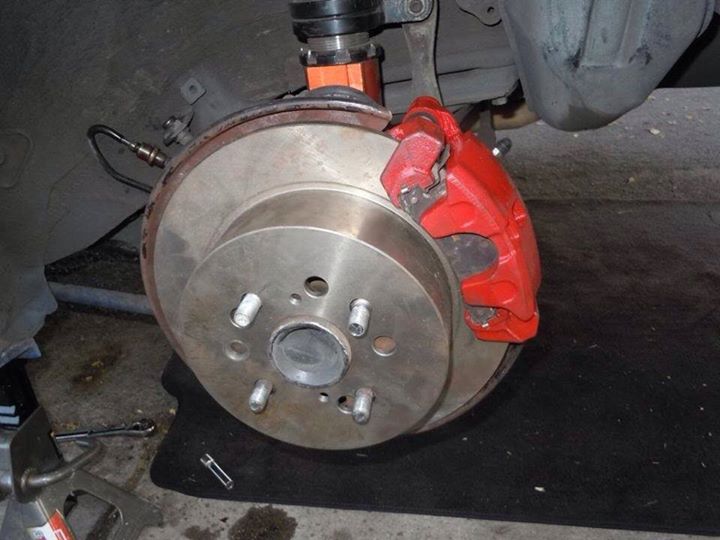

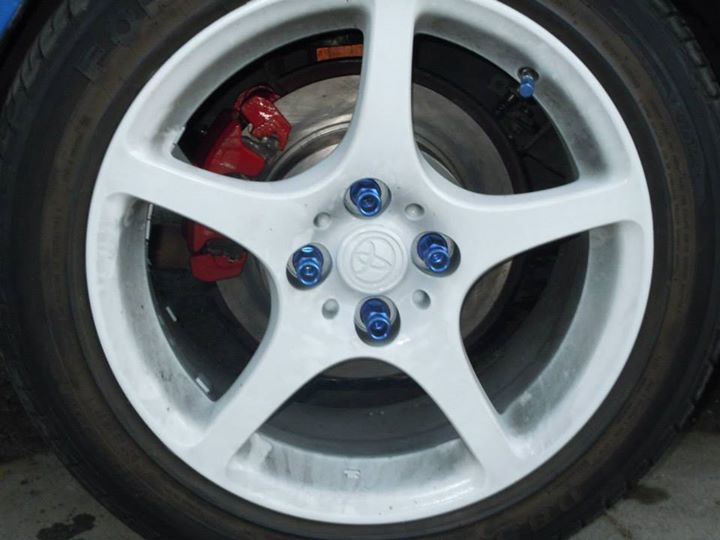

    that is probably the most cheapest way to do a rear disc conversion as i've already done it that way twice..
    10418181_711841518872718_8022502820924838675_n.jpg 1378482_589630071093864_2044919082_n.jpg

    i bought everything needed to do the swap for around $60 from a local junk yard.....then the rotors Milky on the forums sent me a set of disc already drilled 4x100 for some corolla parts in exchange.
  10. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,269
    Trophy Points:
    61,028
    I have Haw HPS pads on my car with drilled KVR rotors, OEM everything else all around. At the time of the upgrade it was amazing but right now my shoes out back are shot so my brakes aren't the best currently.
  11. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    So I have been researching lol a lot about brakes:
    Blanks great heat sink city driving will cause warping

    Slotted great water dispersion, but prone to cracking and decreased pad contact

    Drilled, heat dispersion but prone to cracking and decrease contact

    So far I have price out:

    Brembo blanks, or centric premium (hat is painted:( 38+ tax each
    Stop tech slotted $58 each no tax
    3gd ebc rotors $63 each no tax

    SOOOOO CONFUSING.

    EBC Yellowstuff crumbles but also offers superior stopping power

    Hawk hps the golden combo, but poor cold bite

    Porter field r4s tad bit better than the hawk better cold bite

    Yellow stuff: $95
    Hawk :76 shipped
    Porti
    A lot of stuff
  12. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,978
    Likes Received:
    2,861
    Trophy Points:
    61,468
    Vehicles:
    Lexus IS300
    city driving will not warp rotors, I've never heard that one lol. Mountain driving can though, but if you need to, you can always engine brake.
  13. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    Apparently, (this is assuming your brake caliper is in full working condition, lateral runout and hub runout is at the prescribed factory measurements), if your in constant city stop and go traffic, blank rotors heat up quickly (efficient heat sink), and if one doesn't keep off the brakes while in stuck in traffic pad material transfers to the rotor creating high spots aka warping.

    The solution is
    A) when stuck in traffic layoff the brakes or allow some rotation forward to help minimize rotor pad contact
    B) drilled rotors to allow better airflow (at what cost is what worries me)

    I don't want drilled rotors, as the winter months will surely do a number on them, slotted vs blank vs dimpled & slotted is what I'm down to.
  14. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,978
    Likes Received:
    2,861
    Trophy Points:
    61,468
    Vehicles:
    Lexus IS300
    I'd just go with a better quality blank.
  15. Offline

    MP220 Well-Known Member

    Message Count:
    43
    Likes Received:
    15
    Trophy Points:
    108
    Location:
    CT
    Vehicles:
    2001 Toyota Corolla CE
    ^This. Also, even if it's a blank it should be vented, which will take care of most of the heat issues anyway.
  16. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,978
    Likes Received:
    2,861
    Trophy Points:
    61,468
    Vehicles:
    Lexus IS300
    Yeah all the vents are inside, but that's normal.
  17. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    Anyone wanna share experiences with ATE rotors
  18. Offline

    Rockandrolla New Member

    Message Count:
    28
    Likes Received:
    1
    Trophy Points:
    3
    well, ordered it:

    Brembo Blanks and EBC Yellowstuff....

    Hopefully the EBCs aren`t too hard on the Brembos.

    BTW if anyones interested 3GD rotors from ebc arent that much more compared to Brembos
  19. Offline

    Jcbzr Member

    Message Count:
    30
    Likes Received:
    6
    Trophy Points:
    8
    For city driving, regular rotors are fine (no slots, no drills).
    I'm in a garage daily, fixing cars driven daily... Yes, rotors do get warped from daily use (over time; particularly in areas with 4 seasons throughout the year).

    Actually, I changed my front rotors and pads last night (and painted the calipers black). I'm using higher grade rotors w/ a coating to have the disc stay silver & shiny for longer. The pads are ceramic and good quality. I'm at a loss for brand names at the moment.

    For daily use without harsh driving, you don't need to spend a fortune on the brakes.
  20. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,269
    Trophy Points:
    61,028
    Let us know how it works out
