Need Help - Ultra Speed Meter Wiring Diagram

Discussion in 'Interior' started by Hopespeed, May 2, 2009.

  1. Offline

    Hopespeed New Member

    Message Count:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    KL, Malaysia
    Need Help - Ultra Speed Meter Wiring Diagram

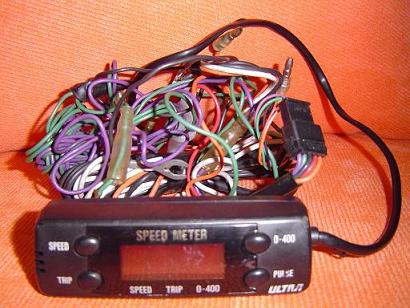

    Dear all, may i know who have the Ultra Speed Meter wiring diagram or installation manual??? I need to fit to my AE101 4AGZE for the speed cut.....:)

    Tks.

    Attached Files:

  2. Offline

    Hopespeed New Member

    Message Count:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    KL, Malaysia
    nobody can help me? :(
  3. Offline

    JspeXAE102 Active Member

    Message Count:
    4,850
    Likes Received:
    13
    Trophy Points:
    38
    Location:
    群馬 日本
    nobody use that here
  4. Offline

    Pashtet New Member

    Message Count:
    2
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Russia, west Siberia
    Vehicles:
    Levin AE111 blacktop TRD
    5 wires
    black: earth
    Red: ignition Power 12v +
    Purple: Output speed
    Orange: АСС
    Green: Input speed
    James likes this.
