DIY How to properly mount cBass TRD rear valences reps

Discussion in 'Exterior' started by cBass, Sep 20, 2013.

  1. Offline

    cBass buffalo bell lover

    Message Count:
    10,340
    Likes Received:
    759
    Trophy Points:
    443
    Location:
    Stockton, CA
    Vehicles:
    2005 Corolla XRS

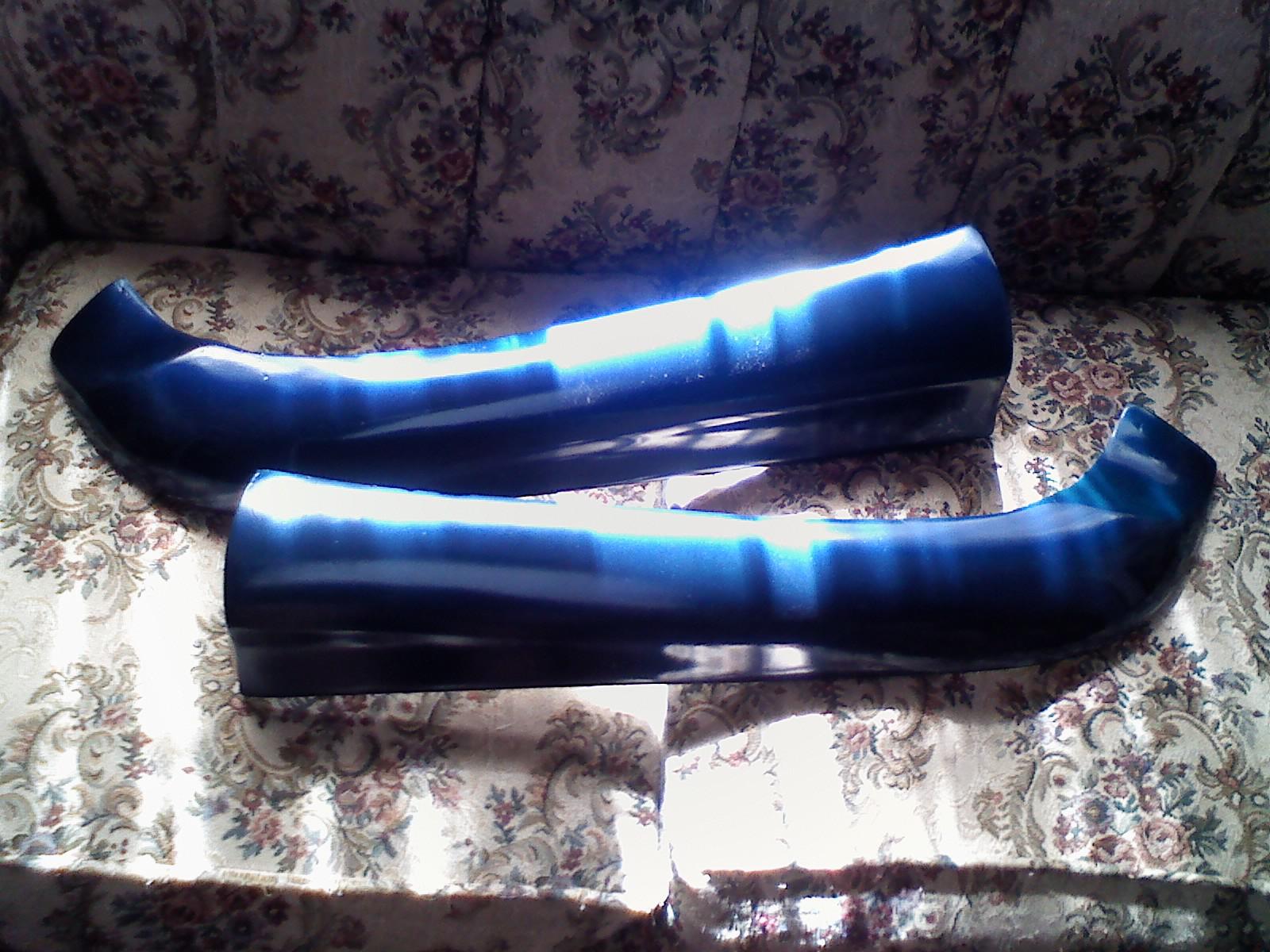

    So this has been a question everyone has been asking because apparently mine are a little different, my reps dont provide the groves found inside the valences so that kinda leaves one wondering on how to install them...well i decided to make a DIY

    tools you need
    [IMG]
    10mm socket, drill, jack, double sided tape, measuring tape, scissors, rag, and screws
    [IMG]
    jack up the car and remove your wheel for better access
    [IMG]
    [IMG]
    remove the screws to remove your mud guard
    [IMG]
    clean the area because you will have build up dirt from where the mud guard was on.
    [IMG]
    the distance from the top of the valence to the body line on the quarter panel is 8 1/2 inches for the proper height used with the real valences. You can mark it with something like a white coloring pencil or tape.
    [IMG]
    you will need to cut the 3m tape in half like im doing, you can buy this 3m tape at home depot and its in the paint section next to the spray cans
    [IMG]
    apply the tape like i did.
    [IMG]
    you will need to peel the ends like i did, it will help so when you test fit the valence and not stick to the body
    [IMG]
    also make sure you apply the tape near the edge because this creates like a bumper from the valence to the body of the car and avoid it from getting scratched or rubbing on each other.
    [IMG]
    make sure you drill a hole on the body of the car before installing the valence.
    [IMG]
    now attach it to the car and screw it in, you can now remove the 3m tape and line it up with the rear bumper curves. very hard to miss...
    [IMG]
    apply pressure towards the body with your hand and use the drill to screw it on.
    [IMG]

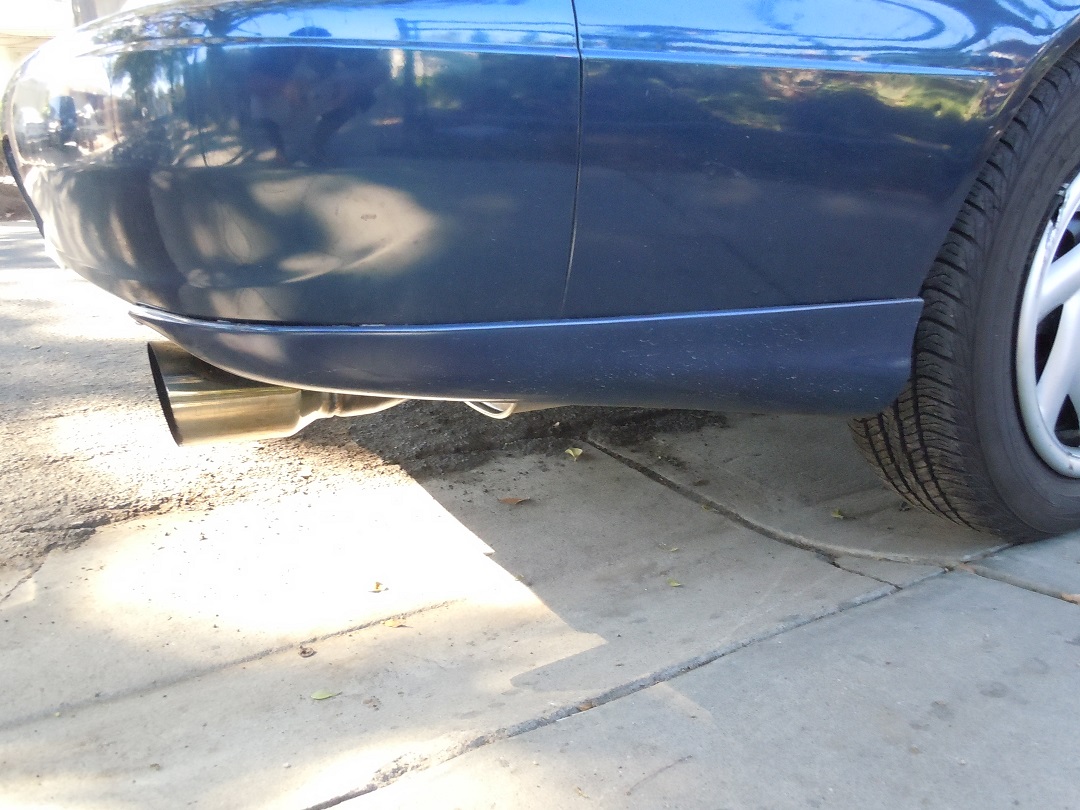

    installed
    [IMG]
    the 3m tape does alot of work if installed right
    [IMG]

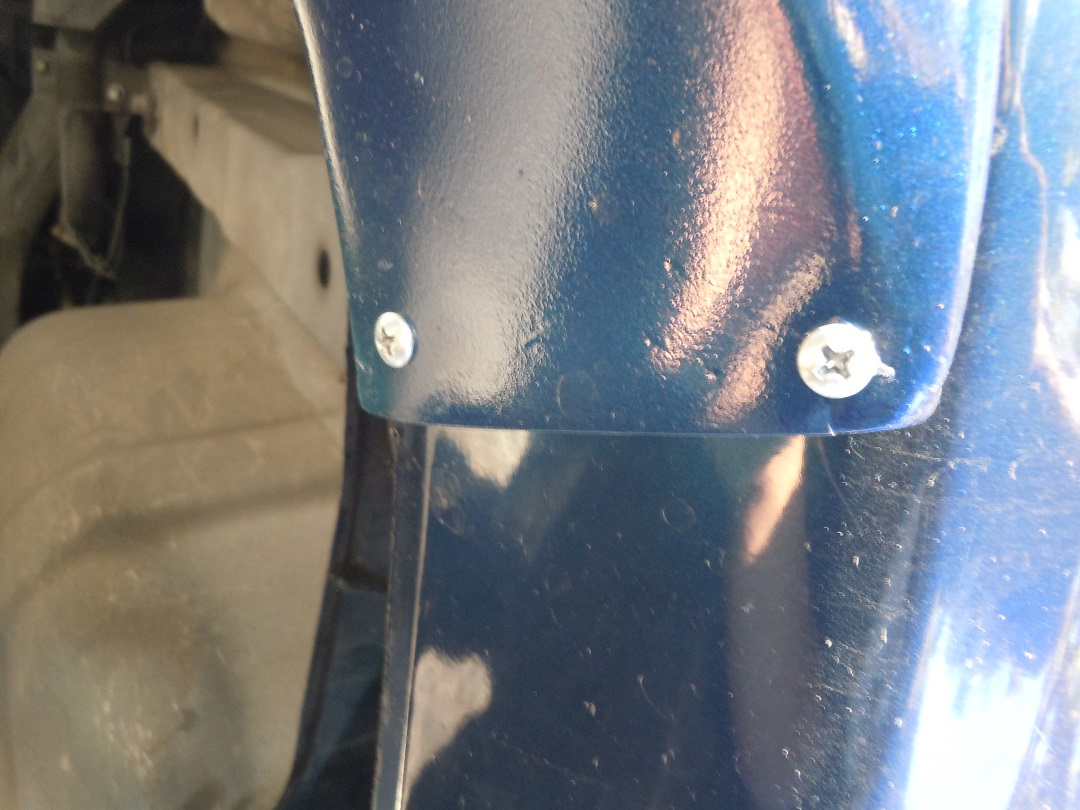

    now you want to install the second screw on the inside of the wheel well and you need to pull on the bottom of the valance away of the car to flare it out like the original ones do, and then use another screw so it wont move


    this is optional but not needed,
    [IMG]
    if the inside part of the valence separate a little you can add another screw to hold it in for a total of 4 screws used.

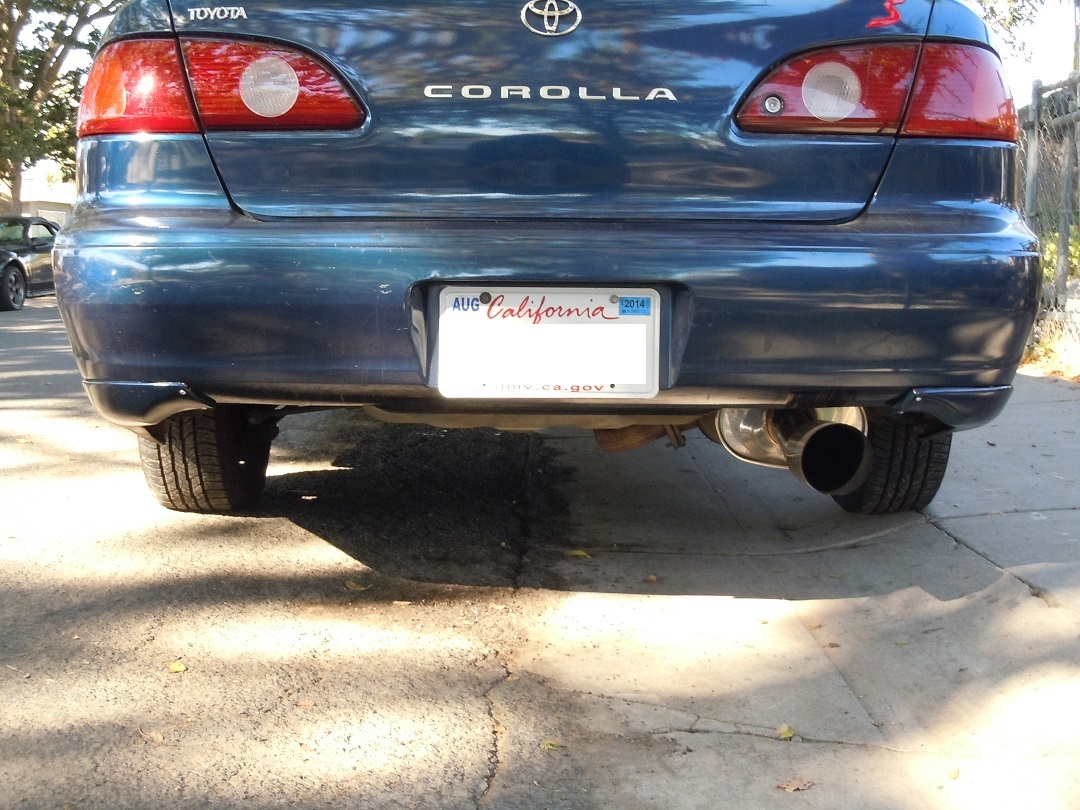

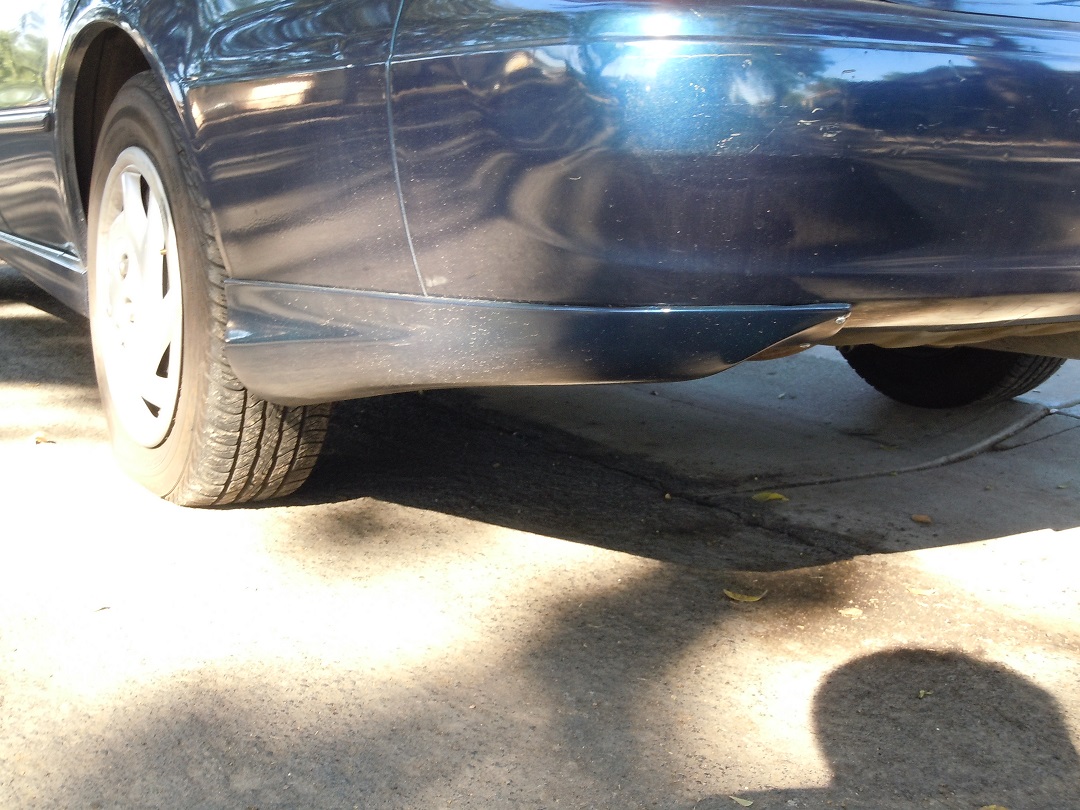

    AND ENJOY!
    [IMG]
    [IMG]
    View attachment 2733
    don't forget the other side...


    I will eventually do the other pieces when i make them for my car...stay tuned
    James and Gold like this.
  2. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,936
    Likes Received:
    2,828
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    Why not just get the right width tape lol.......
  3. Offline

    cBass buffalo bell lover

    Message Count:
    10,340
    Likes Received:
    759
    Trophy Points:
    443
    Location:
    Stockton, CA
    Vehicles:
    2005 Corolla XRS

    its been proven that the smaller tape found in autozone is not sticky at all and its $6 for the roll.....you go to homedepot and the big roll is $9...and its at least 10x more the amount you get....
  4. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Nice blurry pics!
  5. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,936
    Likes Received:
    2,828
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    I thought this was the reason. Leave it to a Corolla owner to cut an entire roll of tape in half to save money! haha
  6. Offline

    cBass buffalo bell lover

    Message Count:
    10,340
    Likes Received:
    759
    Trophy Points:
    443
    Location:
    Stockton, CA
    Vehicles:
    2005 Corolla XRS
    well its also thicker, this 3m tape is actually used to hang or hold up things....meaning it will stick better because the smaller one is meant for side molding and that is light
  7. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    That's what she said.
  8. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,936
    Likes Received:
    2,828
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
  9. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Careful gold, cbass will think you're joking, and we won't get more members because of it. :rolleyes:
  10. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,936
    Likes Received:
    2,828
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    I don't think new members can join anyway lol.
  11. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    It still says your fake account is the newest member, but I've seen some "spam cleaners" registering and being active. It's weird.
  12. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,936
    Likes Received:
    2,828
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    Yeah, ever since I put on some blanket ban IPs, all of the spammers stopped registering and there hasn't been any that got through lol.
  13. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
  14. Offline

    James Bullshit Police

    Moderator
    Message Count:
    15,347
    Likes Received:
    974
    Trophy Points:
    943
    Location:
    Vehicles:
    ZZE110, MA70, JZA70, GK2A, E34
    So, how come we didn't follow this method on my valences? :troll:
  15. Offline

    cBass buffalo bell lover

    Message Count:
    10,340
    Likes Received:
    759
    Trophy Points:
    443
    Location:
    Stockton, CA
    Vehicles:
    2005 Corolla XRS
    if anything james, we did not flare them out that much, we can still do that but that will leave an extra hole on your valences...not on the body of the car
  16. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    There are always things to do with extra holes. I doubt he'll mind.
