Engine Exhaust Cam

Discussion in 'Powertrain' started by slow_r0lla, Jul 15, 2015.

  1. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE

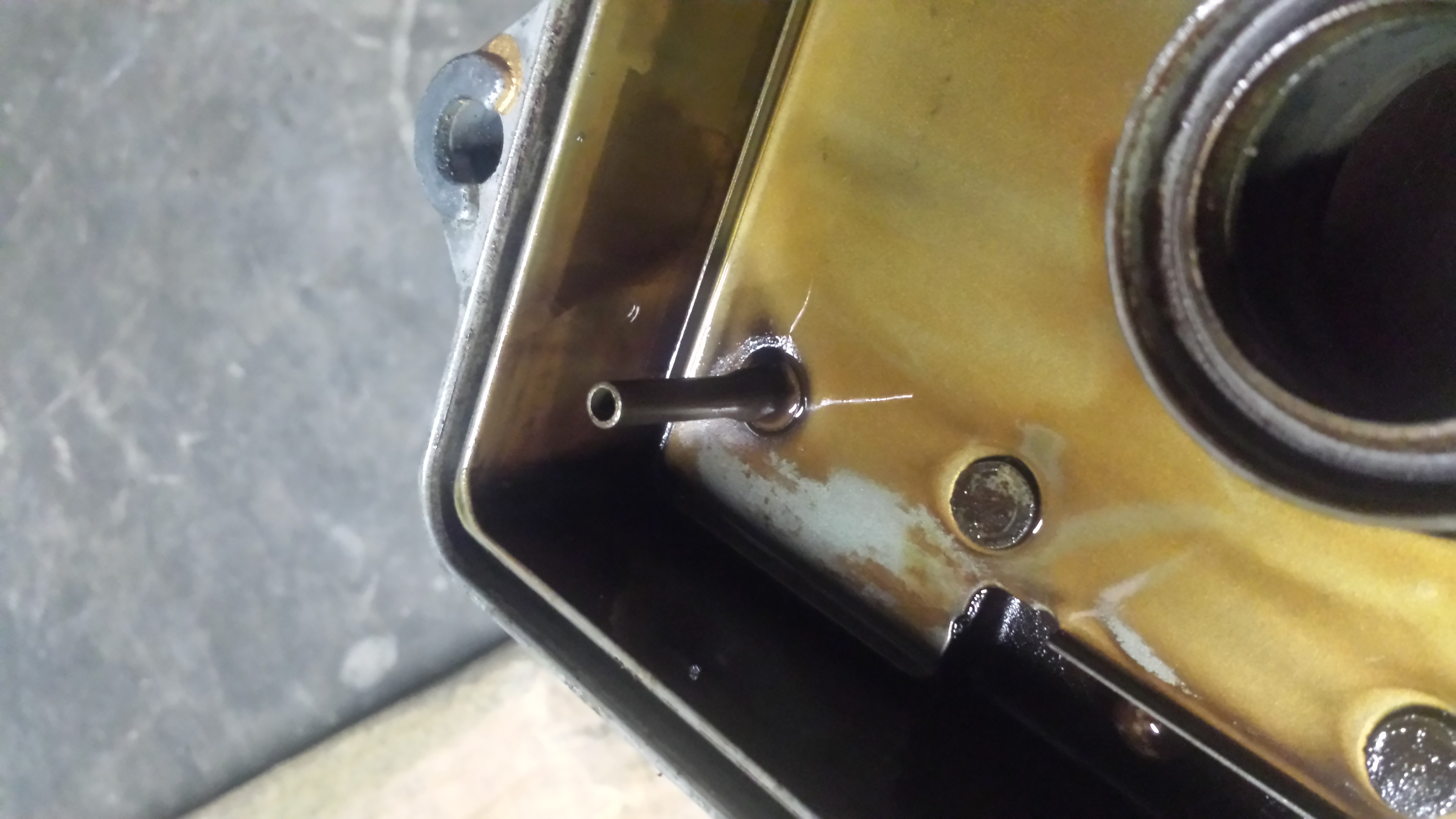

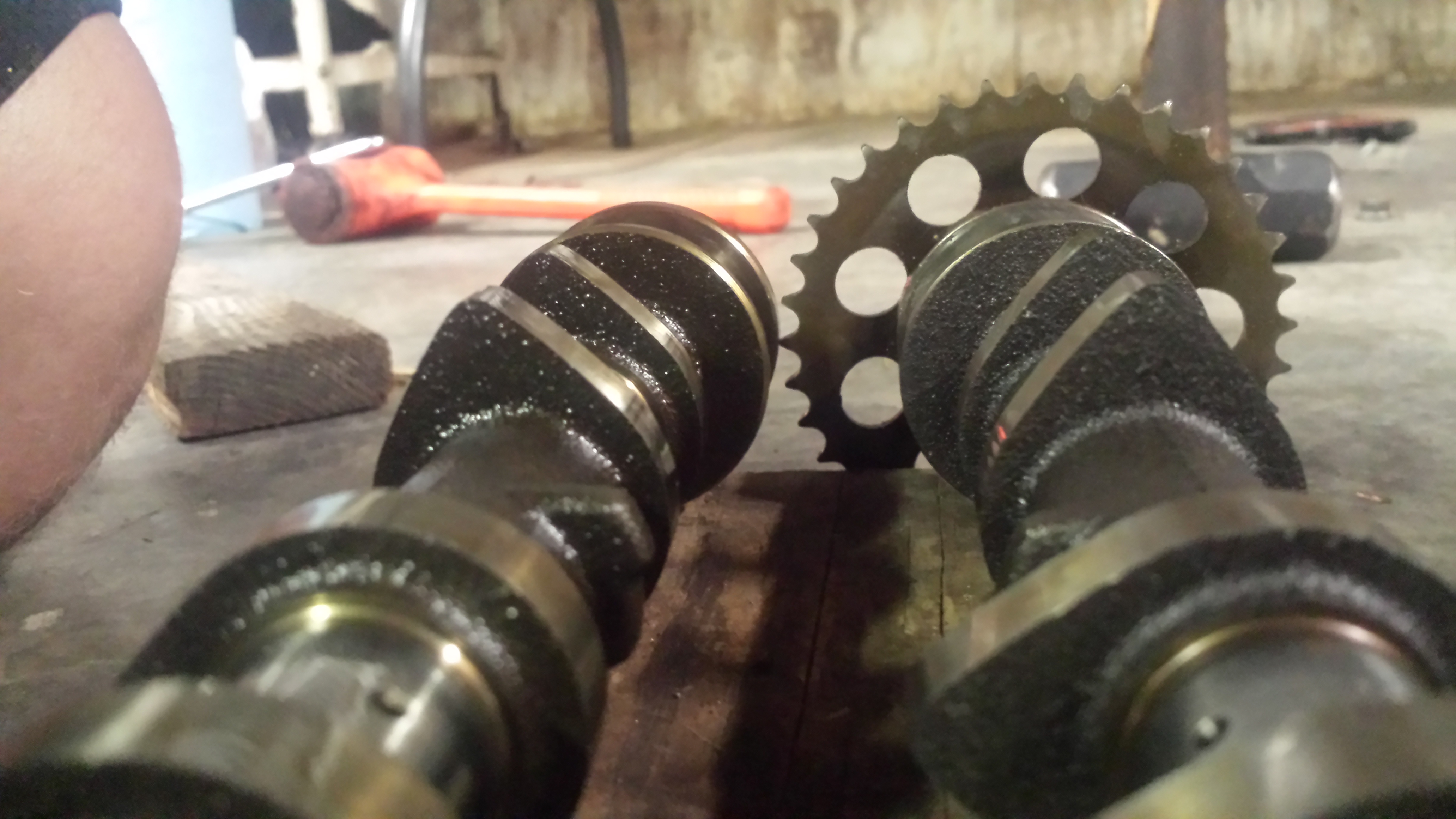

    So I just got back from a trip out to meet the great Milky and we installed a mod I feel should definitely be getting more attention than it is. It took us about half an hour to do and it provided a very noticeable gain to the butt dyno. We took the intake cam from a 98 99 Non-vvti Corolla and installed it as my Exhaust cam. You go from 224 degrees of duration to 240 degrees and you gain 1.1 mm of lift. I literally had 25 dollars into this mod and it is extremely noticeable with the celica gt ecu in the higher rpms. There is a couple of modifications needed to make the cam fit. The end needs to be grinded off and there is a stud on the valve cover oil baffle that also needs to be ground down. 20150705_000945.jpg 20150704_235200.jpg 20150704_235301.jpg
    Gold likes this.
  2. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    496
    Likes Received:
    70
    Trophy Points:
    308
    Location:
    Maryland
    Vehicles:
    ZZE110
    I remember when he first did this swap. You should post up a vid of you doing a pull
  3. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE
    Milky actually recorded a before and after for me lol let me see if I can post that.
  4. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE
    Not sure that I can post an MP4 file on here
  5. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    496
    Likes Received:
    70
    Trophy Points:
    308
    Location:
    Maryland
    Vehicles:
    ZZE110
    think you can maybe attach it to your post?
  6. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE
    I tried it might be too big of a file
  7. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    496
    Likes Received:
    70
    Trophy Points:
    308
    Location:
    Maryland
    Vehicles:
    ZZE110
    I guess youtube or something like photobucket
  8. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE

    Before

    After
    1nicetrd likes this.
  9. Offline

    1nicetrd Well-Known Member

    Message Count:
    876
    Likes Received:
    226
    Trophy Points:
    403
    Nice ! has milky got his car up and running ?
  10. Offline

    slow_r0lla New Member

    Message Count:
    22
    Likes Received:
    5
    Trophy Points:
    3
    Location:
    Maryland
    Vehicles:
    2000 Toyota Corolla CE
    Nah unfortunately not. He is crazy busy with builds at his garage. He has 13 cars there right now and his corolla is last priority. He has the 2zz assembled and wired up. He just got his TIG Welder and I am pretty sure welding his Turbo piping is about the last thing he needs to do lol
    1nicetrd likes this.
  11. Offline

    dward3 Well-Known Member

    Message Count:
    496
    Likes Received:
    13
    Trophy Points:
    568
    Location:
    Phoenix
    That's pretty nice! :)
    slow_r0lla likes this.
  12. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    496
    Likes Received:
    70
    Trophy Points:
    308
    Location:
    Maryland
    Vehicles:
    ZZE110
    Nice man!
