Forced Induction Custom Turbo System: 2001 Corolla

Discussion in 'Powertrain' started by Dr Tweak, Apr 23, 2007.

  1. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    That's running 10 lbs, we're using a Walbro 255 fuel pump, 380cc injectors, and Greddy eManage blue, dyno tuned on our Dynojet and using an LM1 wideband. No internal modifications, the complete turbo system including everything ran about $7000 or so (I'll have to double-check), that's a lot of money but it's ALL CUSTOM, and we are using all the best of the best parts, brand new ball-bearing turbo, high-density intercooler, and the list goes on and on, plus that includes all of the dyno tuning time, custom intercooler piping, custom manifold and downpipe, etc.

    Properly built and tuned, 10psi is no problem at all.

    -Doc
  2. Offline

    SaberJ2X Lurk MOAR

    Message Count:
    1,713
    Likes Received:
    7
    Trophy Points:
    398
    Location:
    Mayawest, PR
    a friend of mine did a 1zz-fe @ 15psi, but the owners started changing parts and fecking around with it and they blew the engine

    so yea, properly tuned and detonation free is the way to go
  3. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    7k is OK if it's a doc tweek monster :D and that ammount is just parts right?
  4. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Nope that's everything, parts, labor, tuning, etc.

    -Doc
  5. Offline

    01rollas New Member

    Message Count:
    2,218
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deep South, Texas , currently in Okinawa, Japan
    1 question what kind of turbo do you use? reason I am asking is because i run at 7PSI and with no intercooler with the current T-28 BB it had a T-25 Twin Scroll but it siezed due to poor lubircation, and it took forever to spool for its size. both turbos ran at the same PSI. the only difference is the T-25 TS boosted form high-mid to top end. the T-28 BB spools at just over 2000 RPM.
  6. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    GT2860RS Ball Bearing.

    -Doc
  7. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    Teh Disco Potato!
  8. Offline

    01rollas New Member

    Message Count:
    2,218
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deep South, Texas , currently in Okinawa, Japan
    Arigato Gozaeimas! or thank you in plain in english. hey its 0340 in the moring and i am sitting inside a 12 x 14 foot cage with 40 Shot guns and 60 9MM Pistols I am getting really bored and tired but anyway............
  9. Offline

    GSE21tuner Formerly rollatuner110. Representing AZLexus.club

    Message Count:
    10,948
    Likes Received:
    19
    Trophy Points:
    568
    Location:
    Phoenix, AZ
    Vehicles:
    07 Lexus IS350, 04 Lexus IS300
    You got gun cage duty? LOL My friend would love to trade places with you. He's a weapons freak.:p

    I've heard good things about the potato turbo. Anyone care to explain the extra benefits?
  10. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Pretty much the same benefits as a potato gun.
  11. Offline

    01rollas New Member

    Message Count:
    2,218
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deep South, Texas , currently in Okinawa, Japan
    yes i do for 24hrs. i really dont' give a crap, all the weapons are clean and inventoried as well as the ammo so right now i am sitting behind my desk typing and its now 0500 , yes three more hours to go!

    i don't know jack Sh!t about a disco potato or whatever the hell it is it seems every time they talk about it i loose track at some point.
  12. Offline

    cgreen38 Common sense, p

    Message Count:
    1,057
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Baton Rouge, LA
    :rofl:

    rollatuner110, the benefits of a "disco potato" are the rev range. It hits peak boost by about 4000 RPM, if I'm not mistaken. Good turbo for low range.
  13. Offline

    MovieSTAR i hurd u liek?

    Message Count:
    3,771
    Likes Received:
    16
    Trophy Points:
    318
    Location:
    Lakewood, CO
    Everybody Was Kung Fu Fighting

    do you think you could get more than 10psi out of it?
  14. Offline

    01rollas New Member

    Message Count:
    2,218
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deep South, Texas , currently in Okinawa, Japan
    yeah i he should but then that may require to build the engine more stronger internally, right now i know I can handle 14 psi safely but since my car is currently being used for a daily driver with two very paranoid parents about power i have it set at 7 psi. i was told that since it was modified to handle more power i could have up to 18 PSI but i don't want to push it.
  15. Offline

    crulejaypee New Member

    Message Count:
    75
    Likes Received:
    0
    Trophy Points:
    0
    Can the speed limiter be remove or set higher?
  16. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    ;)

    This is the GT28RS compressor map:

    [IMG]

    In addition to having an unusually wide mid-section so it's very efficient, this particular turbo is well-sized to this engine and for this power level. As you can see in the dyno chart, the turbo begins to spool at 2750 RPM (indicated by the steep "bank" at that point) which is quite low, so the low-end response is great, then reaching full boost by 3250 rpm (where the steep bank suddenly levels off). Looking at the other side of the chart, we see that beyond 6000 rpm where we hit the speed limiter, horsepower was still rising rapidly and torque still looks very good... indicating that the turbo is large enough, if it was too small then power and torque would be dropping off quickly.

    [IMG]

    Oh yes, quite easily, the only concern at this point is the engine itself. Next year we are doing a full forged rebuild, at which point will bring it up to 15 to 18 psi.

    Yes, actually we could install a digital speed calibration unit to set it higher if you like.

    -Doc
  17. Offline

    crulejaypee New Member

    Message Count:
    75
    Likes Received:
    0
    Trophy Points:
    0
    What are the benfits?
  18. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    You're currently limited to a top speed of around 120. If you want to go faster than 120, you will need it.

    -Doc
  19. Offline

    MovieSTAR i hurd u liek?

    Message Count:
    3,771
    Likes Received:
    16
    Trophy Points:
    318
    Location:
    Lakewood, CO
    sorry tweak i thought you did a full forged rebuild on this corolla mustve read it wrong
  20. Offline

    crulejaypee New Member

    Message Count:
    75
    Likes Received:
    0
    Trophy Points:
    0
    Yes, lets do this. Lets talk.
  21. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    quite busy are we?
  22. Offline

    01rollas New Member

    Message Count:
    2,218
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Deep South, Texas , currently in Okinawa, Japan
    hey DOC i got another engine laying around at my house I will PM you.
  23. Offline

    Barnacules 100101101011011

    Message Count:
    2,933
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Duvall, WA
    I just need to get my emanage wiring straightened out and my car will be back on the road running 8 psi, I blew my engine running 12psi but that was with a bad tune and potential wiring problems hehe :) 8 psi should be pretty safe. Corolla's with boost feel like little super cars.
  24. Offline

    xplicitcorolla99 Active Member

    Message Count:
    2,201
    Likes Received:
    0
    Trophy Points:
    38
    Location:
    las vegas
    any updates and dj reads 10% higher than md,right?.
  25. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    I've got some pics on the way :)

    There's no way to say for sure how one dyno reads to another since so many factors are involved. What we do know for sure is that it made x amount of power before, and now it's making x amount of power after, on the SAME dyno. That's really the only accurate way to compare numbers.

    -Doc
  26. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA

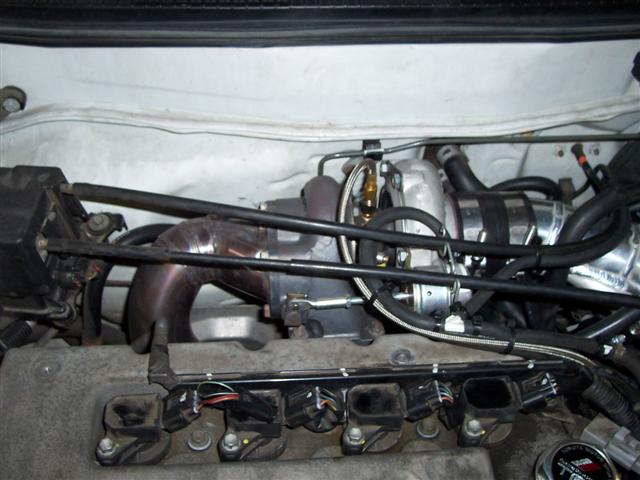

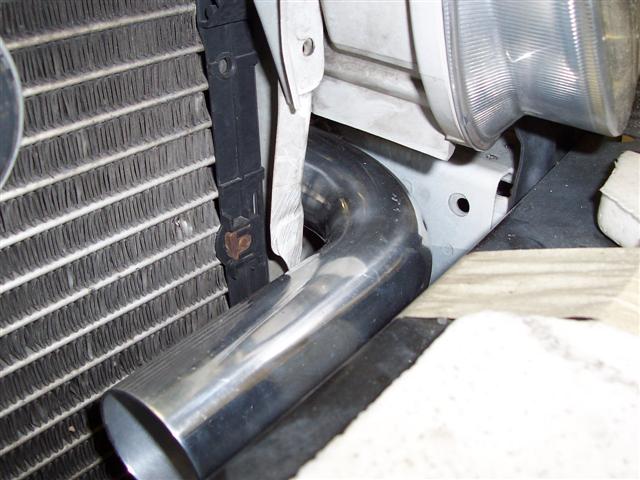

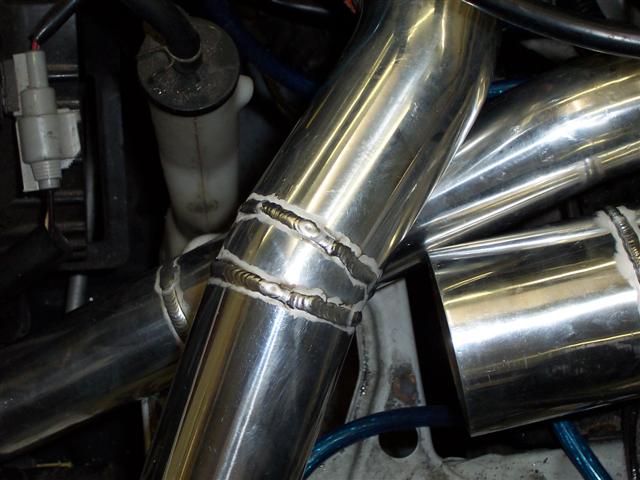

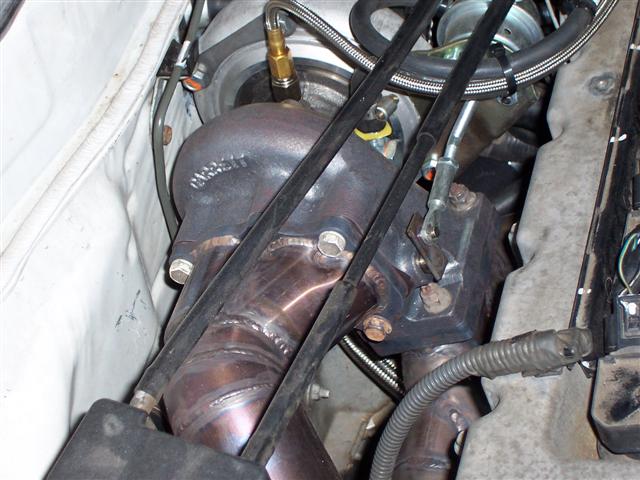

    WAY WAY WAY WAY OVERDUE update :) This whole kit was completed like a month or two ago, I've just been so busy that I just now had a chance to post these up. I've got some more as well that I'll put up as soon as I can.

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]

    [IMG]
  27. Offline

    SaberJ2X Lurk MOAR

    Message Count:
    1,713
    Likes Received:
    7
    Trophy Points:
    398
    Location:
    Mayawest, PR
    that is just a work of art that plumbing and CAI, doesn't MAF have problems when venting boost (blow off) to atmosphere? or you got yourself covered with a map? just askin'
  28. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Very good question.

    If you look in the 3rd-to-last pic, you can see a small diameter aluminum pipe... that routes the air from the bypass valve back into the intake stream after the MAF... no problems :)

    -Doc
  29. Offline

    JspeXAE102 Well-Known Member

    Message Count:
    4,851
    Likes Received:
    15
    Trophy Points:
    588
    Location:
    群馬 日本
    those new HKS SSQVs are pretty spiffy
  30. Offline

    magnem44 The Magnificent

    Message Count:
    233
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Hinesville the greates place on the Earth, GA
    Man Doc that looks really nice., maybe once i get back i might have to bring my car by so maybe i can finish her off......
