98-02 corolla coilover sleeves

Discussion in '8th Gen' started by evelio seijas, Feb 4, 2015.

  1. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    No problem man we are always eager to help fellow gen 8 guys. I tried finding that dropzone brand but didn't see any on ebay. Check out the for sale classifieds I know Mack was selling a set just don't know how much. Think he also had a GC set as well I could be wrong.
    evelio seijas likes this.
  2. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    lol no prob
  3. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    If you need any help when putting em back together just lmk I don't mind. If you have your old bumpstops or can afford some new ones id highly recommend installing them when you're puttin it back together you won't even notice your car is lowered it will ride so good. Just need the top rubber piece of the stock one, not the dust cover.
  4. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I got the Ground Control sleeves from Mack. He had some DropZone sleeves, but Cbass has them right now.

    I don't have the dust cover anymore anyway. Did u cut any of the bumpstop or leave it all? I put new ones on when I did the install, but I cut them a little.
  5. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    yeah they don't have them on ebay anymore they r at this website http://www.madracingconcepts.com/coilovers/payments/toyota_corolla_98_02.htm
  6. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    Evelio, I would get the Ground Control kit. Everywhere I look, it seems people like them best compared to Skunk2, OBX and DropZone. You would really have a sick setup if you got some Koni yellow inserts, but their kind of a pain to install. It would be like you have a coilover setup, but if your gunna go that route you might as well spend a couple extra hundred dollars and just get coilovers. If you get the yellows, I would get the Ground Control kit because they let you choose your spring rates. I heard from a reliable resource that the Koni Orange struts have the exact same internals as Koni yellow except they are set to full-soft.
  7. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Ohh ok I gotcha

    And my stock bumpstops weren't reusable I bought new ones for the front from GC. But only thing you gotta cut off the stock ones are the dust boots. Something is better than nothing that's for sure.
  8. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I just bought the strut accessory kit or whatever it's called from Napa. It came with bumpstops and dust covers.
  9. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    I have the oranges and I love them, half the price of yellows and perform amazing with the GC kit. Not to mention looks great to. My car handles so good now the difference is night and day.
  10. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    i wanna do the cheapest for now because i wanna save up for actual coilovers later on i know drop zone is not the best but i really don't have the money to spend on ground control or any of the there ones but thanks for all the help and info on all this lol I'm just starting off and its good to learn a thing or two its good everyone here helps each other instead of judging and shit like on other forums
  11. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
  12. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I also have the Orange struts. That pic I posted was something I found when I was doing my install and I was trying to figure out whether or not to use the top perch or not haha.
  13. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Lol dam, at least you know now for future reference and can help others. I almost bought the kyb struts but I got my oranges on sale for 100 dollars off sticker price so I couldn't pass that up.
  14. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
  15. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
  16. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
  17. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
  18. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE

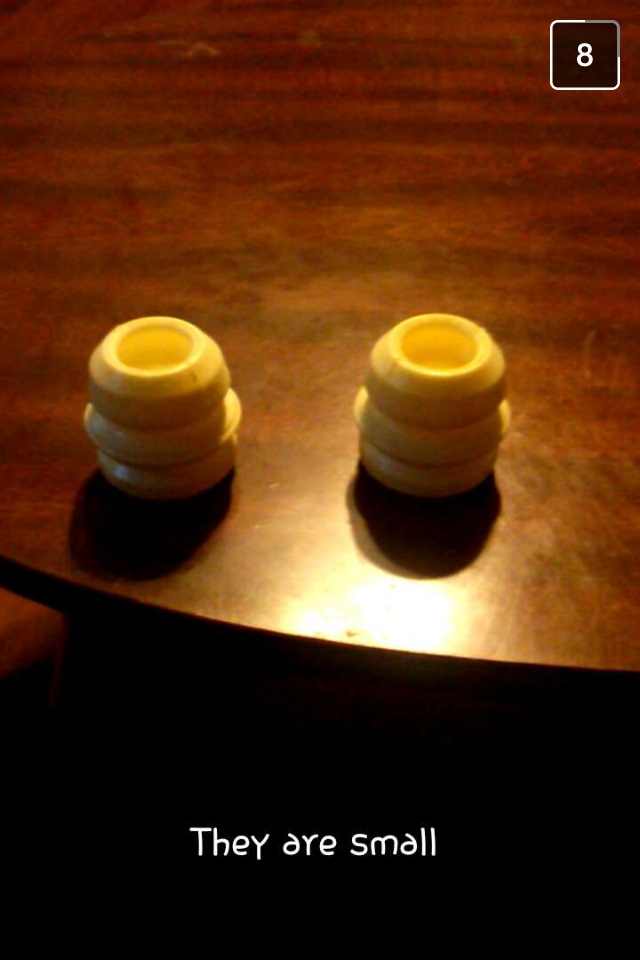

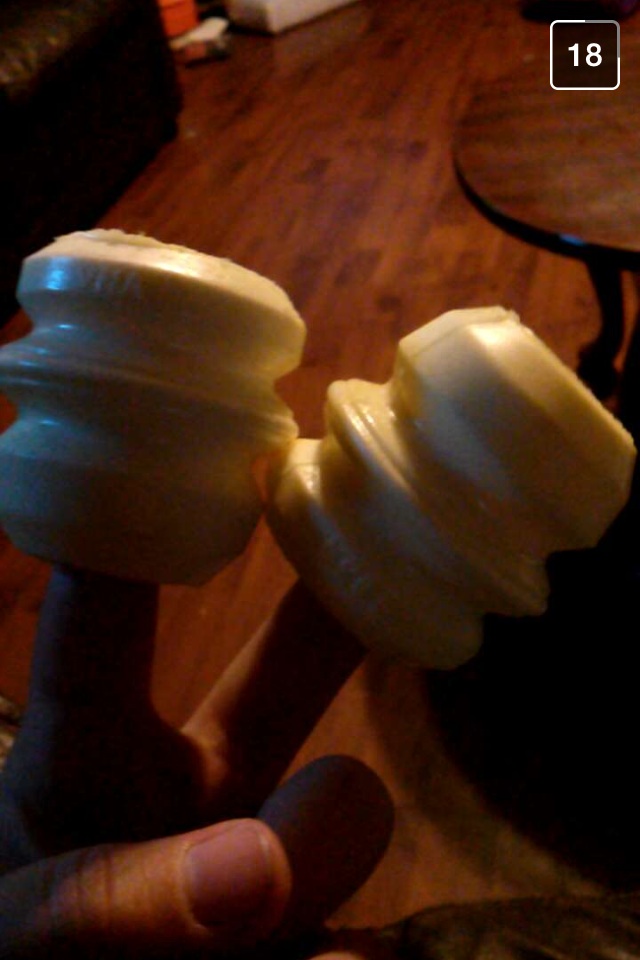

    No I just found these on ebay in case anybody needed some cheap ones I don't believe it'd be necessary to cut any off as your car won't be resting on them they just keep the piston from bottoming out. Check out my thread and you will see the GC bumpstops I bought they are pretty thick and work great didn't cut any off.
  19. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
  20. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Once you take out that oem perch and insert the bumpstops you will be able to bottom out the front coil sleeves without doing damage to the strut or compromising ride quality trust me you will be very happy with it. And it's much easier to grind that adjuster all the way down while you have the strut out rather than trying to fight it when it's installed.
  21. Offline

    phong.kong New Member

    Message Count:
    5
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Minnesota
    Vehicles:
    2001 Toyota Corolla
    that looks really good. I must ask how does it feel driving with this set up?
  22. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    Are those bumpstops squishy or like a hard plastic. I'm not grinding on mine, they already had a mold to fit in the holes and curvature of the perch, from when they were installed previously. They fit fine.
  23. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    They are a hard foam so they may compress some I haven't checked em GC recommended them specifically for the koni oranges.
  24. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    The bumpstops I have on the struts now are a soft squishy kind. I just got some at Napa, they are the hard plastic feeling ones. They look identical to yours. Now help me out here.. Look at these pics and tell me where did the washers go on your struts? Top smaller washer or bottom bigger washer?

    [IMG]

    [IMG]
  25. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Grab 4 of each to be safe and I will confirm that for you but you have the right idea.
  26. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    I don't recall the konis having two seperate lips like that but I'll check when I get home from work.
  27. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    The struts pictured are the OE struts.
  28. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Ok well I'm almost 100 percent sure it's gonna be the washers on the threads the top ones.
  29. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    178
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I robbed the bolt bin blind, I'm bound to have it halfway right when I get there.
  30. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    lol hopefully the konis only have one lip for the washer to sit on that would make it easy, but I'm pretty positive mine sat around the threads.
