8th Gen From Toronto, Canada

Discussion in 'Introduce Yourself!' started by Coca_Rolla, Feb 28, 2014.

  1. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE
    Do you only use these for HIDs? Should the hi and lo beam work as intended if you were to just use normal bulbs? Or is this the harness needed to do the conversion...
  2. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    You would use this harness if you switched to the 8.5 front end, and you wanted both the highs and lows on at the same time. It will work with halogen or HID.
  3. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE
    So for these, you still have to splice on the other connector? The harness i posted wont allow both to be on when turning on the highs because of no relay? 35$ is expensive... i assume thats for one aswell... -_-
  4. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    The one you listed will do nothing for you.

    The $35 one is $35 because it works. If you can't afford $35 to do it right, do it like Mack lol. But it will be plug and play. It will plug into the H4 connector that you have stock, and it will give you a high and low connector to plug into the HID and separate bulb. I'm not 100% if it won't require ANY modification, but you can figure it out lol.
  5. Offline

    1nicetrd Well-Known Member

    Message Count:
    855
    Likes Received:
    202
    Trophy Points:
    323
  6. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
  7. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE
    Ok, yeah 35 isnt that much, but do the oem headlights work like that aswell? Or when you hi beam, the low turns off? And if you dont use HIDs at all, seeing as i dont have projectors, it will still have the same effect?
  8. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    Yes it turns off the low beam, otherwise you wouldn't need this. If you don't use HIDs, then you don't need this harness, but it will make things 100 million times easier lol.
  9. Offline

    Milky Enlarged Member

    Message Count:
    548
    Likes Received:
    117
    Trophy Points:
    73
    i have that harness as well. both older and new one now. i can repair the wiring on the old one and sell it for a reduced price. its of no use to me now.
    Gold likes this.
  10. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    ^^^ There you go... look at that, another 8th gen owner is willing to take a hit for another!
  11. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Questions solved! This will make for easy use of high beams using the stalk but you are correct, it will turn off the lows. I'm curious as to why milky has two of these considering he hasn't done the swap lol. I remember an old post saying he wanted to though, and had a lot of the stuff.
  12. Offline

    Milky Enlarged Member

    Message Count:
    548
    Likes Received:
    117
    Trophy Points:
    73
    bixenon hids. the old harness failed due to some wires pulling out. fixable. ill fix it and sell it for cheap
  13. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    I had bixenons in my 8.0 lights with no issue, not sure???
  14. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    You need that harness for the 8.0, no matter what you do to the front end. If you have a 8.5, you'll never need the harness.
  15. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    If you have an 8.0 with the 8.0 front why would you need it
  16. Offline

    James Bullshit Police

    Moderator
    Message Count:
    15,347
    Likes Received:
    974
    Trophy Points:
    943
    Location:
    Vehicles:
    ZZE110, MA70, JZA70, GK2A, E34
  17. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    31,946
    Likes Received:
    2,838
    Trophy Points:
    61,468
    Location:
    Maryland
    Vehicles:
    Lexus IS300
    If you use HID projectors like Milky, you'd need it
  18. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Still don't get it, I had bixenons in my 8.0 lights with the stock harness and my highs worked fine.
  19. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE

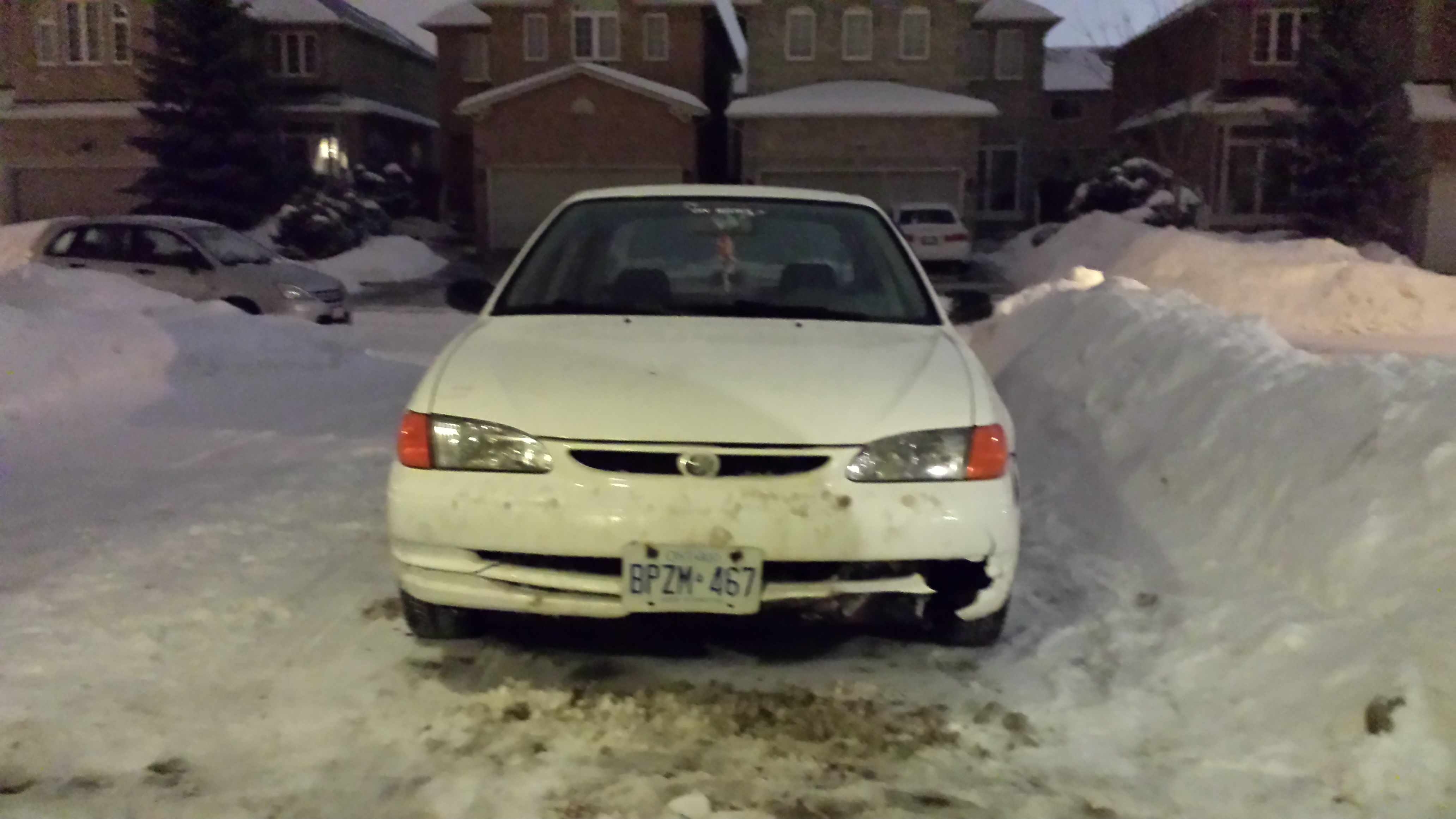

    So, im actually getting around to doing this 01 conversion. i recently lost a bumper to a snow bank. What i plan to do is buy male h4 connectors & use 9005 & 9006 headlight connectors, and connect the grounds to the h4 ground to make a harness, so that im able to swap between front ends like plug & play.

    Attached Files:

  20. Offline

    1nicetrd Well-Known Member

    Message Count:
    855
    Likes Received:
    202
    Trophy Points:
    323

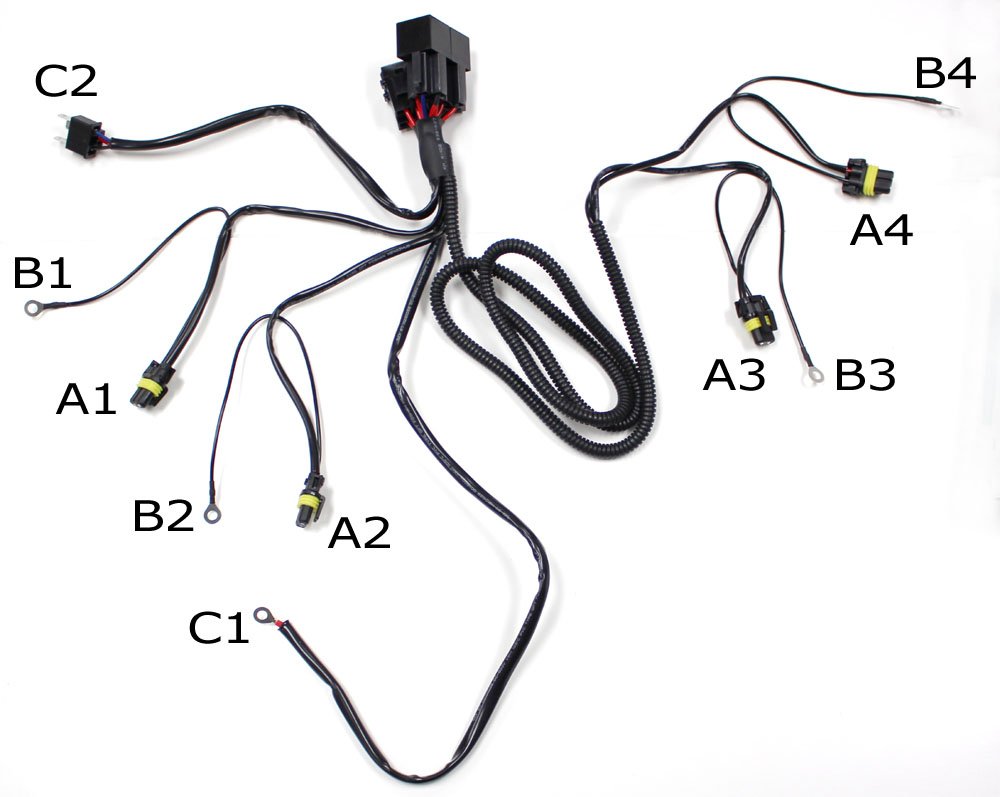

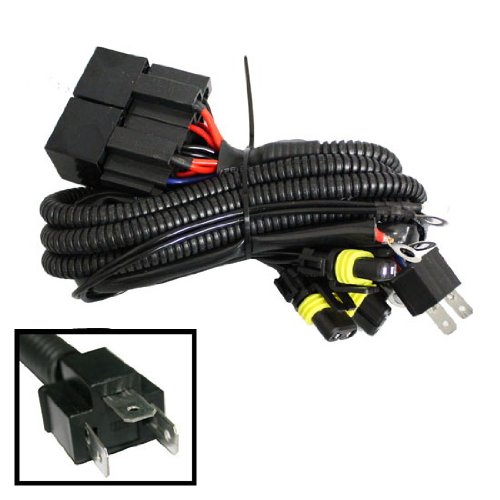

    Get a morimoto h4 harness it lets you keep the high and low on at the same time

    the harness you're gonna make will only run one set at a time

    something like this
    [IMG]

    [IMG]

    http://www.amazon.com/iJDMTOY-Conversion-Dual-Relay-Wiring-Harness/dp/B00E9HUT2O
  21. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE
    But if i wire it up the way i was going to do it... will it function like oem? Im not sure if i want the low and hi on at tthe same time. Fyi. My drls are already disabled.. Also, how would i go about installing the fog lights? Do i need to find h3 connectors from a scrapped car?
  22. Offline

    1nicetrd Well-Known Member

    Message Count:
    855
    Likes Received:
    202
    Trophy Points:
    323
    with your original plan it will be low beams or high's not both so not oem to 8.5 spec. on 01-02 they use both high and lows at the same time

    as for fogs its best to buy a harness that has a button that fit into the little coil holder on your side using the stock harness needs some parts and some re-pinning on the harness someone did a write up but is was bad and broken up

    This button [IMG]
    Coca_Rolla likes this.
  23. Offline

    Captian Well-Known Member

    Message Count:
    605
    Likes Received:
    74
    Trophy Points:
    178
    Location:
    South Africa
    Vehicles:
    Corolla 1.6 GLS
    Ahoy!
    Welcome aboard ,)
  24. Offline

    Coca_Rolla Member

    Message Count:
    48
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Toronto, Canada
    Vehicles:
    1998 Toyota Corolla CE
    Ok, so ive spoken to a few people about this today. & you're right. Most people that have done the conversion have done the wiring by just using a h4 hid harness or doing what i was going to do. But ive spoken to my local 8th gen buddy, and he said the exact same thing you did. Hes going to help me do the conversion with a relay harness like youve posted above, so that it will be oem spec. He also said he could wire in the fogs without a switch.
  25. Offline

    overdosevtec Active Member

    Message Count:
    98
    Likes Received:
    9
    Trophy Points:
    38
    Location:
    NY
    Vehicles:
    1999 Chevy Prizm
    Welcome I hate winter too sometimes
