1Nicetrd build Thread

Discussion in '8th Gen' started by 1nicetrd, Aug 13, 2015.

  1. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Spent a good amount of time dialing the alignment. Finally getting a nice linear rotation control i've been wanting with left foot braking.

    Less time tinkering with the mods for a little, just enjoying the car as is. lol

    [IMG]
    [IMG][IMG]

    Attached Files:

    • front.jpg
      File size:
      667.6 KB
      Views:
      1,215
    • rear.jpg
      File size:
      758.7 KB
      Views:
      1,138
    • side.jpg
      File size:
      521.2 KB
      Views:
      1,138
    Goldy likes this.
  2. Offline

    98Prizm Active Member

    Message Count:
    2
    Likes Received:
    0
    Trophy Points:
    33
    The pics for this are broken, how did you get the mr2 swap header to fit? What kinds of mods are required and do you still have the pics? Thanks!
  3. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Ahh sorry i don't have those pics. they're in a old hard drive :bow:
  4. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613

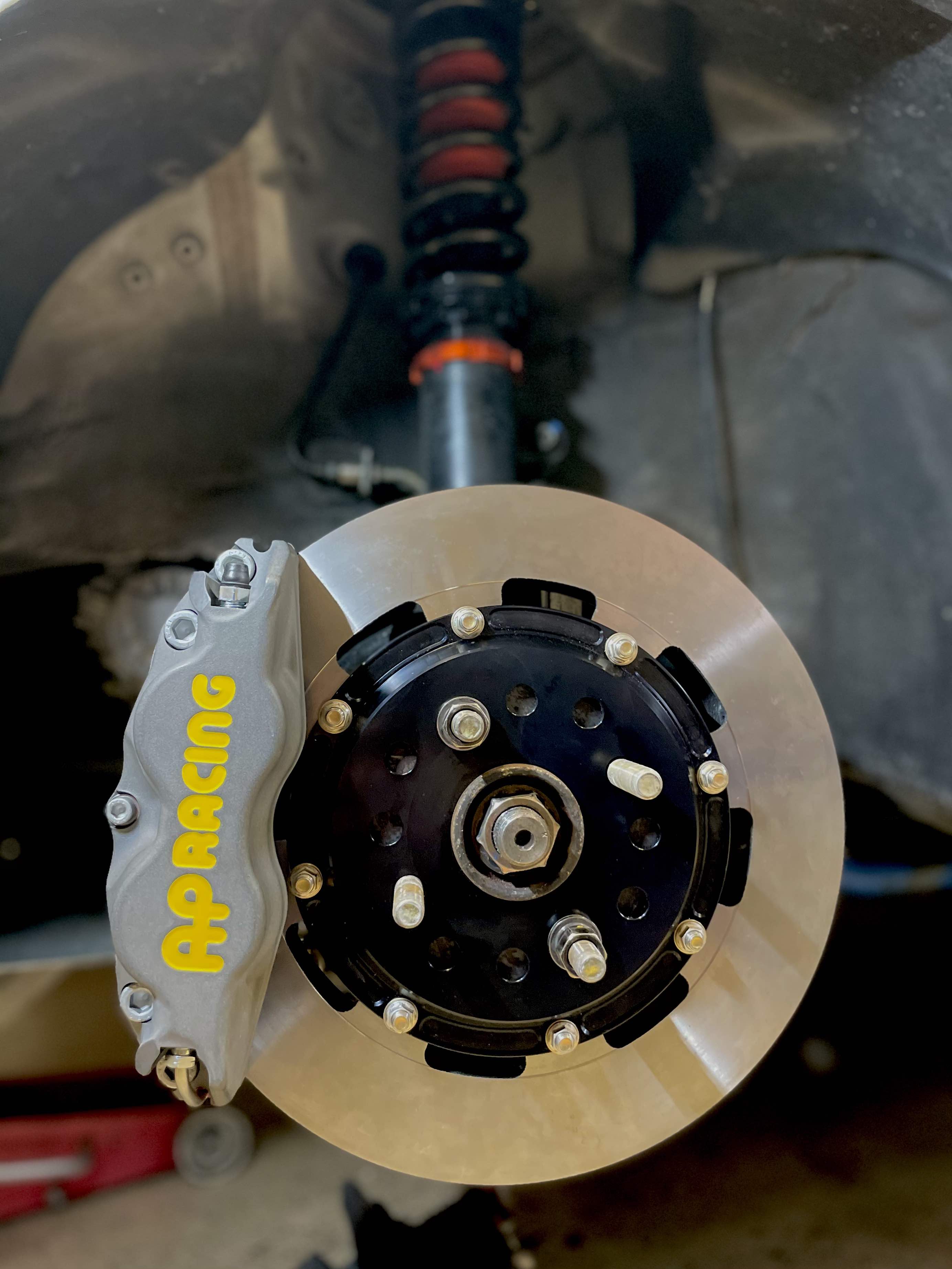

    Little Update

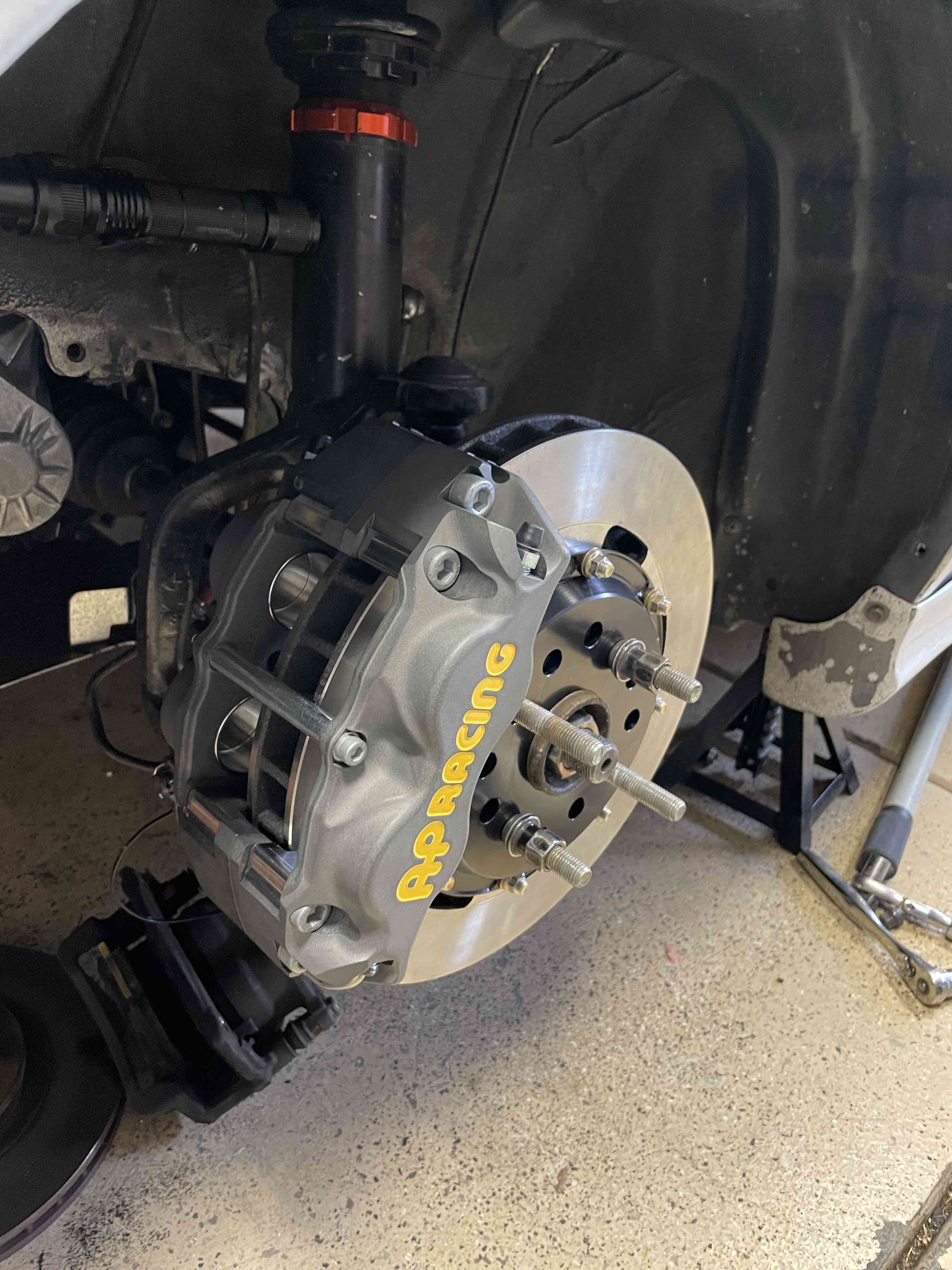

    Previously i was sporting a BBK from Fastbrakes which was good for the moment. Some reason i wanted more so i decided to step up to big leagues with a AP racing caliper and thicker rotor from a .81" to a 1.25".

    Everything is metric on this caliper, so i can forget a tool and not really stress. which was an added bonus, Plus this new kit i have designed to utilize all OEM Toyota standard bolts for ease of repair.
    [IMG]

    [IMG]

    [IMG]
    [IMG]

    Attached Files:

    • 1.jpg
      File size:
      642.3 KB
      Views:
      1,035
    • 2.jpg
      File size:
      500.8 KB
      Views:
      1,053
    • 3.jpg
      File size:
      439.8 KB
      Views:
      1,067
    • 4.jpg
      File size:
      567.7 KB
      Views:
      1,020
    crolla and Goldy like this.
  5. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    So you updated your bbk purely so you can flex on other corollas. Seems about right
    1nicetrd likes this.
  6. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    No one makes cool parts ..... sooo i gotta improvise some how ‍
  7. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    for you @crolla some slow corolla things


    Goldy likes this.
  8. Offline

    98Prizm Active Member

    Message Count:
    2
    Likes Received:
    0
    Trophy Points:
    33
    How did you solve the shift cable problem? One of the OEM 8th gen cables doesn't have enough reach to get reverse on the Matrix c60.
  9. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Well nothing new at the moment for updates, Been pretty slammed with new work.

    I am transferring over my factory oil cooler from the spare block to the current one ( little did i know some 2zz's had freeze plugs blocking off the ports on the block on USDM models) So off to Toyota it was for ordering the correct part. That project is on the back burner until i get a day off. Always know something is gonna be missing or needed.

    Went to a track day but just to hang out since my passenger tire is fried, The other track days killed them with that open diff.


    [IMG]
    [IMG]

    Attached Files:

    Goldy likes this.
  10. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    [IMG]

    [IMG]

    Attached Files:

    black_corolla, crolla and Goldy like this.
  11. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    Those are nice shots.
    1nicetrd likes this.
  12. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    So lately it's slowly chipping away at projects i need to knock out. my main one is a proper brake upgrade to hold the heat.

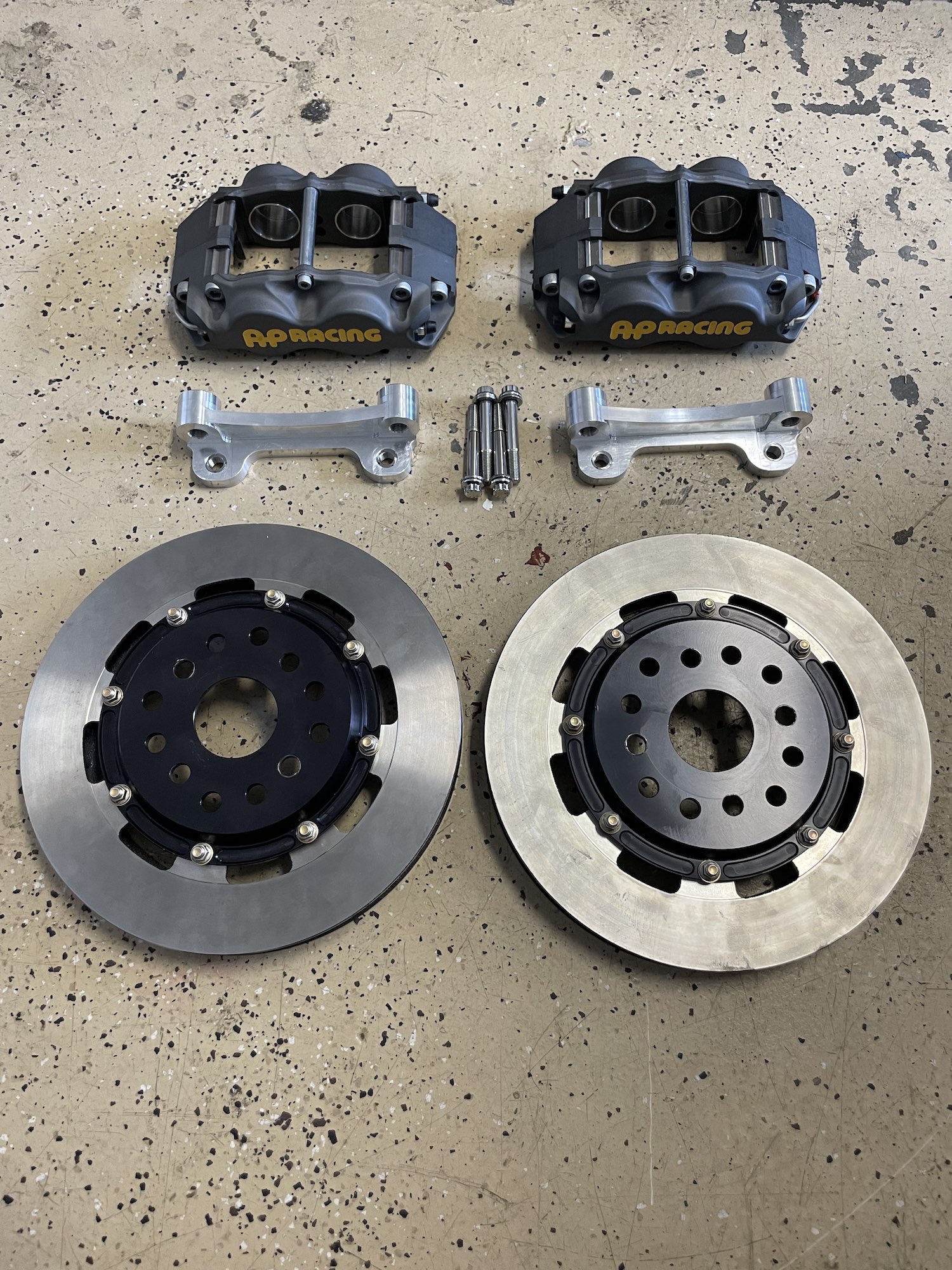

    had a friend of mine mill some brackets i designed.

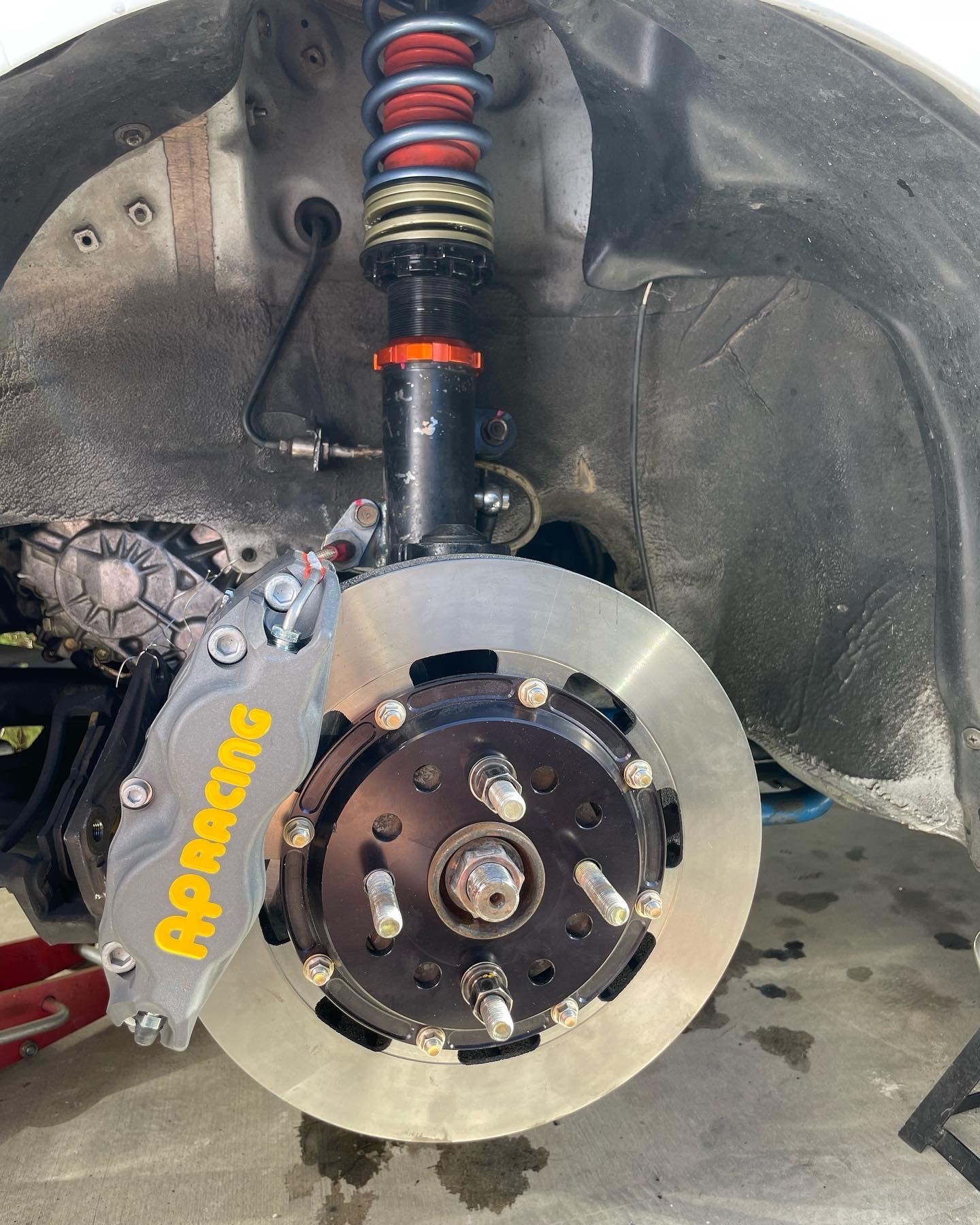

    Fully custom AP racing BBK
    11.75"x1.25 Rotors for my Superstrut setup.
    [IMG][IMG][IMG]

    Attached Files:

    engs_road and Goldy like this.
  13. Offline

    engs_road Well-Known Member

    Message Count:
    35
    Likes Received:
    42
    Trophy Points:
    78
    Location:
    Ann Arbor, MI
    Vehicles:
    2006 Scion xB
    This build thread makes me so happy. :joyful:
    1nicetrd likes this.
  14. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Been uploading some old videos

    vortex and engs_road like this.
  15. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    Yeah, it's like watching some next level evolution of what would have happened had I kept my old Rolla. It's bittersweet but he's knocking it out of the park!
    1nicetrd likes this.
  16. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Thank you @vortex im trying !

    Lately the car has been running a stock ecu and all,Patiently stocking parts to build my spare motor.
    [IMG]

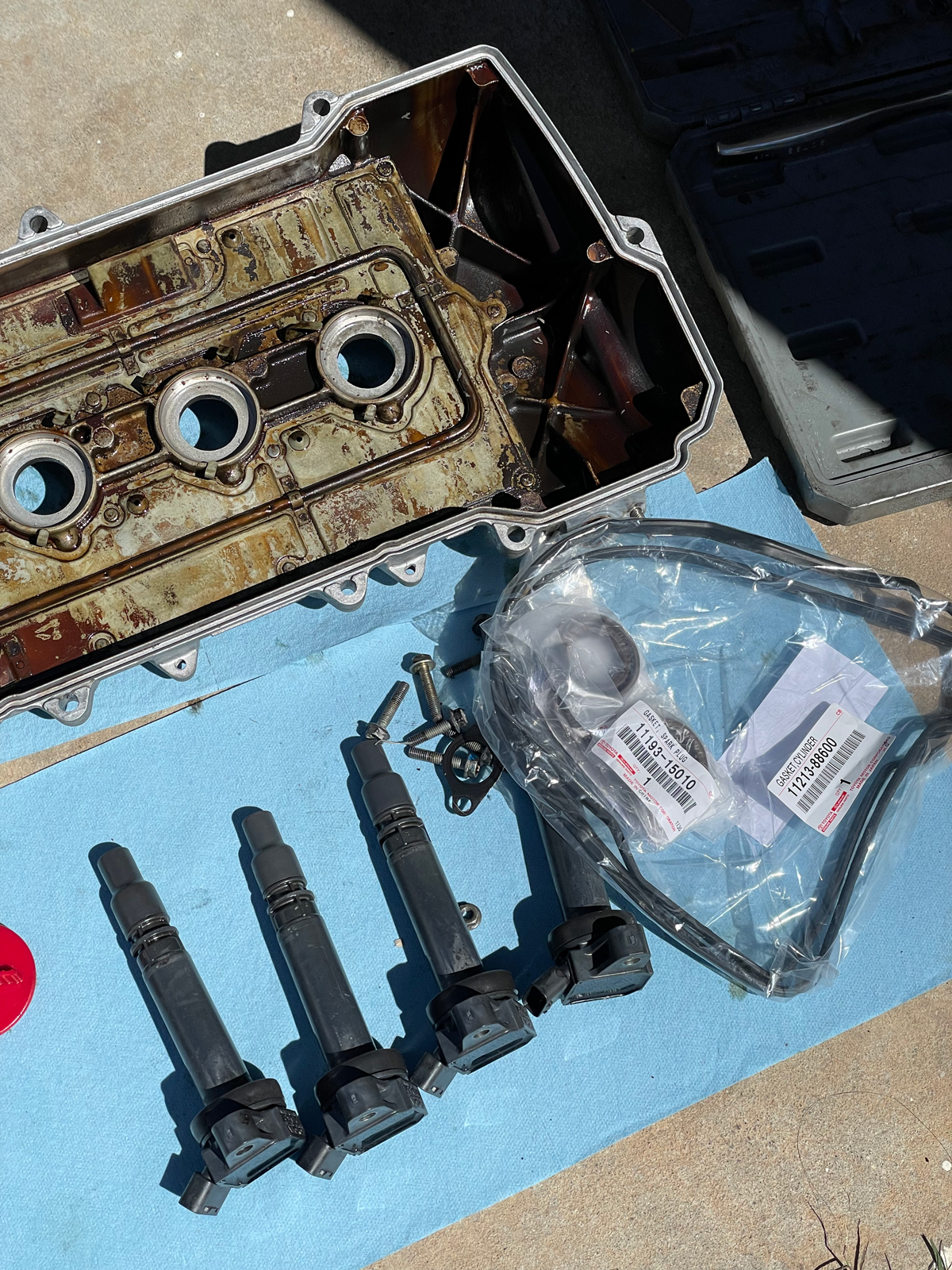

    But this motor has been a PITA with leaks, So i finally said time to fix it. Replacing the rear main seal, valve cover gasket, Spark gaskets, and finally reseal oil pan.
    (its a high milage motor i got from a rolled over XRS so forgive the gunk)
    [IMG]

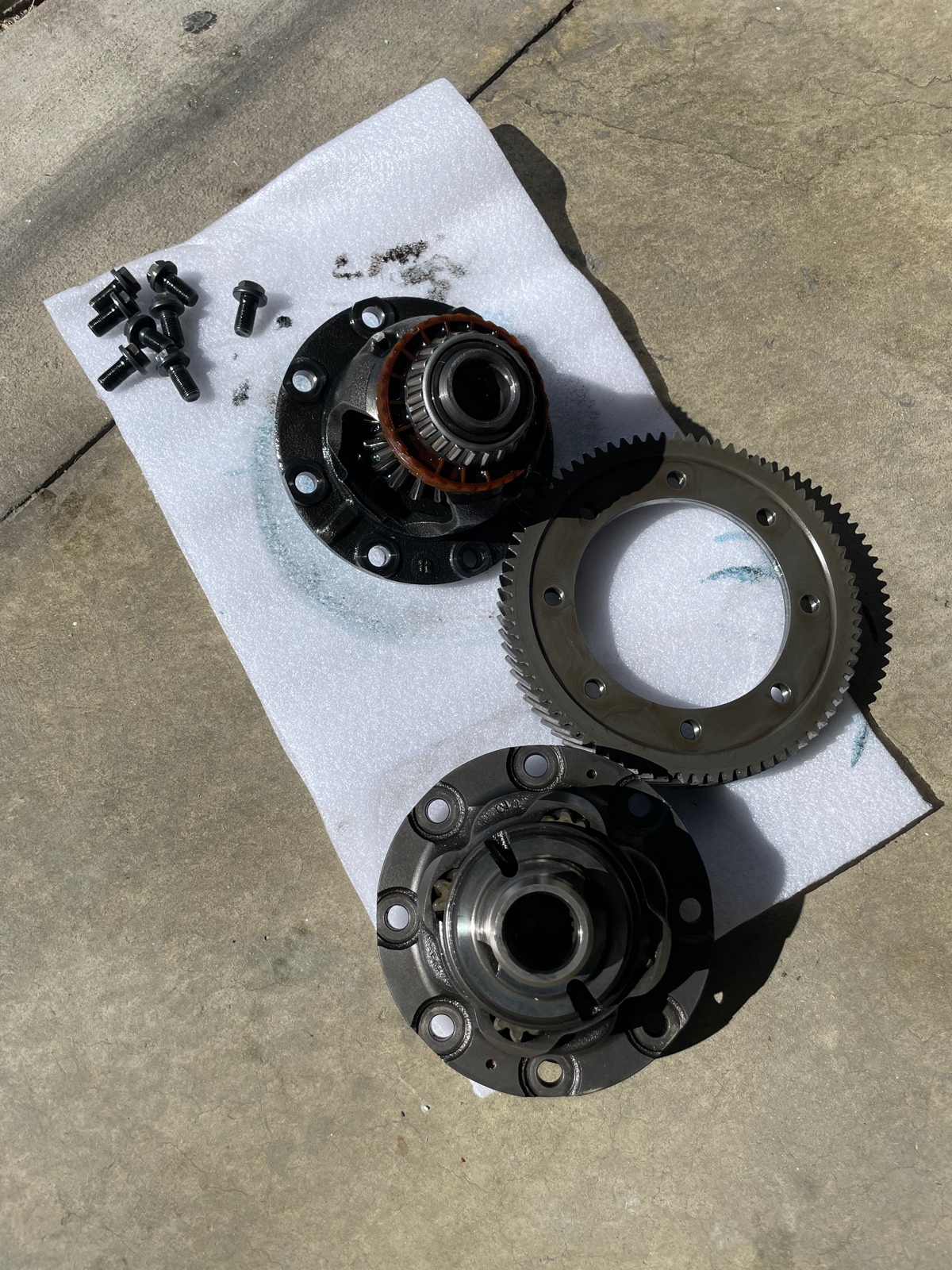

    Many of you know the rear main isn't just a "Quick fix". Soo i said its time... going with a light tune theme for the moment, and installed my helical LSD while i was in there so thats more small parts, Fresh bearings, and axle seals.

    All my complaints about how the car needed a Diff are gone and its well worth it. Really bummed we didn't get a spec like this in the states
    [IMG]

    So now current specs are
    -Stock ECU,2ZZ-GE,Xrs CARB typhoon intake.
    -Stock c65 6-speed w/ OEM helical LSD
    -superstrut with 2-way dampers
    -15x7 Work RSZ-R on Nitto Neogen 205/50/15

    Attached Files:

    engs_road and Goldy like this.
  17. Offline

    engs_road Well-Known Member

    Message Count:
    35
    Likes Received:
    42
    Trophy Points:
    78
    Location:
    Ann Arbor, MI
    Vehicles:
    2006 Scion xB
    Friends don't let friends drive on an open diff!!

    I love the theme so far, keepin' it simple and fun. :D
    1nicetrd likes this.
  18. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Well, since summer has started unlike the east coast we hide from the heat and track days.

    Got some stuff planned, if everything lines up well since work has been busy.

    in the mean time here is the beast next to a stock 8th with some goodies
    [IMG]

    Attached Files:

    Goldy likes this.
  19. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,004
    Likes Received:
    2,876
    Trophy Points:
    61,468
    That "stock" one looks ... not stock! It looks like it has the front end facelift conversion, and it looks lower than yours for some reason lol.
    1nicetrd likes this.
  20. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    I think it was, i don't like my car too low performance and comfort >
  21. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,004
    Likes Received:
    2,876
    Trophy Points:
    61,468
    Same. I tried out the slammed thing, and it was cool and all, but not practical or my style. Both cars look good though :)
  22. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    So no real update's. A lot of parts stacking for the motor build.

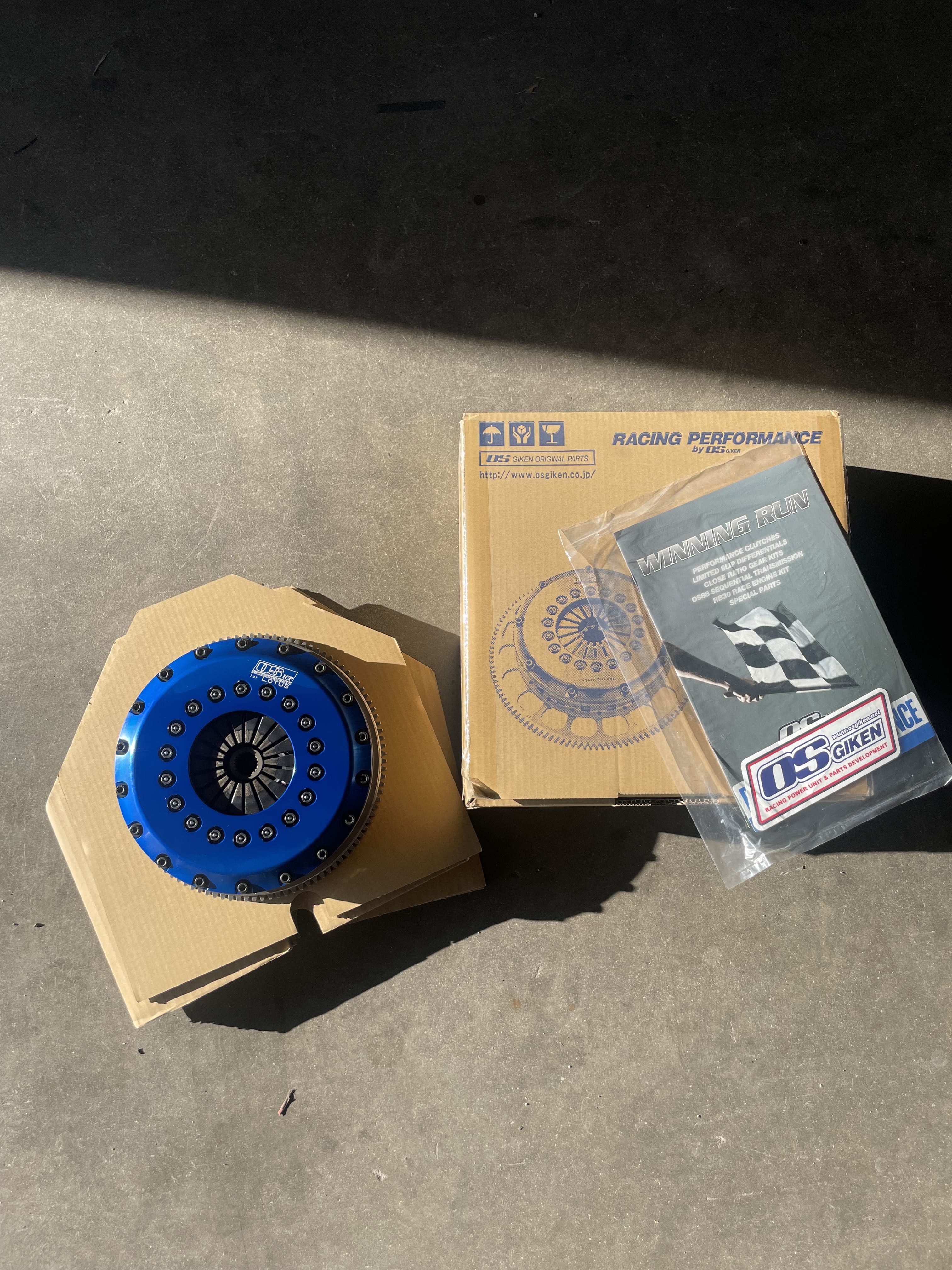

    Recent addition is a OS Giken STR clutch is a single disc sprung clutch, that is more suited for race and daily use without a heavy pedal andddd can hold the torque.

    The pressure plates on the ACT HDSS clutches for some reason failed in the diaphragm after about a year of use maybe 6 track days and some daily driving on a stock 2ZZ.


    [IMG][IMG]

    Attached Files:

    Goldy likes this.
  23. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    That's a nice clutch. Let me go and take that off your hands.
    1nicetrd likes this.
  24. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    You wishhh lol its the best part thats never gonna be seen
  25. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    Long overdue update:

    So the can is finally at a point where i dont want to touch anything..... for now

    Currently sitting :
    -Yaris EPAS fully working thanks to my LINK ECU sending CANBUS messages.
    -Superstrut really took away all my complaints in the handling department plus my coilovers from Riaction USA. They have been on for a while but i am finally getting closer to fine tuning the cars balance.
    -Bone stock ECU (for now) I've found the the ECU ending in 83 kept the car in a good power band on track.
    -Technically stock brakes since its the AE111 Brakes all around but its a lot bigger with F/255mm twin pot caliper and rear 266mm disc
    -OEM ABS retrofitted into the car seems to be really non intrusive for extra oem-ness i used the brake prop valve from a ae111
    -AEM typhoon CARB XRS intake
    -15x8 Rays Gramlight 57CR on Nankang CR1 225/45/15 all around
    -Factory helical LSD

    My takeaway is if this car came exactly like this from factory mannn people would of flocked to it. Right now i dont want to modify the car any more and just get used to showing up and driving. Still building a motor for the supercharger on the side so soon it will be a VERRRY scary car lol
    [IMG]

    Attached Files:

    Goldy likes this.
  26. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613
    New discovery!

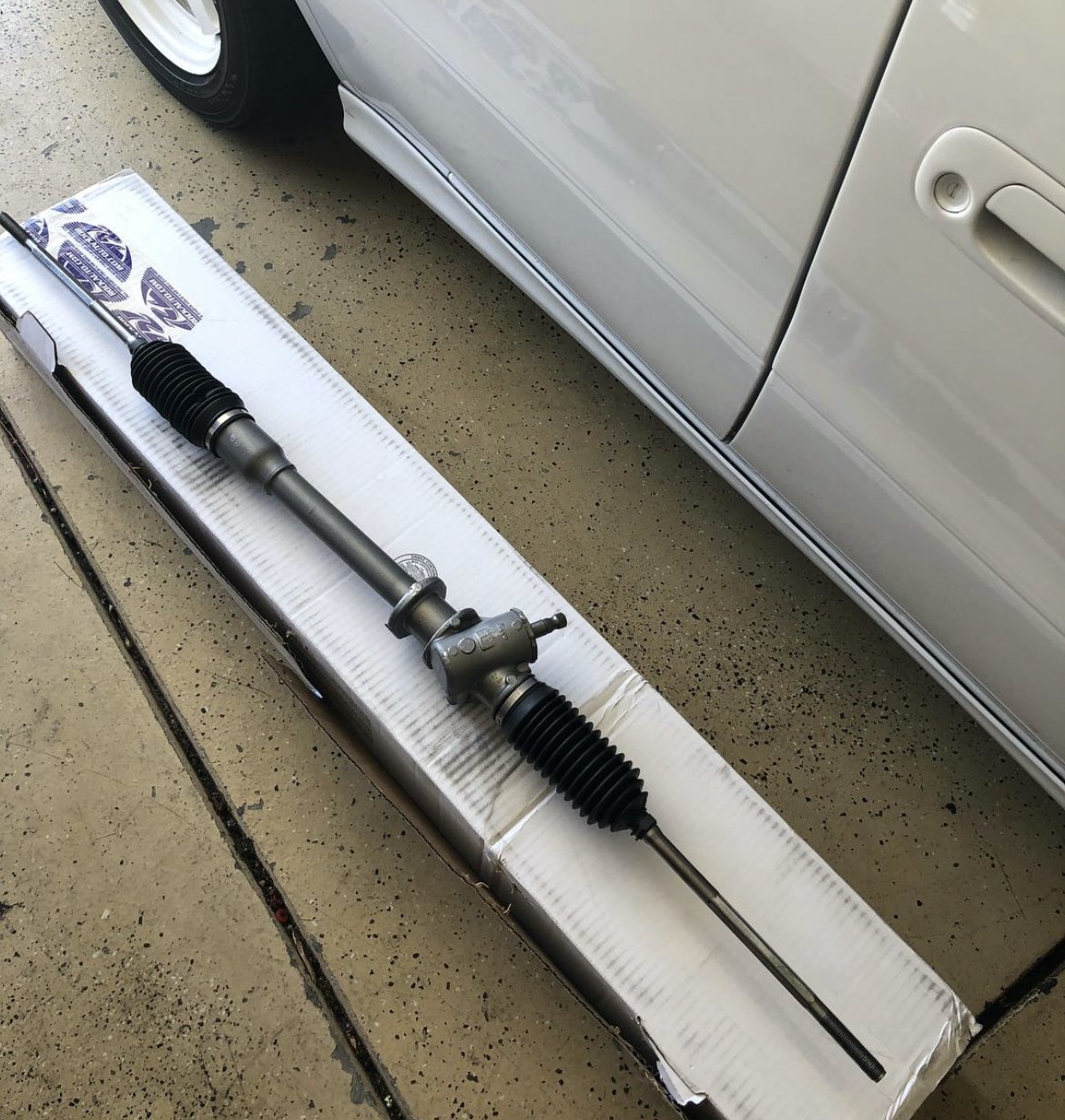

    So I have been running a manual steering rack out of a AE101(7th gen,1997) corolla for a while now with yaris Electric power assisted steering (EPAS). The combo works pretty good daily driving, but on track I noticed I have to input a bit more angle which left me feeling like something was off. I was digging thru the manuals for both corollas, turns out i went a bit backwards by going to a manual rack. Stock 8th gens steering have a ratio of 18:1 3.5, turns lock to lock, while the manual rack out of the 7th has a lovely 22:1, 4 turns lock to lock. Problem found after maybe about 2 years of driving.
    (OE 7th Gen Manaul Rack )
    [IMG]

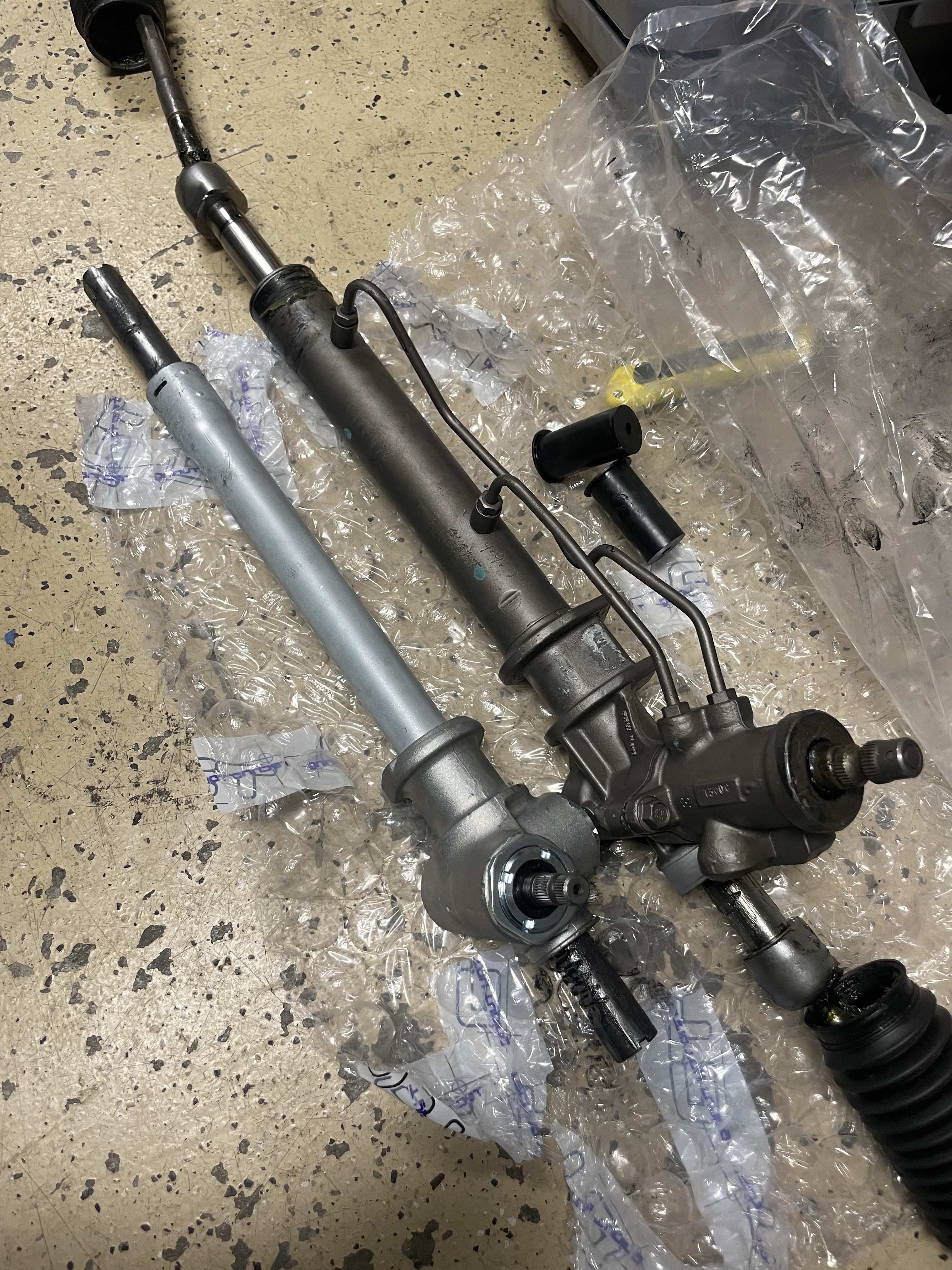

    Off to the Toyota parts bin! Coming out with the manual steering rack for a AE86, even better since that car was heavily supported in racing. There was 2 upgrades available, A FLO's quick rack or Quaife quick steering rack. So I took some measurements and ordered a FLOs rack from T3 and once it arrived it measured up thanks to @crolla .
    (FLO's rack on the bottom, 8th Gen OE P/S Rack) Both racks measure 22" wide which is good since the 7th gen rack is 20's requiring longer inner tie rods
    [IMG]
    This was a one step back, 2 steps forwards moment. While i don't have final steering ratio numbers, I do know its now a 2.5 turn lock to lock wheel.

    Attached Files:

    crolla and Goldy like this.
  27. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    Ohh can't wait to see how this works out.
  28. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613

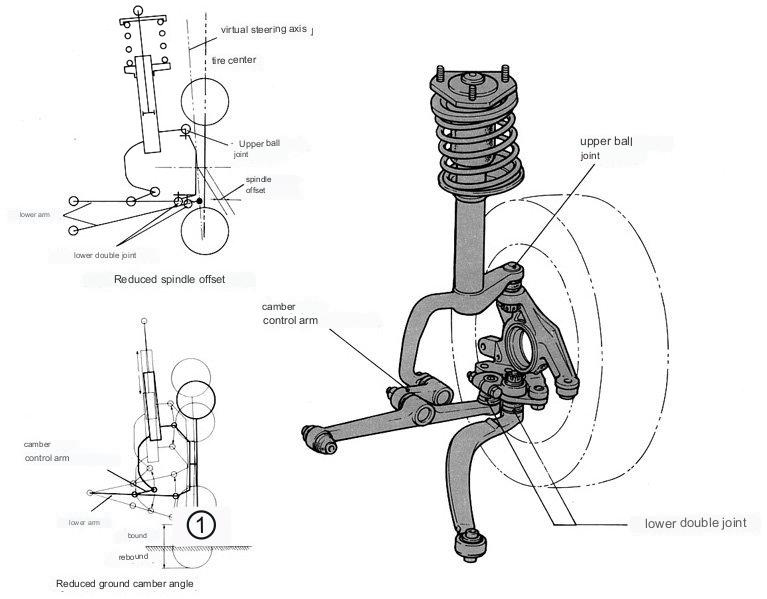

    Figure i would let this live here....
    Thank you modern day technology, For translating old files
    [IMG]

    Attached Files:

    crolla and engs_road like this.
  29. Offline

    1nicetrd Well-Known Member

    Message Count:
    933
    Likes Received:
    303
    Trophy Points:
    613

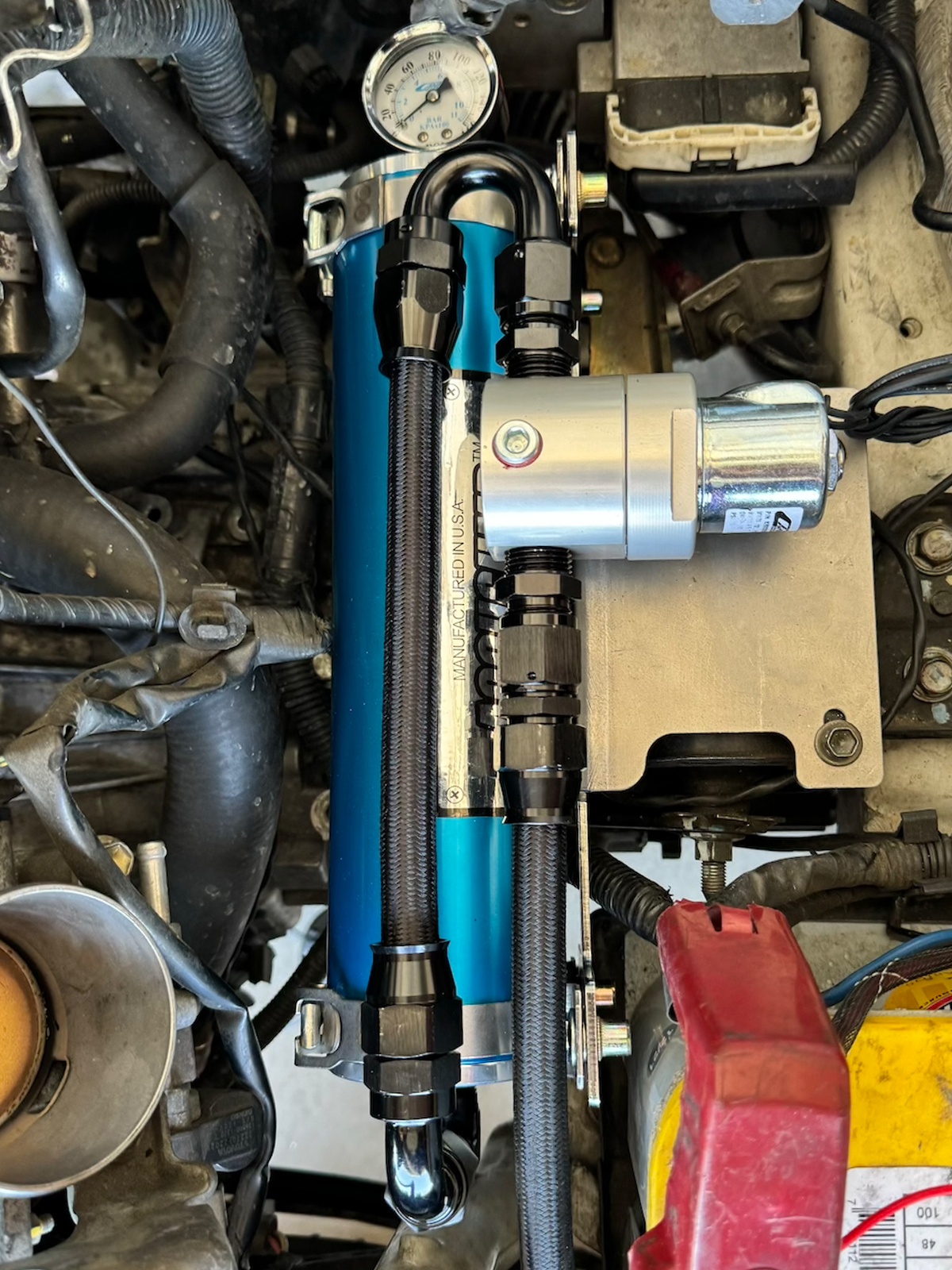

    Little update, I have decided to go the Accusump route. This offered a little neat feature vs the Moroso oil pan, like a Pre-oiled startup.

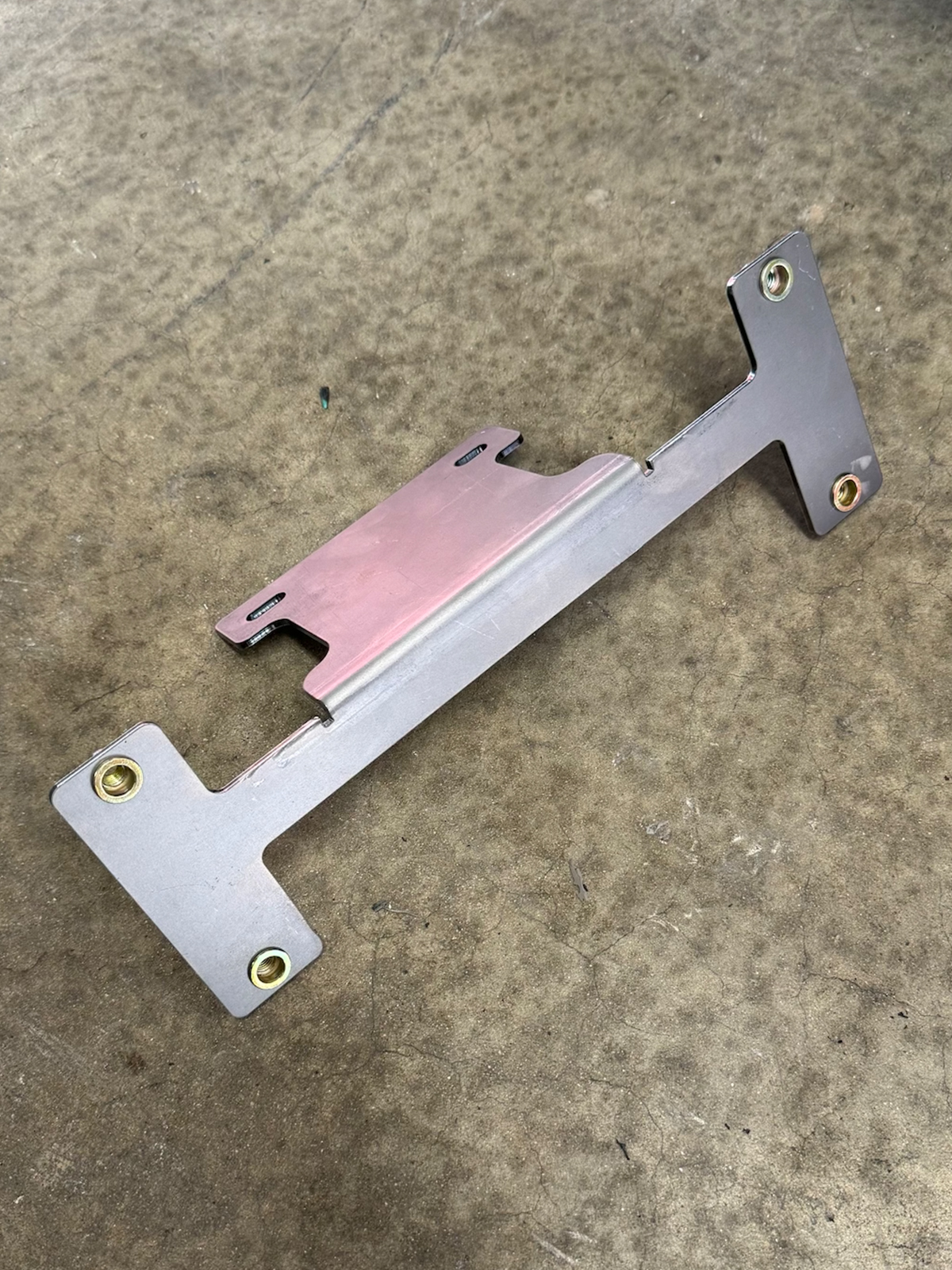

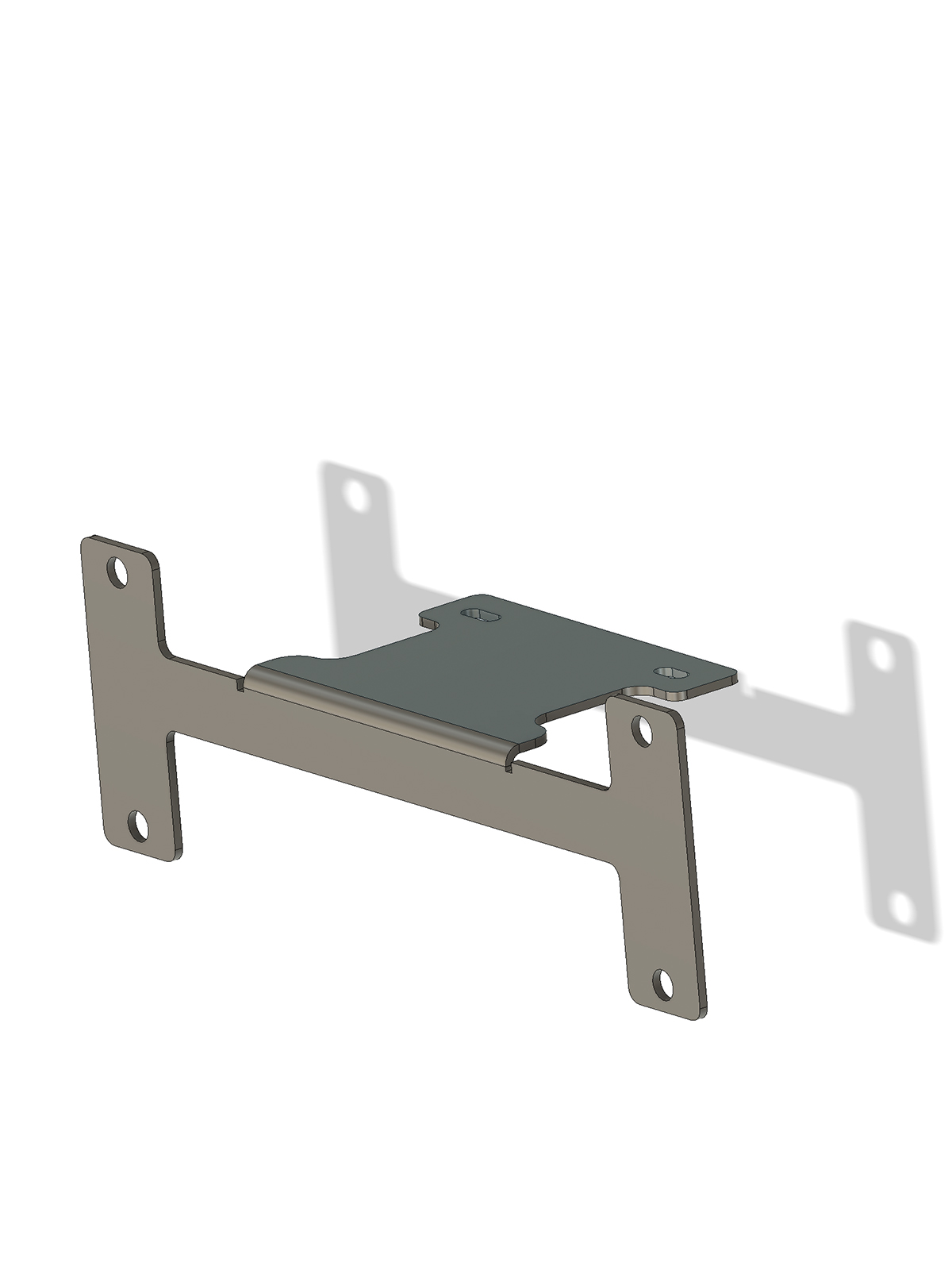

    Since my CAD skills are growing, I've whip up a special mounting bracket. The clearances are very pleasing for the first attempt. but there are a few little things i want to tweak.
    [IMG][IMG][IMG][IMG][IMG]

    Attached Files:

    crolla, MattH and Goldy like this.
  30. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    How did you run the lines?
