1Nicetrd build Thread

Discussion in '8th Gen' started by 1nicetrd, Aug 13, 2015.

  1. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    Well guys finally decide to try a build.

    So a little background

    i have/Had a 98 LE i have been deciding to get rid of and have been on the fence since january, i was on the hunt for a 01 white S with sunroof and a 5 speed... long story short,it's like finding a unicorn for a good condition one... so my solution just make one yourself.

    Heres is what i have going
    Lexus Ultra White Repaint
    TRD 7 Piece Body Kit
    TRD japan Wheels
    TRD strut bar
    TRD quick Shifter
    TRD Sports Muffler
    Brand new Weather seals and trims
    Oem LSD
    Ae111 rear brake conversion W/ABS
    Ae111 Superstrut conversion
    Poly Bushings
    Hotchkis Swaybars
    Hid Retrofit

    Whats next to do
    Swap out all the old wire harness's with 01 harness (preferably with ABS)
    2ZZ Swap with 3.9:1 Final Drive

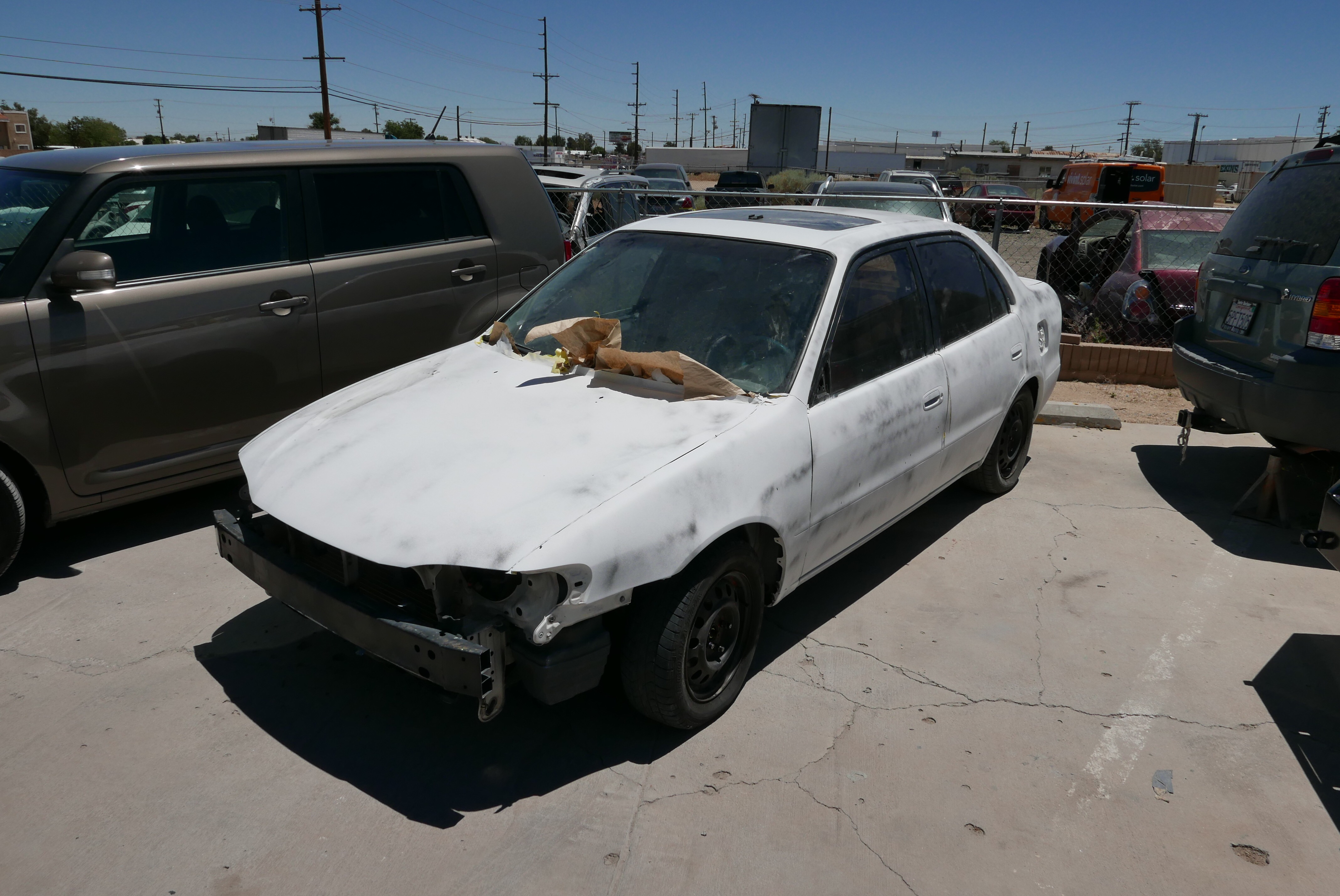

    Before
    [IMG]

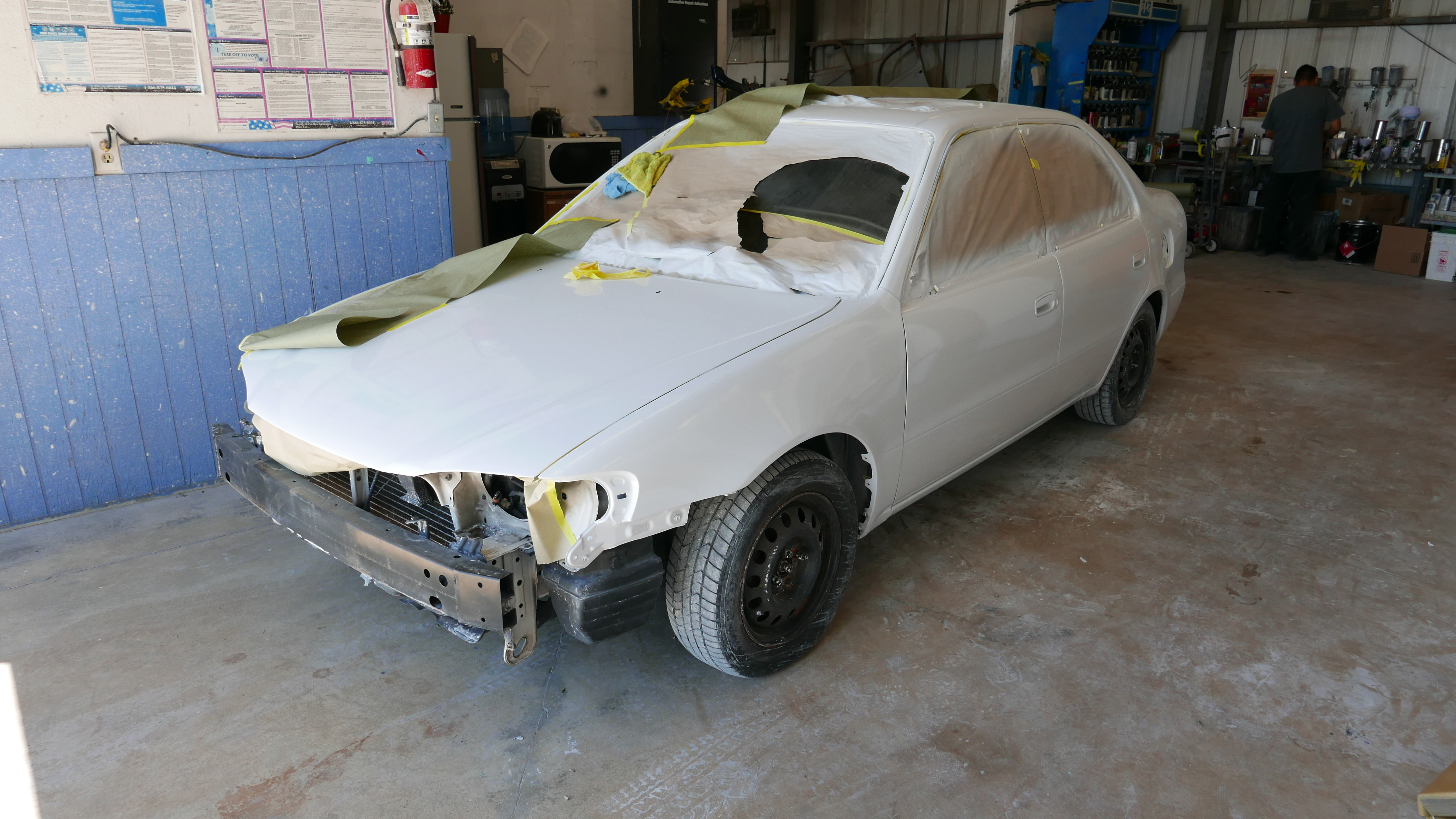

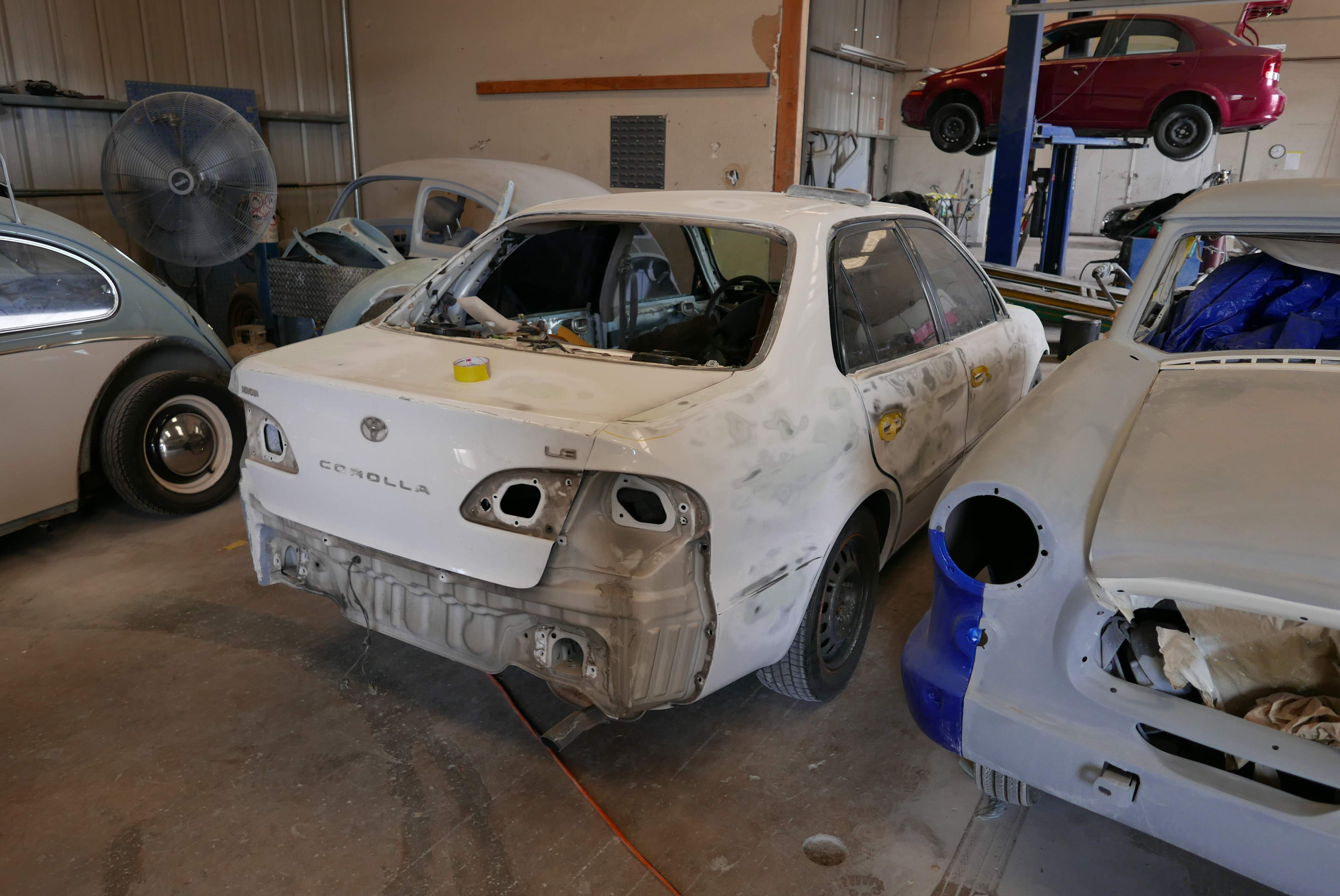

    So my build began. but first a trip to the paint shop for a little TLC.

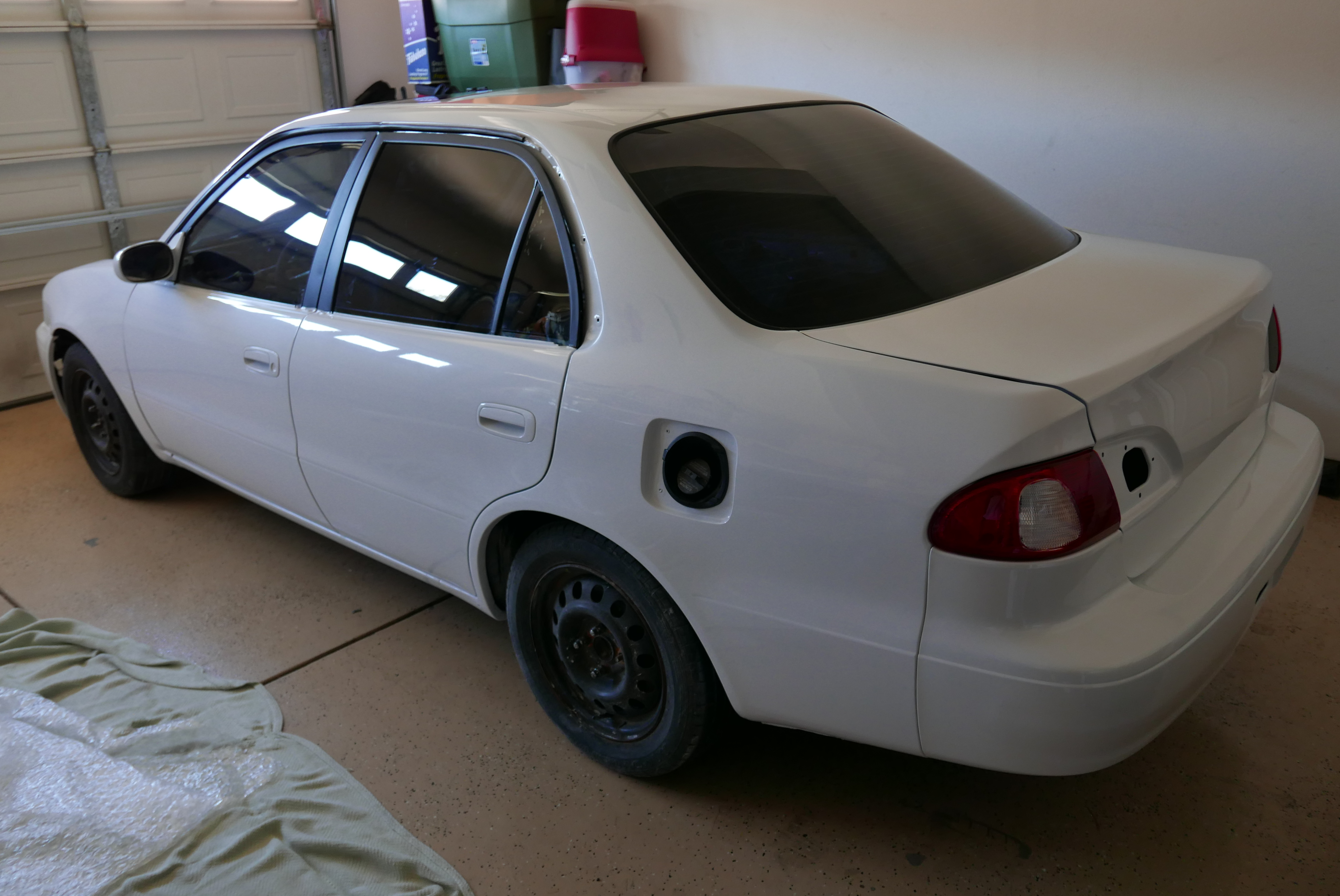

    The car is now a Lexus Ultra white. brighter than toyota super white and also has a slight pearl to it

    L1120020.JPG L1140495.JPG
    [IMG]

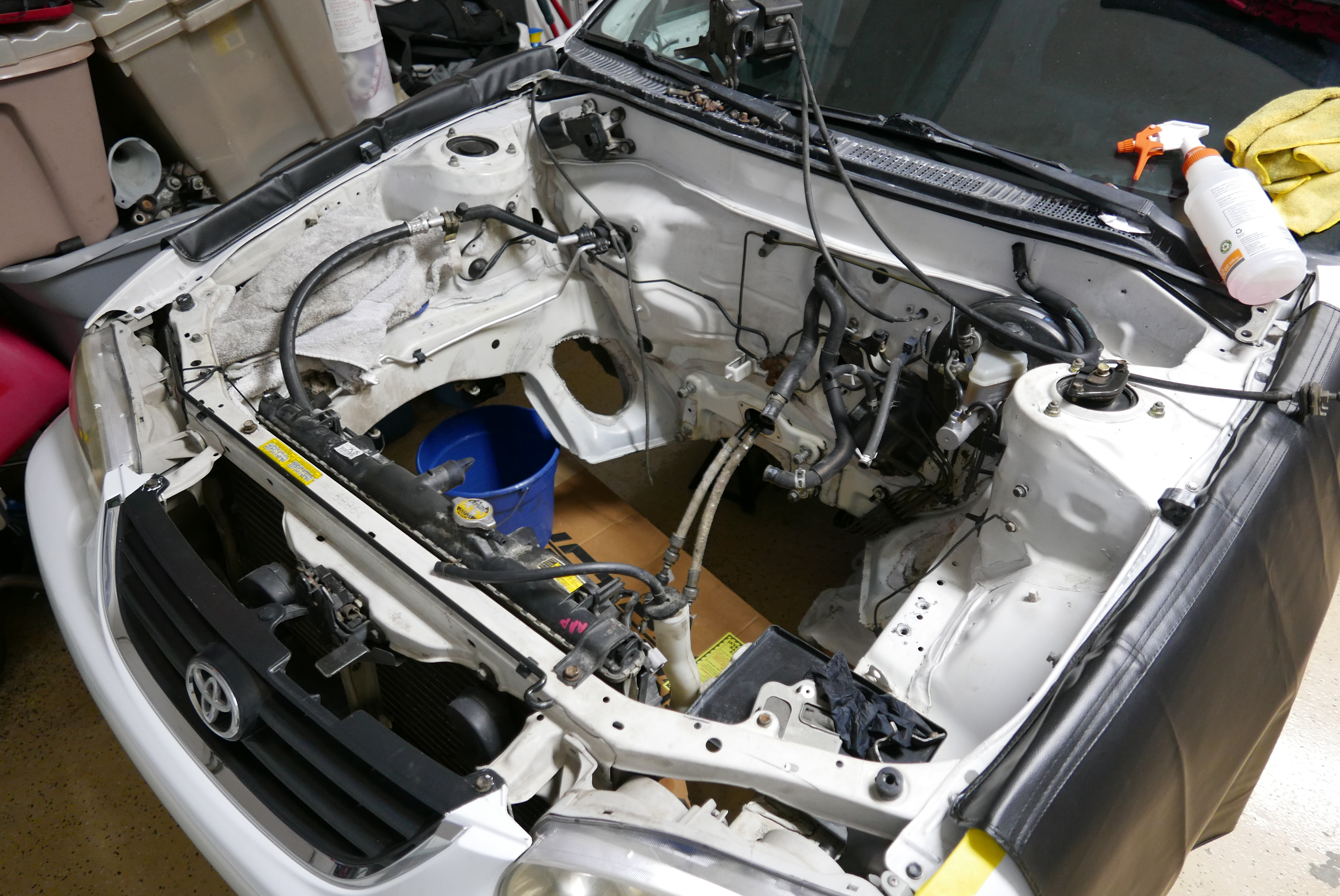

    Now the real fun has started. I had to clean up all the gunk and dust that the car has collected over the years pressure washer and degreaser were my best friends

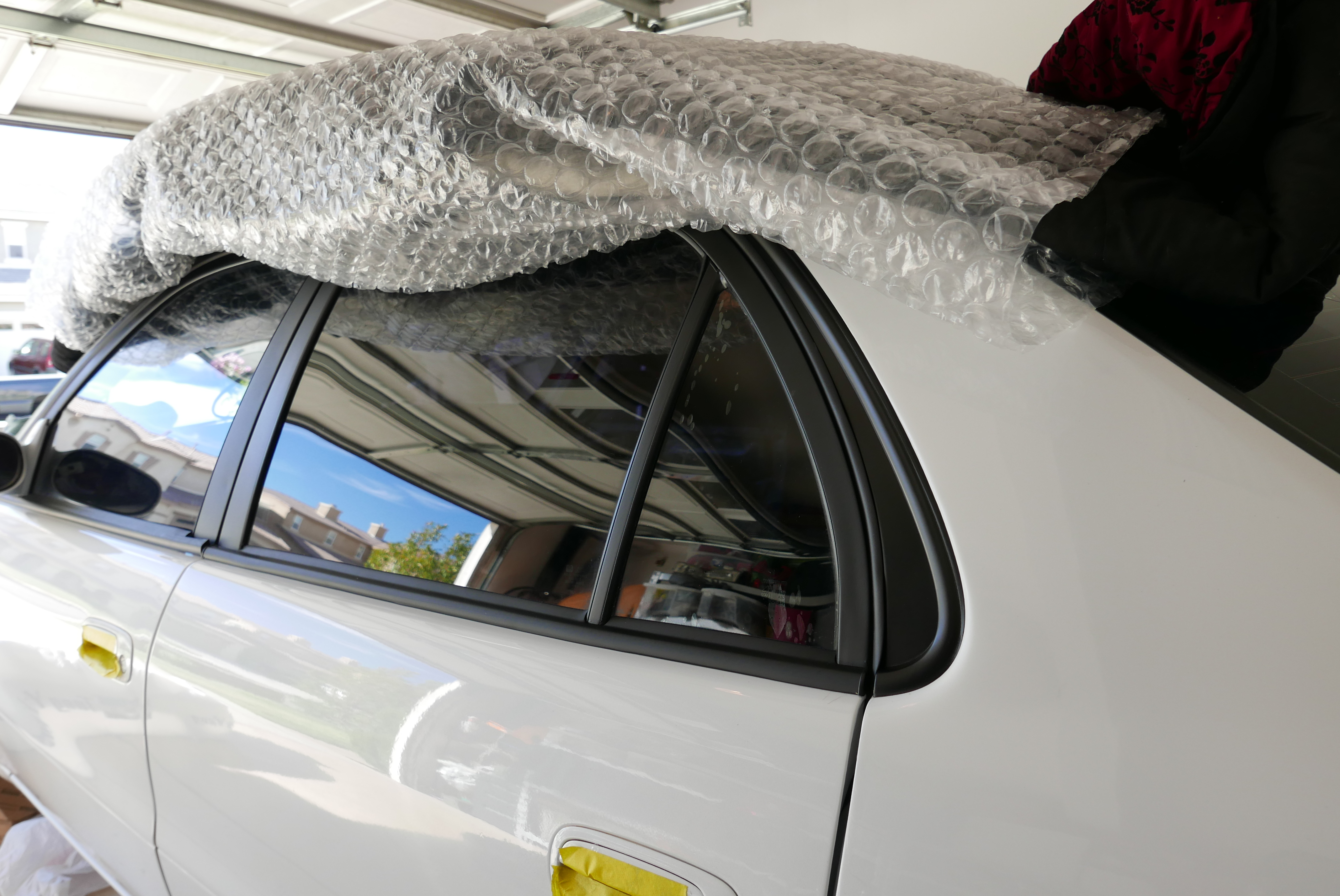

    Installed all new trim and weather seals.. Front trims needs need clips
    Painted the crossmember and the lateral arms also installed poly bushings into the rear arms and installed my hotchkis rears.

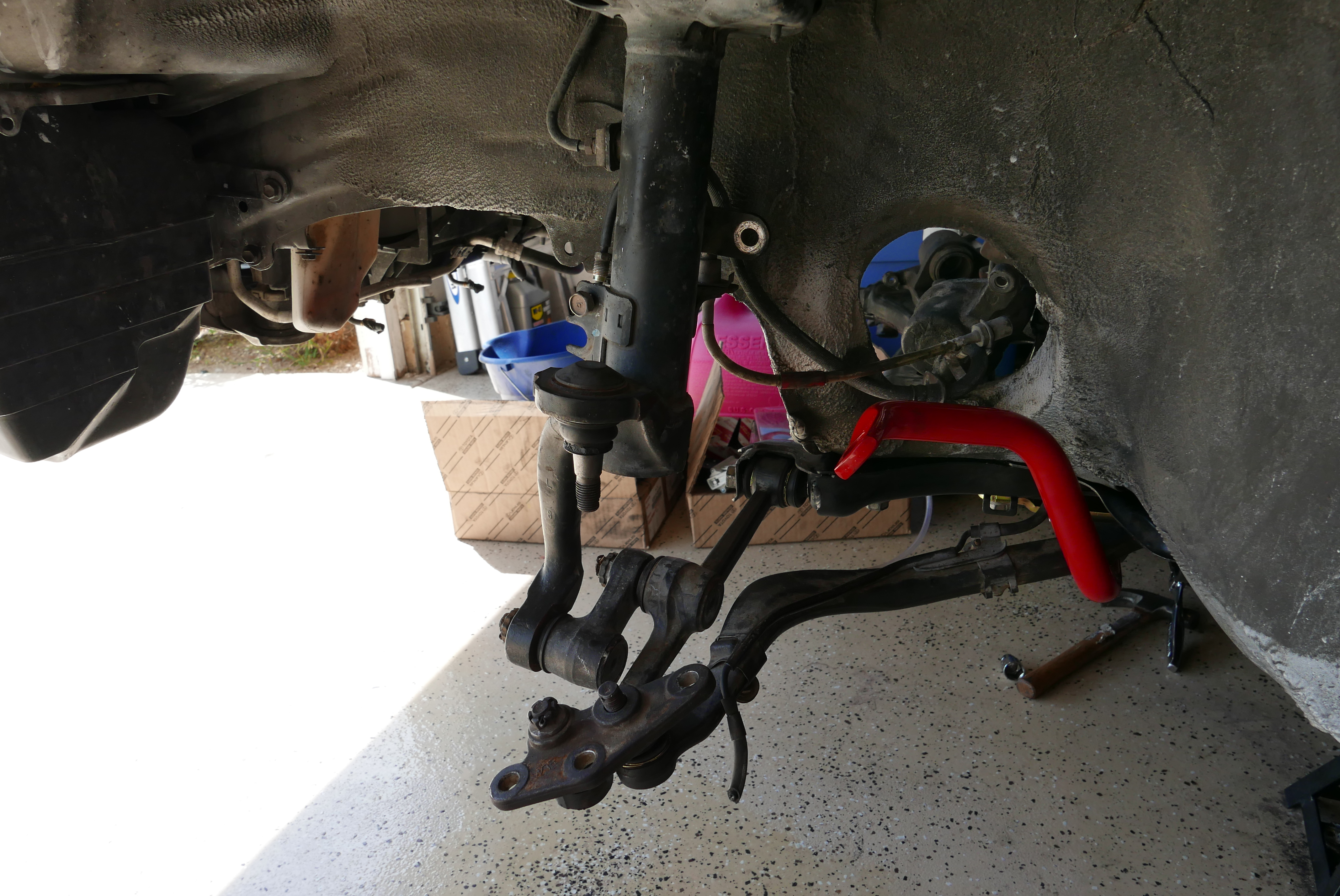

    Also i am going from a sport daily so i decided i wanted to give the Superstrut suspension a try sadly my hotchkis sway in the front won't fit here

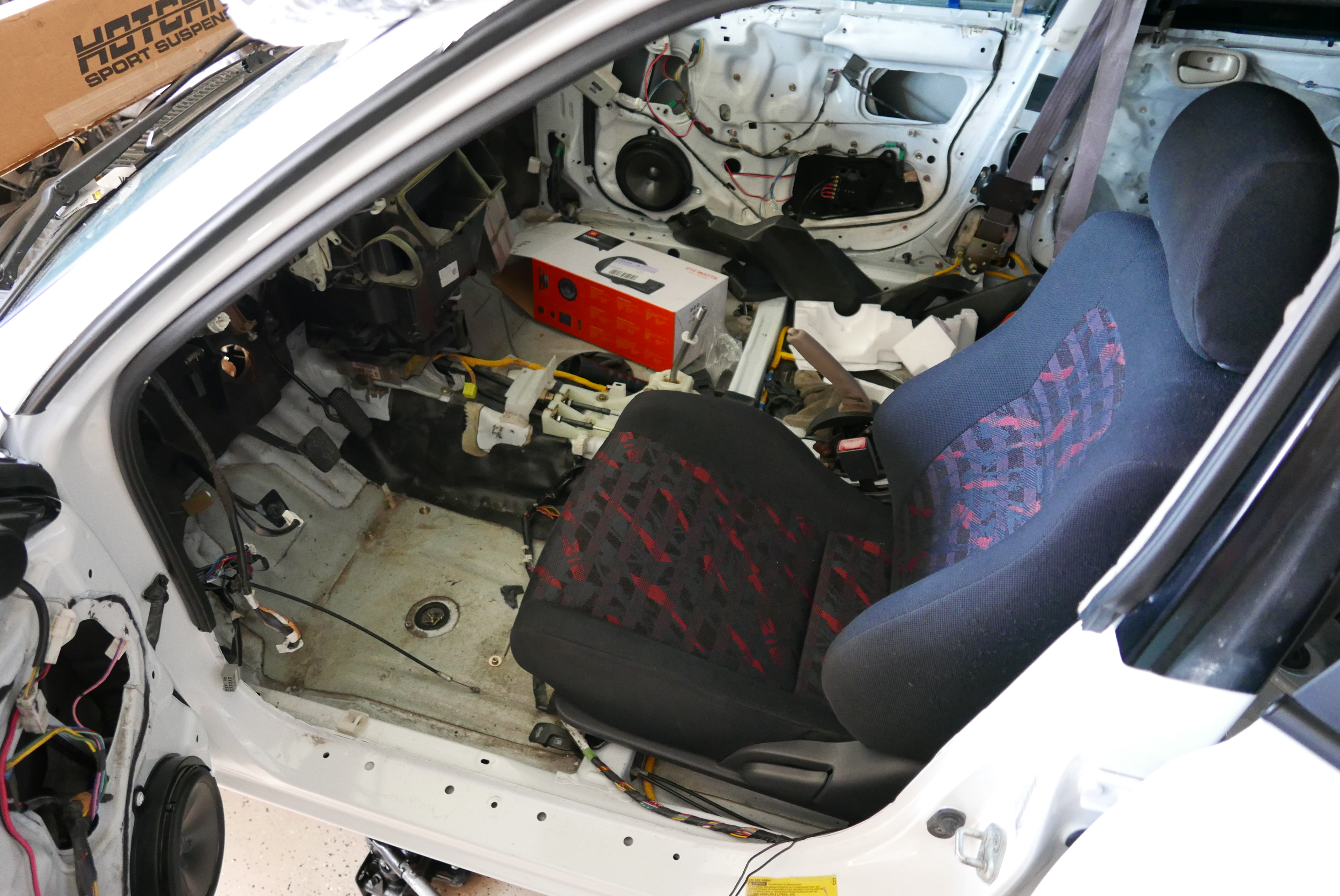

    Next was to install the new speakers... got way to eager to test fit my ae111 seats also lol
    Clutch,brake pedal,and shifter and linkage were all installed also.
    Pulled the HVAC out to clean it and also install the jdm cabin filter
    Finally got to finalizing the trimming from the back end to the front doors
  2. Offline

    Marriedtodanger Uggs for thugs

    Message Count:
    33
    Likes Received:
    5
    Trophy Points:
    8
    Location:
    Ballerado
    Vehicles:
    8thgen Corolla
    Hell yeah!!!!
    1nicetrd likes this.
  3. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    That 2zz could use an ELP CAI
  4. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    you mean the Supercharged 2zz =)
  5. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    Thats good man, are you going with the Greddy kit?
  6. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    so change in plans the supercharger i was gonna buy is or might not happen i was caught in the middle of a bidding war.
  7. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    That sucks, what you gonna do now? Have you picked up the swap as yet? Also what are you going to do about the front sway bar
  8. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    as of right now going to just get over it lol.I havent even got to the motor quite yet but i have a deposit on it !, the sway bar im currently weighing my options because i found a place that will make it ... however it will cost 600 and to top it off the guy i bought the superstrut from messed up a critical ball joint thread and i can repair it. so i might have to replace it but thats 187 a bar -_- and i have yet to attempt to think about coilovers
  9. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Race car problems lol
    1nicetrd likes this.
  10. Offline

    gramos0718 New Member

    Message Count:
    20
    Likes Received:
    0
    Trophy Points:
    3
    Super Clean
  11. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    So sites finally back up here's a update

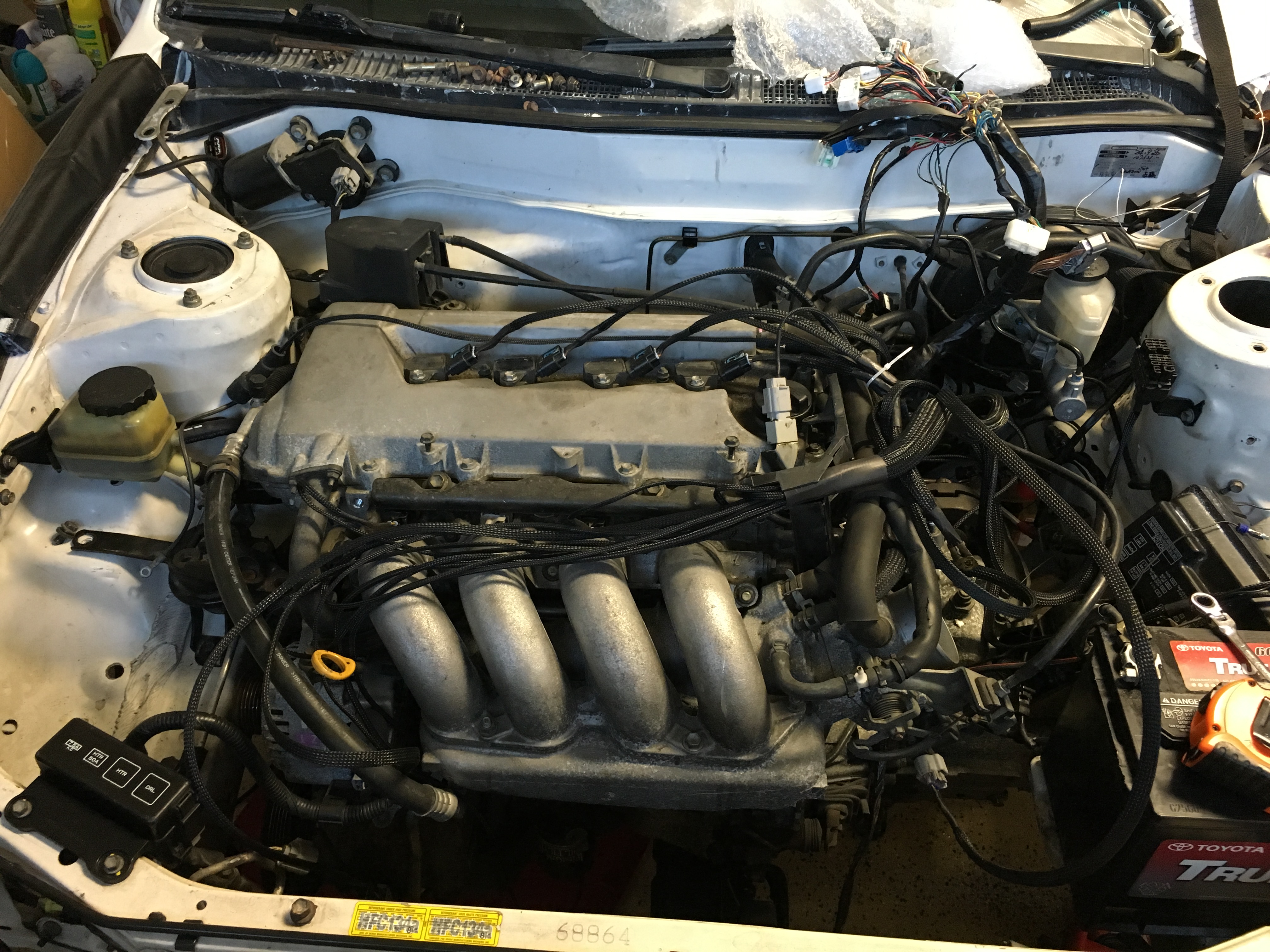

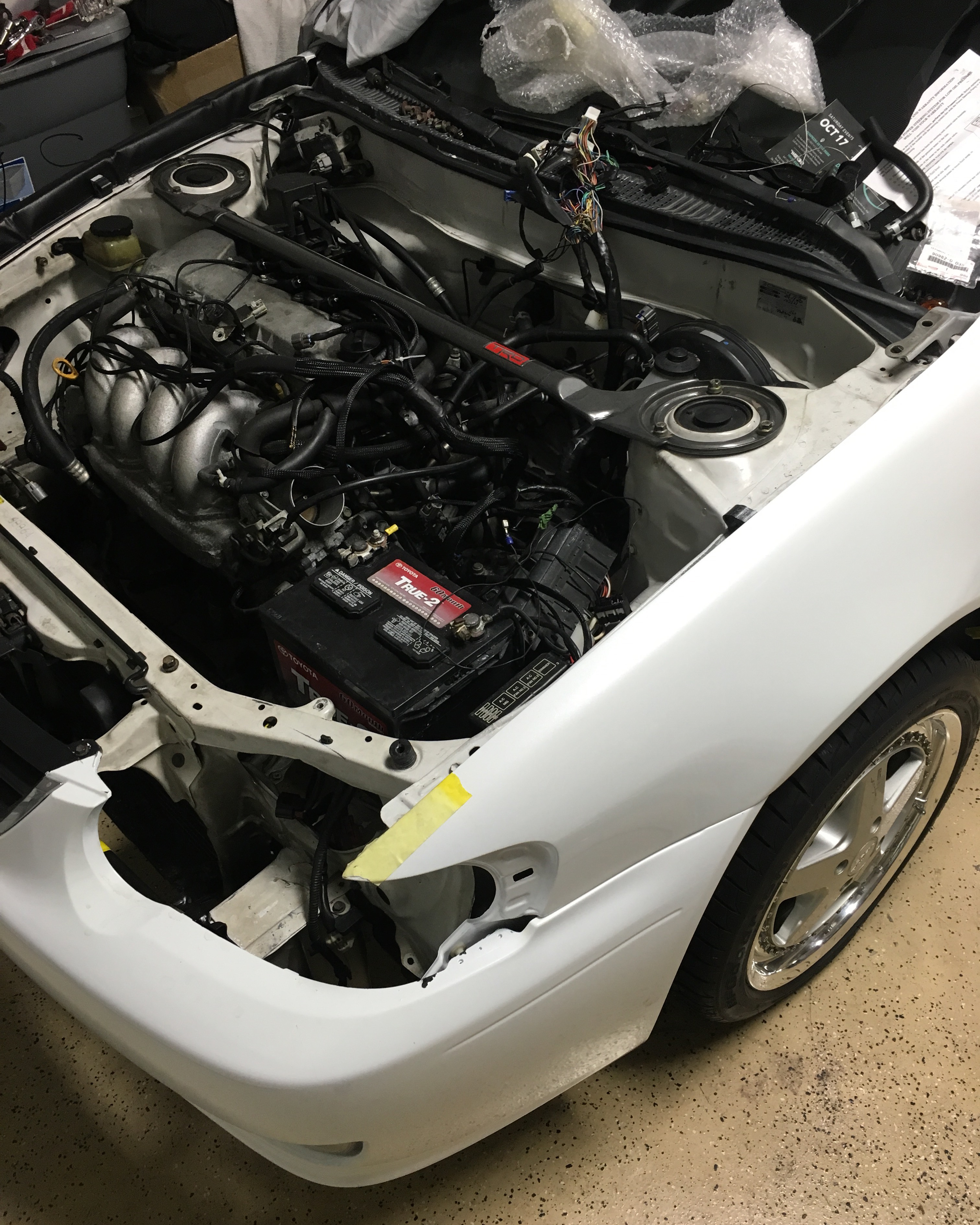

    got the 2zz installed and fits perfect aside from the passenger mount

    IMG_9739.JPG IMG_9764.JPG

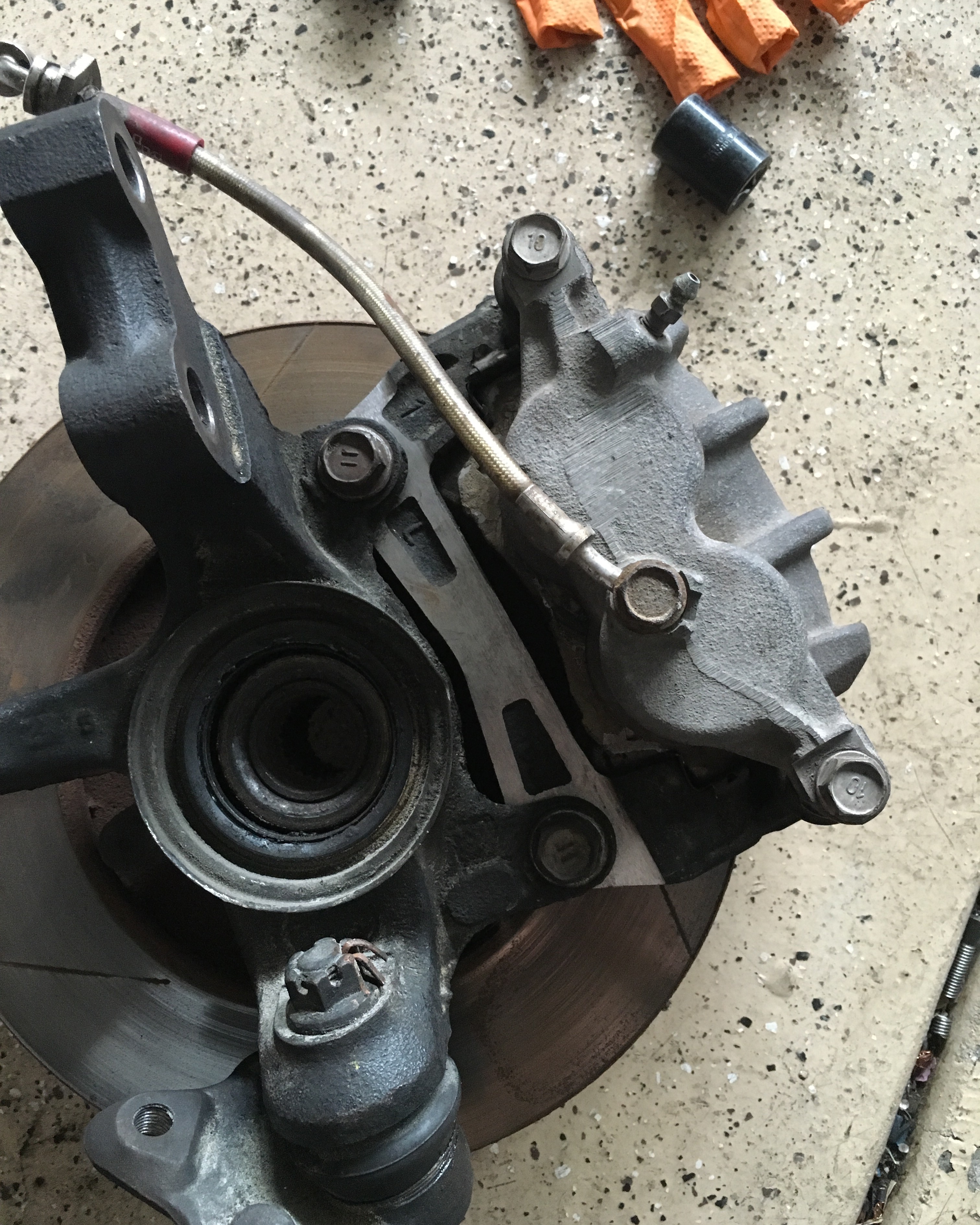

    Also did a big brake upgrade up front.

    Always wanted to do this one only required a litle machining off the bracket

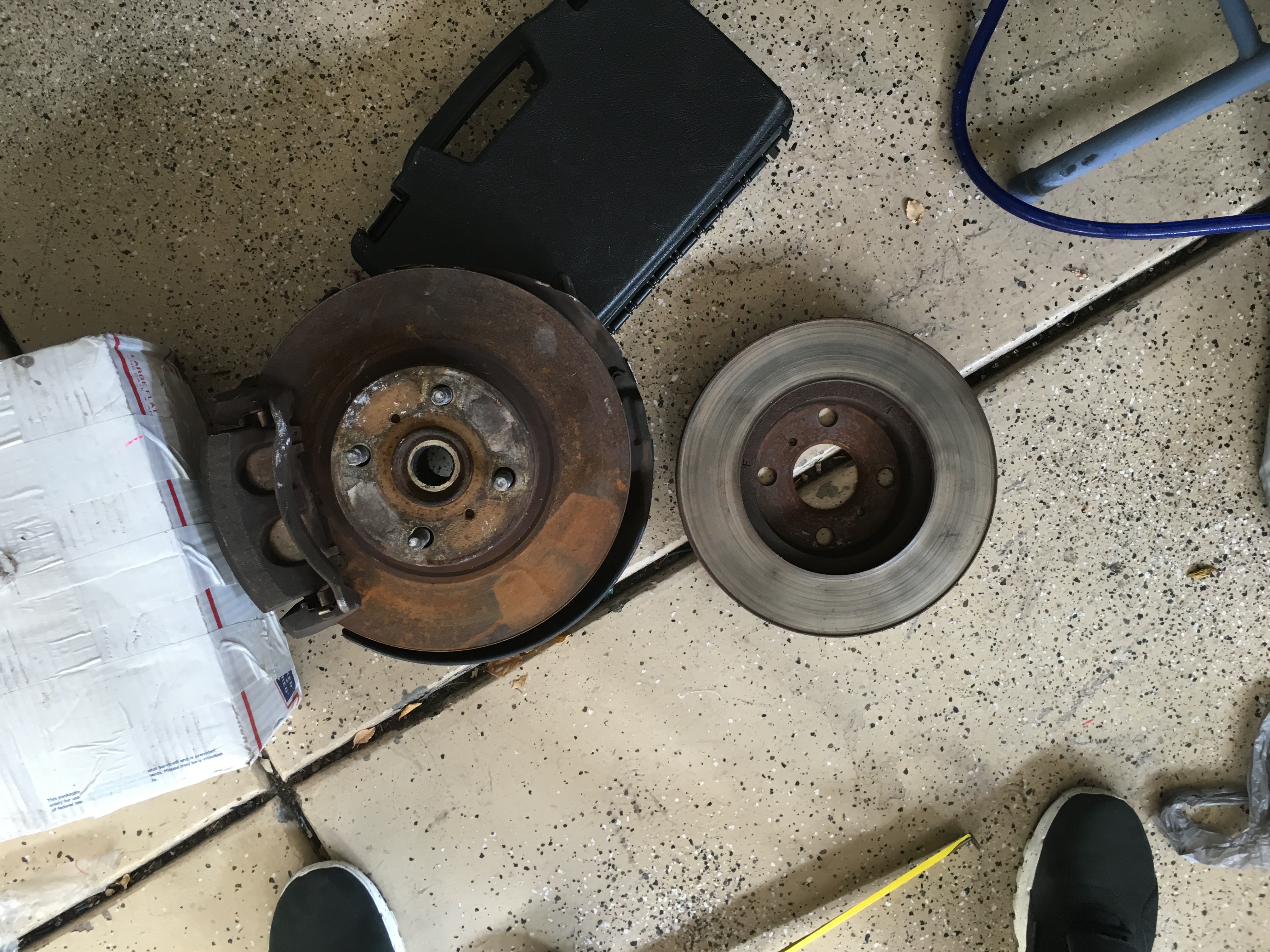

    Ae111 superstrut rotor and twin pot caliper/ with celica st202 brackets with 3mm shaved off the back
    other than that direct bolt on zero fitment issues




    Attached Files:

    boosted94 and Goldy like this.
  12. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    Yes. Much yes.
  13. Offline

    BowlingBallRolla The Killing Machine

    Message Count:
    529
    Likes Received:
    34
    Trophy Points:
    88
    Vehicles:
    98 Corolla
    Well fug me sideways, that's awesome
  14. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    And she is finally rolling out the garage.

    2 problems at the moment.
    -fans stay on (possible harness short,air in block still,or bad ect)
    -No lift yet (gotta check OCV valve filters or lift bolts)
    [IMG]

    Attached Files:

  15. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    The fans will stay on because of how the celica is wired. Mine stay on as well, haven't bothered to mess with them yet.
    Not having lift is a wiring issue. If it was the bolts or OCV you still be able to rev pass 7k. Did you send ignition power to the ECU?
  16. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    just pm'd you
  17. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,587
    Likes Received:
    2,261
    Trophy Points:
    61,028
    I've heard about that fan issue before, never heard of anyone solving it
  18. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    Turns out the relay polarity backwards somewhere along the line
  19. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    So turns out my car had a 3 puck TRD clutch ... ened up being bad so in went a trd usa clutch. oh yeah the swap i bought came with a TRD lightweight flywheel. amazing blips

    [IMG]

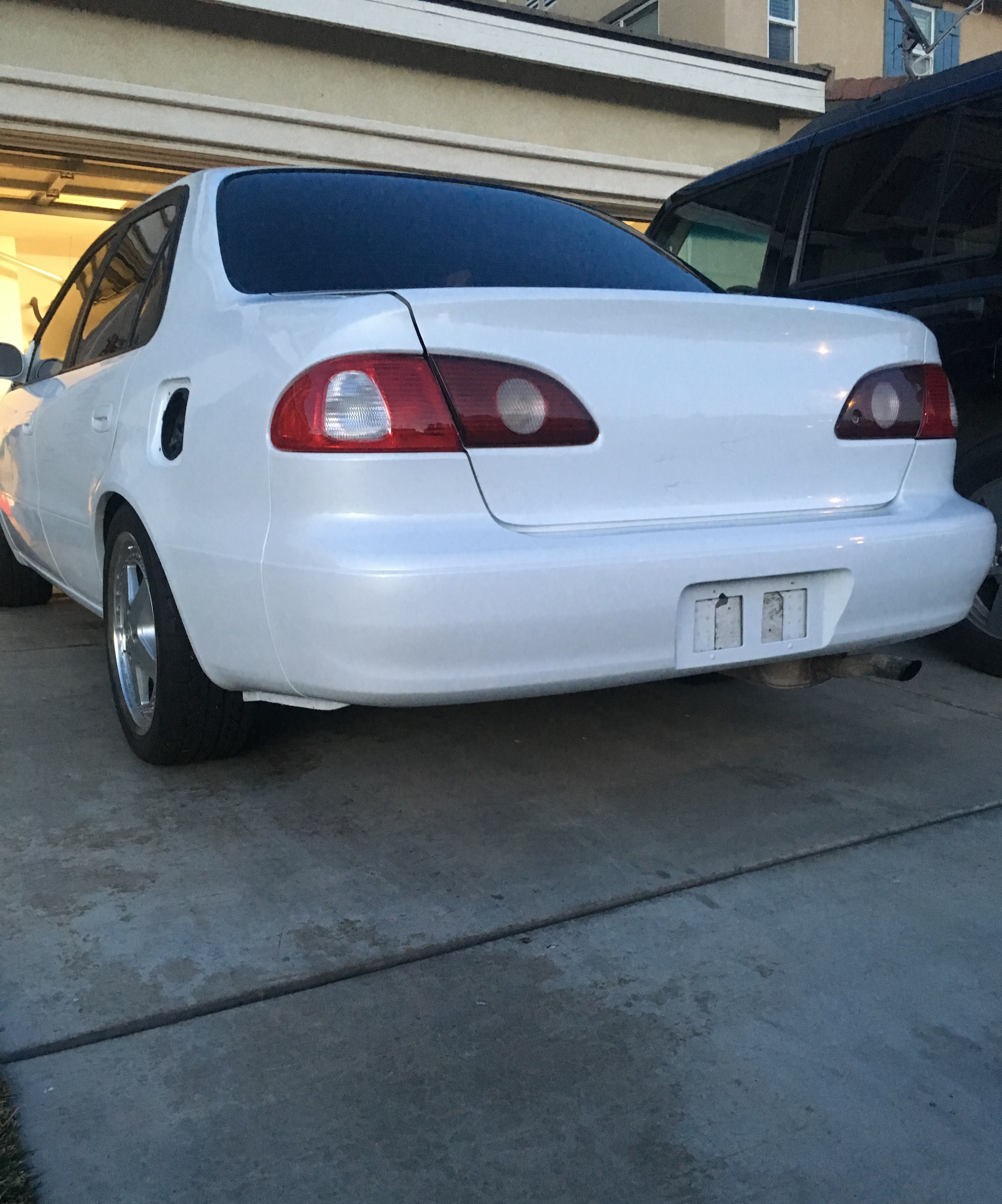

    heres was a shot i took before i garaged her again to do the clutch
    [IMG]
  20. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    So how you liking lift. Lol seems the clutch couldn't take the abuse
  21. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    Thats the new stuff and resurfaced flywheel. this is what i looked at when i split them up
    [IMG]
    [IMG]
  22. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    Yea I figured that was the new stuff.
    1nicetrd likes this.
  23. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    yeah totally misread that last one lol
  24. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    Lol its all good
  25. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    Since the Clutch is getting done i scored a set of cusco Coils. so i am installing new rotors,pads and o2's also

    [IMG]
    [IMG]
    [IMG]
    [IMG]
    dward3 likes this.
  26. Offline

    dward3 Well-Known Member

    Message Count:
    494
    Likes Received:
    12
    Trophy Points:
    568
    Location:
    Phoenix
    Did you make those tweeter mounts on the front doors?
  27. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    I had to make the bracket to hold the tweeter But the tweeter sail panel is actually oem from japan i ordered. i sold them to a couple of people.
  28. Offline

    dward3 Well-Known Member

    Message Count:
    494
    Likes Received:
    12
    Trophy Points:
    568
    Location:
    Phoenix
    The pearl white looks nice too :)
    1nicetrd likes this.
  29. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    494
    Likes Received:
    70
    Trophy Points:
    238
    Location:
    Maryland
    Vehicles:
    ZZE110
    Have you ever thought about getting a front lower tie bar? I tried getting one fromore buyee.jp but they won't allow me to bid on them. Something about contraband
    1nicetrd likes this.
  30. Offline

    1nicetrd Well-Known Member

    Message Count:
    851
    Likes Received:
    197
    Trophy Points:
    253
    I was thinking of it maybe the cusco one thats a 4 point i dont think the 2 point would be enough bracing. im going in march maybe i can buy it there and bring it back
