Forced Induction Custom Turbo System: 2001 Corolla

Discussion in 'Powertrain' started by Dr Tweak, Apr 23, 2007.

  1. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Custom Turbo System: 2001 Corolla

    Today we ran the car on the dyno to get a "before" sheet. The blue run is in 4th gear and we hit the speed limiter at 116mph. The red run is all the way to redline and was made in 3rd gear.

    [IMG]

    This car is running a Fidanza flywheel, 2.5" stainless mandrel-bent exhaust, cold air intake. I posted some pics up of all that work a few months back. Now it's here for a custom turbo system. :)

    -Doc
  2. Offline

    MovieSTAR i hurd u liek?

    Message Count:
    3,771
    Likes Received:
    16
    Trophy Points:
    318
    Location:
    Lakewood, CO
    cool stuff =] so thats without the turbo? you are waiting to put one in?
  3. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    It's here at my shop GETTING IT PUT ON. :)

    -Doc
  4. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    i cant wait!!! how much power are we looking at adding?

    props for another DOC monster <does evil laugh>
  5. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    At least 50% more :p

    -Doc
  6. Offline

    asn13oy Stepping Stones

    Message Count:
    683
    Likes Received:
    0
    Trophy Points:
    18
    Location:
    OC, CA
    MMMMmmmm....170 HP(maybe 170 lbs/ft) 1.8L, Gen 8.5, Corolla....<drool>
  7. Offline

    tsburt Active Member

    Message Count:
    1,179
    Likes Received:
    0
    Trophy Points:
    38
    Location:
    miami
    how much would it run for a setup like this doc?
  8. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    properly tuned we've already seen one break 220 @ 7 psi. :)

    i'm currently running what would be 9.5 psi to you sea level guys. lol
  9. Offline

    MovieSTAR i hurd u liek?

    Message Count:
    3,771
    Likes Received:
    16
    Trophy Points:
    318
    Location:
    Lakewood, CO
    dem mountains kill my horsepower, whats really sad is driving my car up over berthoud pass, so hard to pick up speed i need more power!
  10. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    I'm keeping my expectations low in hopes that we'll be pleasantly suprised. :)

    -Doc
  11. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    ^ lol doc.

    thats exactly how i look / think about things... i guess its better to expect nothing then get surprised of the outcomes rather than to expect alot then be disappointed later. i learned that the hard way.


    @ vortex:
    i was just goin to ask some of you turbo peeps what your hp stats are :p
  12. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    lol good plan
  13. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
  14. Offline

    MovieSTAR i hurd u liek?

    Message Count:
    3,771
    Likes Received:
    16
    Trophy Points:
    318
    Location:
    Lakewood, CO
  15. Offline

    GSE21tuner Formerly rollatuner110. Representing AZLexus.club

    Message Count:
    10,948
    Likes Received:
    19
    Trophy Points:
    568
    Location:
    Phoenix, AZ
    Vehicles:
    07 Lexus IS350, 04 Lexus IS300

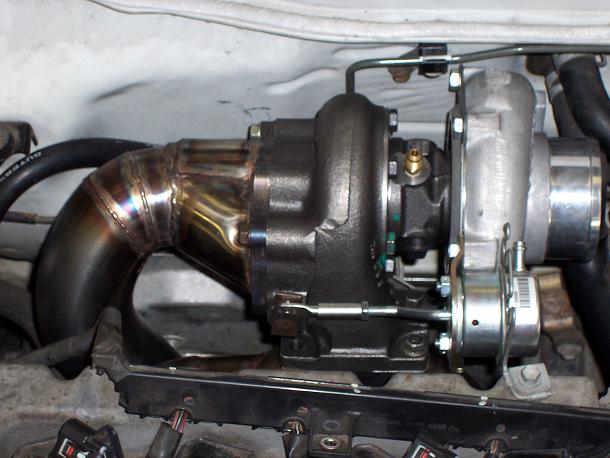

    That is one crazy exhaust manifold. hehe Isn't that turbo a bit big for a little corolla? ;)
  16. Offline

    tsburt Active Member

    Message Count:
    1,179
    Likes Received:
    0
    Trophy Points:
    38
    Location:
    miami
    no turbo big enough for rolla's.. hehe :D
  17. Offline

    JspeXAE102 Well-Known Member

    Message Count:
    4,851
    Likes Received:
    15
    Trophy Points:
    588
    Location:
    群馬 日本
    those are some nice welds
  18. Offline

    GSE21tuner Formerly rollatuner110. Representing AZLexus.club

    Message Count:
    10,948
    Likes Received:
    19
    Trophy Points:
    568
    Location:
    Phoenix, AZ
    Vehicles:
    07 Lexus IS350, 04 Lexus IS300

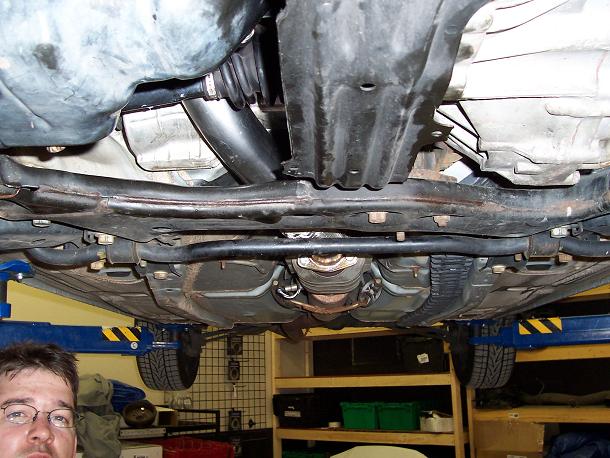

    It's really unique... The downpipe curves off from the side. And its a huge diameter. What size is it exactly? I can see the exhaust is a wide diameter too.
    I know this is a long shot but do you think you would be able to sell this as a kit able to ship out if it meets demand?
  19. Offline

    tsburt Active Member

    Message Count:
    1,179
    Likes Received:
    0
    Trophy Points:
    38
    Location:
    miami
    that would be nice.. ^^^
  20. Offline

    jtweezy New Member

    Message Count:
    1,347
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Irving, TX
    damn, I miss my turbo corolla... :( thats some good looking stuff tho
  21. Offline

    Mayur Biggest trd whore in the whole wide world

    Message Count:
    1,723
    Likes Received:
    0
    Trophy Points:
    38
    Location:
    Des Plaines, IL
    Its not going to meet demand. Look at his rear disc brake swap kit. Everyone said they would get it but they arent moving at all.
  22. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    this means everyone will have to drive down to doc to get their turbo's done. ;) i would personally if i won the lottery, or if a 10k check with my name on it dropped down from the sky.


    +1 to hawtness doc!
  23. Offline

    Vamp Gunmetal 2001 Corolla S

    Message Count:
    1,756
    Likes Received:
    21
    Trophy Points:
    588
    Location:
    Rosedale, MD
    Vehicles:
    Gunmetal Grey 2001 Corolla S

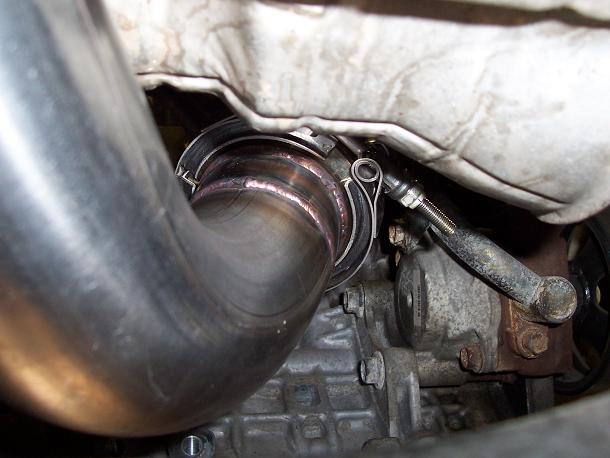

    Very nice. I wish I had used a v-band clamp for my downpipe. I can't get the stupid thing out unless I drop the cross member cause the flange gets in the way. Looking forward to seeing what you put out with this setup. What size turbo is that anyway? Looks about the same size as mine.
  24. Offline

    rayray1 Active Member

    Message Count:
    1,126
    Likes Received:
    0
    Trophy Points:
    36
    Are you going to disable the speed limiter?
  25. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA

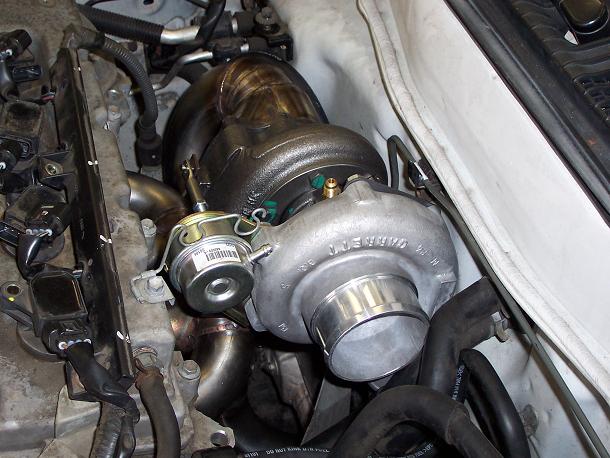

    Thanks for the great comments everyone. That turbo is a GT2860RS, and if my calculations are correct, it should be just perfect for the engine and horsepower goals in mind.

    The awesome welding are courtesy of the new guy that we've hired here at the shop, "Angry" Mike, who's a very good tig welder. He designed the manifold (a cross between a log and a tubular design, similar to a log but with much better flow and extremely compact) along with the downpipe.

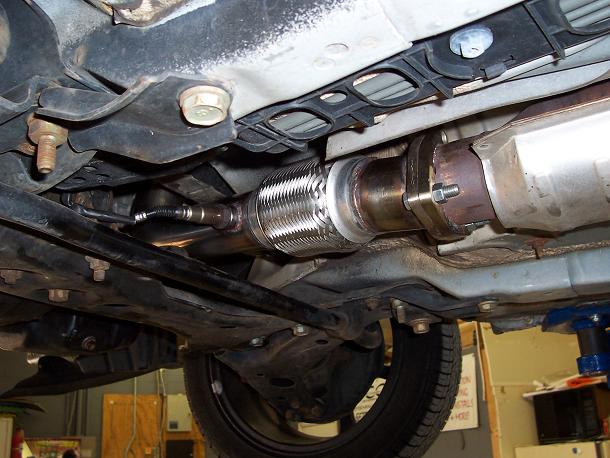

    The diameter of the downpipe along with the complete exhaust is 2.5".

    I would like to market this kit, but we will not have the chance to blueprint this one, and demand is a big concern. If anyone wants this same setup though, or any custom turbo setup, ship it on down and we'll take care of it. This customer sent his car down from NJ.

    I'm going to leave the speed limiter in place as far as I know. It isn't about how fast you can go, it's about how fast you can get there. :)

    -Doc
  26. Offline

    Ares Active Member

    Message Count:
    2,217
    Likes Received:
    3
    Trophy Points:
    38
    Location:
    Houston TX
    AMEN!

    thats nice! now all i have to do is work my ass of and come up with some $$$
  27. Offline

    turbo4age Love to Hate me

    Message Count:
    1,852
    Likes Received:
    1
    Trophy Points:
    38
    Location:
    NV
    does anyone make a v band for an internally gated .48 t3? the three bolt flange is effing impossible to get to with the sharp angle my downpipe is at.
  28. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Yeah I know what you mean. I've never seen them offered, but if you can pull the downpipe off and cut it where you want the v-band installed, we can weld it up for you no problem.

    -Doc
  29. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    Hey J, I'm thinkin when I'm down in Georgia next I wanna swing by and depending on how long I'm in town for, maybe do some redesign work with my manifold and downpipe setup for use with internal... While the stuff is off the car we could always do a couple jigs for a external and internal setup... just a thought. :)
  30. Offline

    Dr Tweak Mad Scientist

    Message Count:
    1,237
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Savannah, GA
    Oh heck yeah, if you're in the area you've got to come by :)

    -Doc
