Changing valve cover gasket 98 corolla.

Discussion in 'Care & Maintenance' started by rolla98, Apr 5, 2011.

  1. Offline

    rolla98 New Member

    Message Count:
    11
    Likes Received:
    0
    Trophy Points:
    3
    There's been oil in the spark plug wells since I got this...treasure. I've tighten down the cover and it has slowed down the oil leak. But being a perfectionist I decided it's time to change the gasket at 138K.

    There's a little problem. The hoses don't really want to come off after I back the spring clamps off. I yank the PCV hose forward but I can feel the parking brake coming loose. There's also another hose on the driver side that seems to be stuck to the cover as well.

    I don't think these hoses have ever come off the cover (the spring clamps are rusted and they are imprinted on the hose) and don't want to tear them if they are dry rotted to the metal. Is this a common problem? Or is there a simple trick to get these hoses off for a dedicated DIY?
    rolla98, Apr 5, 2011
    #1
  2. Offline

    KrypticKarma ~2001 Corrizm~

    Message Count:
    1,021
    Likes Received:
    3
    Trophy Points:
    188
    Location:
    Oshkosh WI
    Show us some pictures of what youre talking about.
    KrypticKarma, Apr 5, 2011
    #2
  3. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,593
    Likes Received:
    2,274
    Trophy Points:
    61,368
    Well my hoses were ok when I took mine off to paint it, but I changed the hoses and the gasket just for good measure. And if yours are stuck that bad and rusted or whatever, I would just cut them off and replace them. It is best to take the hoses off (in order to take the entire cover off) when changing the gasket because the gasket goes in a little ridge inside the valve cover that you can't see if you leave it attached. I would just save the haedache, go to autozone or a store of your choosing, and spend 5 bucks on the two hoses that lead into the valve cover, as well as better hose clamps. And a bottle of Permatex gasket maker (the little grey tube). YOu can see the two drops on the old gasket where you will need to put the new stuff on.
    MacktasticSlick, Apr 5, 2011
    #3
  4. Offline

    rolla98 New Member

    Message Count:
    11
    Likes Received:
    0
    Trophy Points:
    3
    I was going to take some pictures of the engine hoses that were stuck after I got to work. But when I went to touch the PCV hose it was loose already. I guess when I was working on the car the engine was cold since I left it outside overnight and the hose might have shrunk. But after driving around the hose slipped on an off quite easily after twisting it abit.

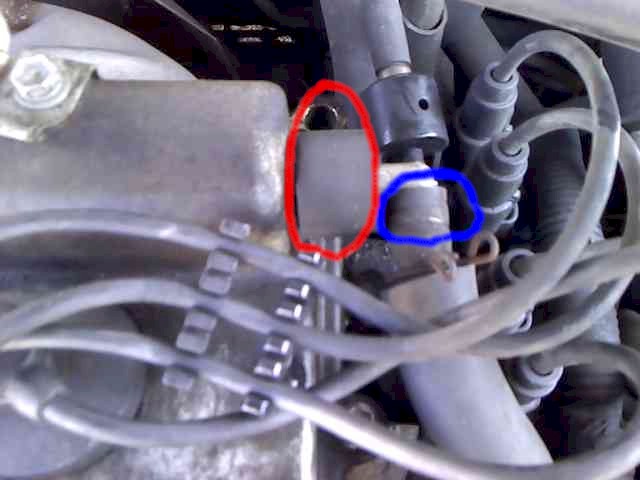

    I guess the only question I have is the hose on the driver side (it looks like it goes the throttle body). I assume I pull off from the blue cirles since the clamp is there. But the gasket I circled in red seems to wiggle too, that doesn't come off does it?

    Attached Files:

    rolla98, Apr 6, 2011
    #4
  5. Offline

    Hummer Well-Known Member

    Message Count:
    26,893
    Likes Received:
    1,455
    Trophy Points:
    1,018
    Location:
    Oregon
    Vehicles:
    E39 BMW
    WD-40
    Hummer, Apr 6, 2011
    #5
  6. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,593
    Likes Received:
    2,274
    Trophy Points:
    61,368
    Pull it off from the red one dude, it's not really a gasket, per se, it's like a rubber, I don't know what you call it lol. But you can go wither way, the blue circle or the red. I forgot you're just changing the gasket, not painting it lol. Either one works if you just want to remove it.
    MacktasticSlick, Apr 6, 2011
    #6
  7. Offline

    rolla98 New Member

    Message Count:
    11
    Likes Received:
    0
    Trophy Points:
    3
    If I paint it, will it go faster...lol. Is there fast drying high temp paint. I only got 3 hrs window before I got to motor again.

    Thanks for the input. I guess I got something to do this weekend.
    rolla98, Apr 6, 2011
    #7
  8. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,593
    Likes Received:
    2,274
    Trophy Points:
    61,368
    If you paint it red like I did, you get about 7 WHP.
    MacktasticSlick, Apr 6, 2011
    #8
  9. Offline

    Hummer Well-Known Member

    Message Count:
    26,893
    Likes Received:
    1,455
    Trophy Points:
    1,018
    Location:
    Oregon
    Vehicles:
    E39 BMW
    Theres a high temp resistant paint sold at most auto stores. You can also use caliper paint since those get hotter than engine bays.
    Hummer, Apr 6, 2011
    #9
  10. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,593
    Likes Received:
    2,274
    Trophy Points:
    61,368
    Autozone has a section of engine paint, it's made just for painting parts of the engine. That's what I used.
    MacktasticSlick, Apr 6, 2011
    #10
  11. Offline

    rolla98 New Member

    Message Count:
    11
    Likes Received:
    0
    Trophy Points:
    3
    So did the replacement of the gasket yestarday. It was a dirty job, but got it done. Then when I drove it on the highway, the CEL came on. Checked the engine and the intake hose on the front of the valve cover was split (old rubber was hard and brittle). Went to autozone and got an aftermarket hose with clamps. Still sputtering on the way home. In the morning I checked the hose and the clamp came loose. So tightened the clamps. But still got a rough idle. Replace the PCV valve, motor oil and spark plugs. But idle is still rough and sometimes the engine die during low speeds in reverse or drive.

    Any idea what it might be. Vaccum leak?
    Is the PCV valve grommet suppose to be soft or hard? It was quite difficult removing the PCV valve and I'm thinking perhaps the grommet had hardened overtime like the hose and is causing an air leak make the fuel too lean...
    rolla98, Apr 10, 2011
    #11
  12. Offline

    MacktasticSlick TRD whore with 36,000 posts, bitch

    Administrator
    Message Count:
    36,593
    Likes Received:
    2,274
    Trophy Points:
    61,368
    Mine was pretty soft and bendy, you are talking about the one that leads into the right (driver's side) of the valve cover correct?
    MacktasticSlick, Apr 10, 2011
    #12
  13. Offline

    rolla98 New Member

    Message Count:
    11
    Likes Received:
    0
    Trophy Points:
    3
    Mines as hard as a rock. No soft or bendy stuff here. Took a little elbow grease to pull out the PCV valve and jam in a new one. The inside of the old one was dirty, lots of gunk inside, so time to replace it anyways. The PCV is in the pic I put up covered by a bit of insulation (it's on the driver side like you mentioned).

    I checked the cover and one of the corner bolts snapped off as well...metal must be old...I'm going to stop by the dealer's part dept tomorrow to pick up OEM parts. Grommet, hose, and corner bolt. At this rate I'll be doing an engine rebuild just to keep oil out of the spark plug wells...lol.
    rolla98, Apr 10, 2011
    #13
  14. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    506
    Likes Received:
    77
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    I took off my PCV value completely and im running two breather filters in place of it.
    crolla, Apr 14, 2011
    #14
