Adding Auxilary Power DIY

Discussion in '8th Gen' started by levi73013, Jun 26, 2014.

  1. Offline

    levi73013 Active Member

    Message Count:
    9
    Likes Received:
    3
    Trophy Points:
    33
    Location:
    Central Oklahoma
    Vehicles:
    2001 Corolla LE
    Most people will be able to take a couple looks at the end results and be able to see what's been done, but I've tried to take a lot of pictures so that anyone could follow along exactly if they don't feel confident in figuring it out. modifications like this, are definitely at your own risk, and it's definitely your own fault if you somehow mess up your car trying to follow these instructions.


    I've had this idea for a while now, and finally made some progress on it.

    I have a Garmin and hate having the cord to charge it strung across the car, and hate having to remember to charge it as well.

    to fix this, I've added a power cord directly between a fuse box and the Garmin, with the wires tucked away.

    I've also added a USB hub inside of the storage compartment between the seats.

    I didn't want to cut into any of the actual adapters, so the only reel thing that I've cut into was a cheap pigtail cigarette lighter multiplug and the inside of the storage console.

    I'll try to describe the garmin power first and the USB hub in a separate post.

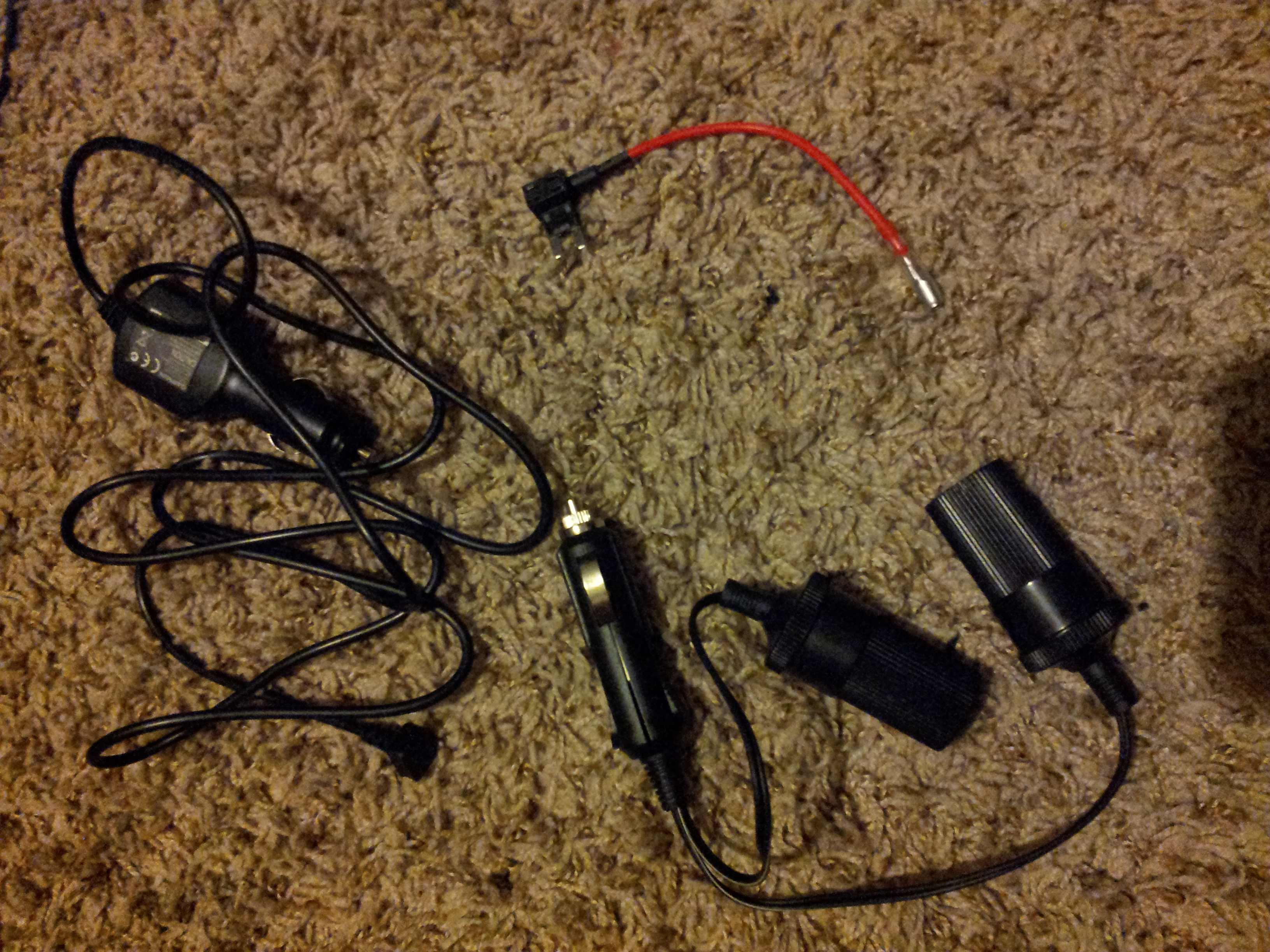

    things I used

    adapter that came with the garmin
    cheap cigarette lighter splitter multiplug
    add a circuit/ fuse tap
    wire to send to the ground
    electrical tape
    electrical eyelet/ ring terminal for the ground wire 20140625_205800.jpg

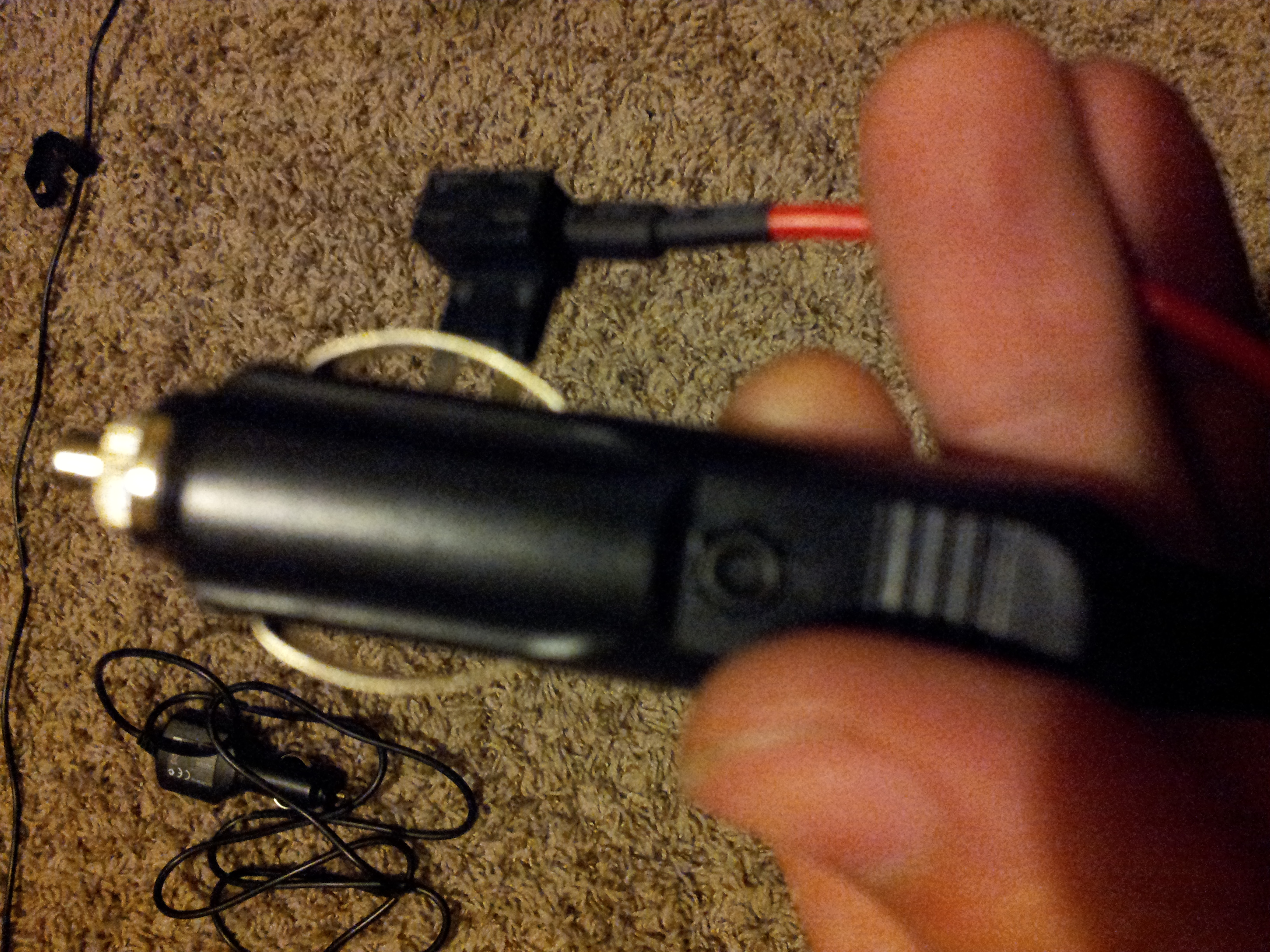

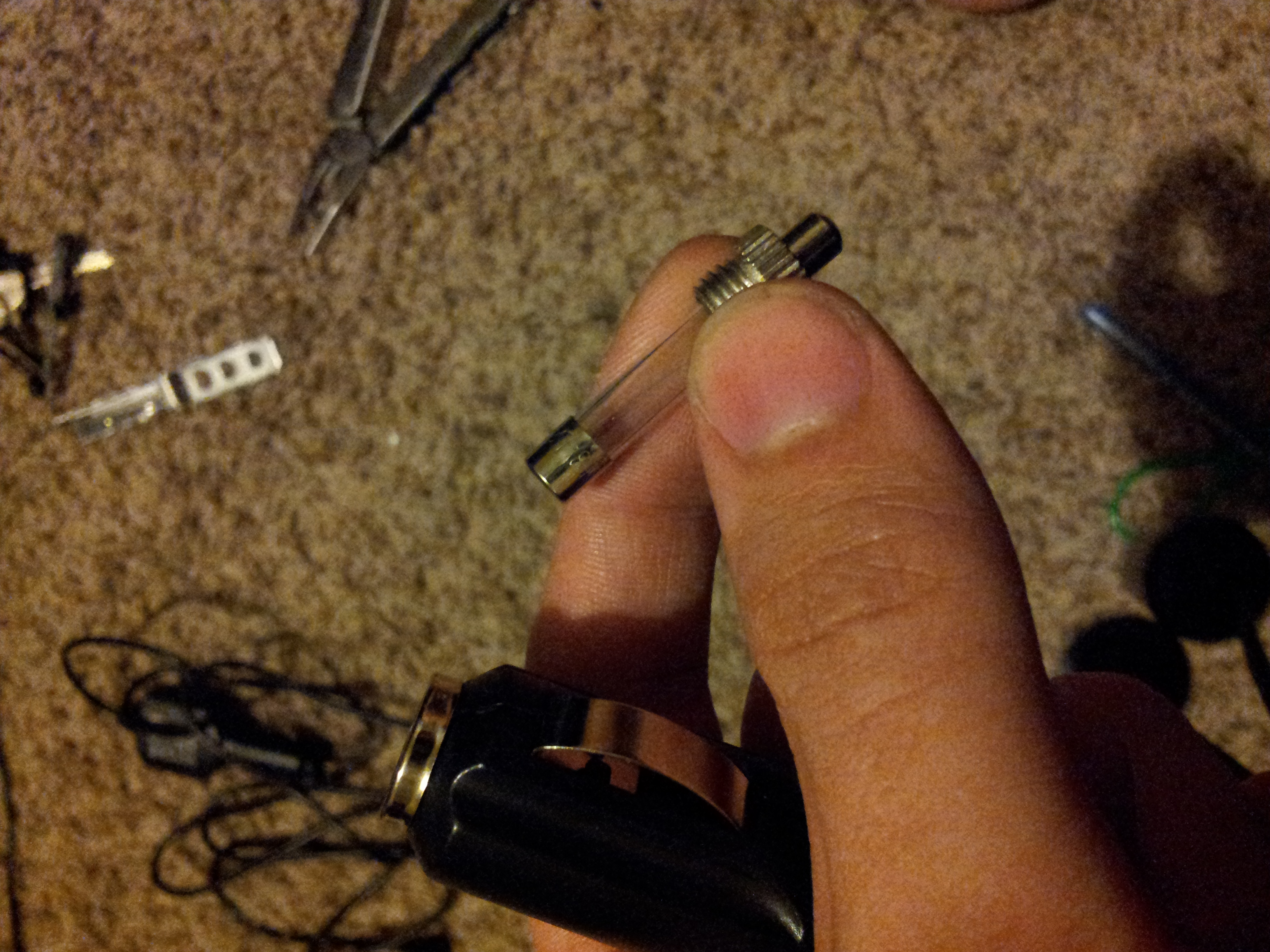

    first step would be to disassemble the cheap cigarette multiplug
    20140625_205836.jpg 20140625_210152.jpg 20140625_210219.jpg 20140625_210352.jpg 20140625_210413.jpg 20140625_212143.jpg

    after I had the female ends of the plug free, I attached the middle positive wire to the fuse tap wire.

    Attached Files:

    cBass likes this.
  2. Offline

    levi73013 Active Member

    Message Count:
    9
    Likes Received:
    3
    Trophy Points:
    33
    Location:
    Central Oklahoma
    Vehicles:
    2001 Corolla LE

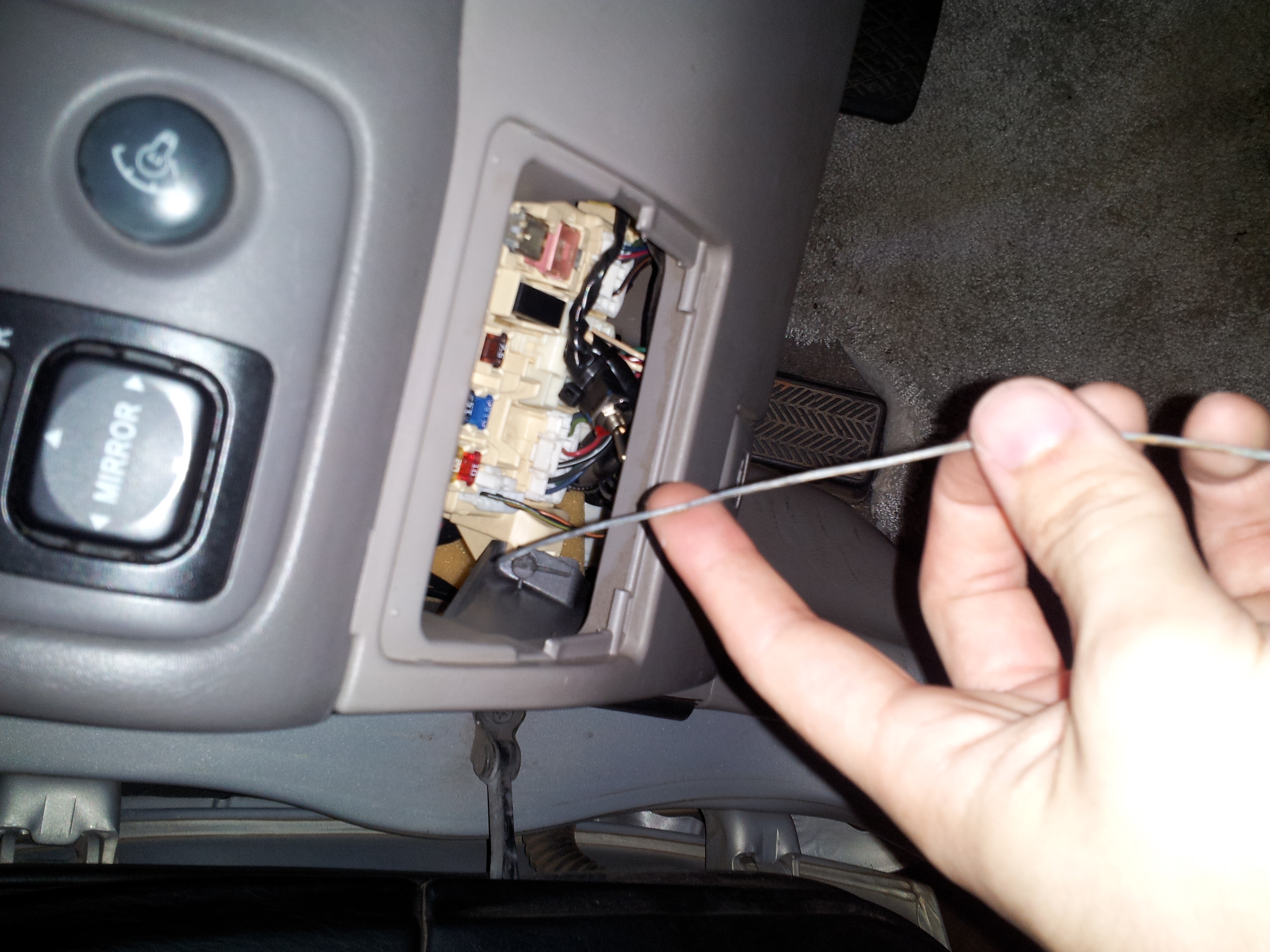

    I like my garmin to sit on the left of the instrument cluster, so the wiring will be running from the door rubber to the fuse box just below that area. I used a guide wire to help get it strung through
    20140625_215554.jpg 20140625_215748.jpg 20140625_215855.jpg 20140625_220037.jpg

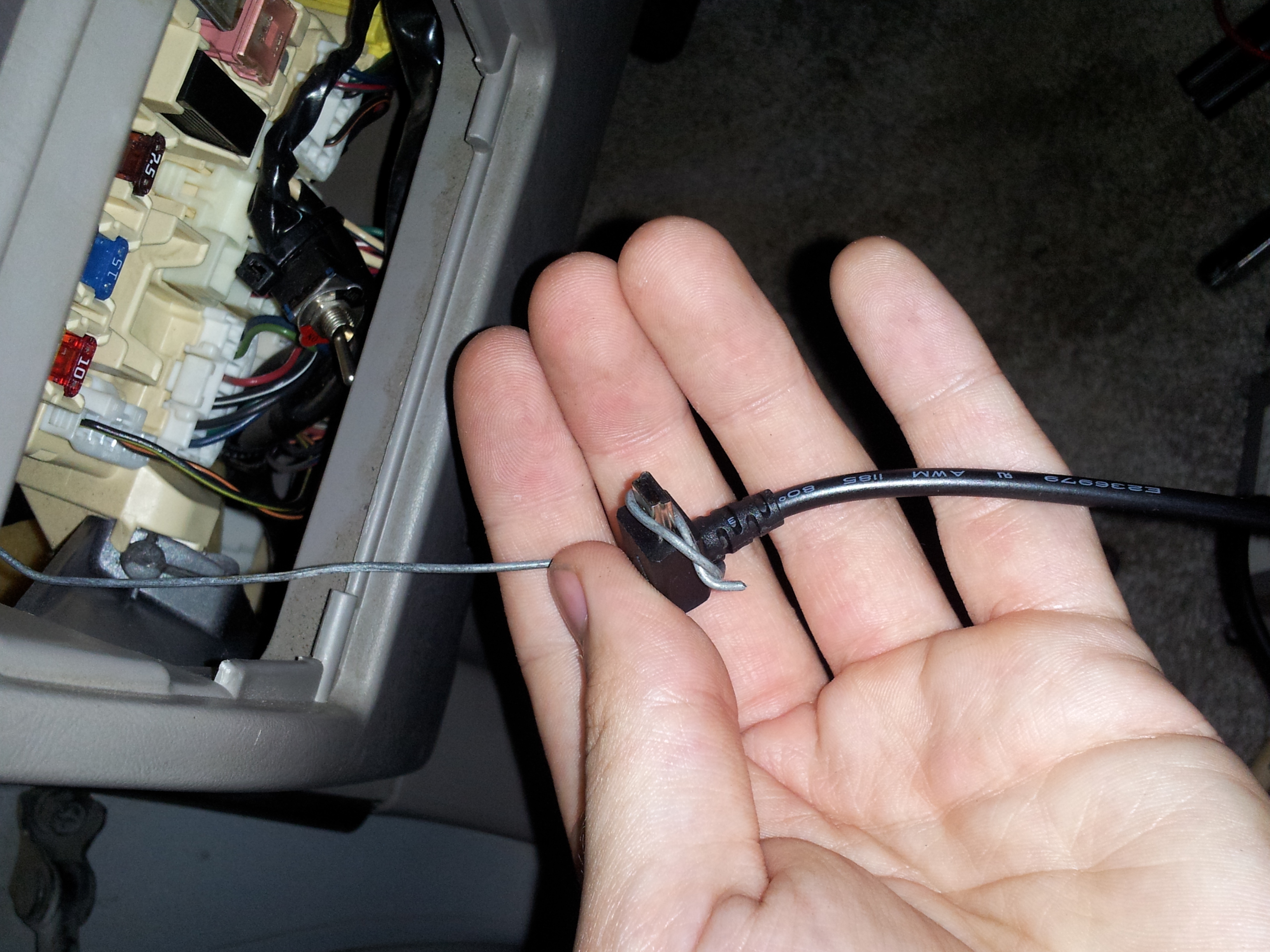

    then I stuffed the adapter part of the cable into that opening connected to the newly modified end of the cigarette lighter plug. 20140625_220250.jpg



    then I connected some wire to the negative section and strung it to the floor board so it could meet a screw that is currently the ground for a number of other electrical things.
    Added: Jun 27, 2014 3:34 AM
    after connecting the ground, I connected the fuse tap. that fuse box conveniently has the fuse for the cigarette lighter, so by using that one, the garmin will only get power when the car is on and won't drain my car battery. this picture DOES NOT SHOW THE RIGHT FUSE TO USE. I fixed it after I noticed the power was constant for that one. 20140626_192434.jpg
    Added: Jun 27, 2014 3:34 AM
    cBass likes this.
  3. Offline

    levi73013 Active Member

    Message Count:
    9
    Likes Received:
    3
    Trophy Points:
    33
    Location:
    Central Oklahoma
    Vehicles:
    2001 Corolla LE

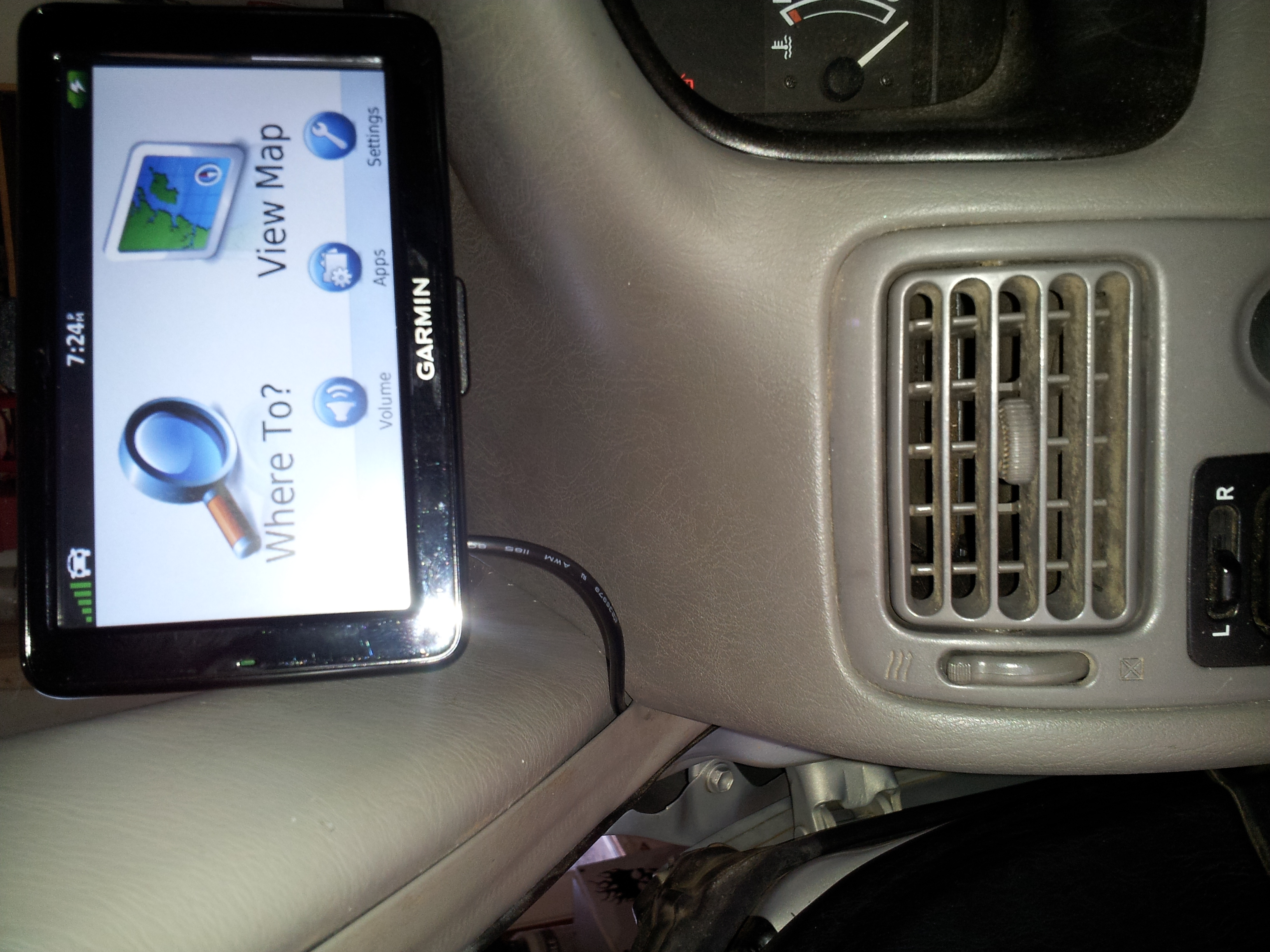

    finished result!


    sorry for the sideways pictures!
