98-02 corolla coilover sleeves

Discussion in '8th Gen' started by evelio seijas, Feb 4, 2015.

  1. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    been looking at coil over sleeves i found some for the corolla for $89 for the set i was wondering if anyone has installed these or used these and if its worth getting


    this is what they look like
  2. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Are the ones you're talking about skunk 2 or is that just the pic?
  3. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    its just the pic i just wanna know how to properly install these
  4. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    Take your struts off, compress your spring, loosen the nut on top of strut (Be careful it may be under pressure) take strut top hat off, take spring off of strut, there may be a ring or cap on top of the strut casing where the piston slides in and out.. Knock, hit or pop it off. Slide the threaded sleeve onto the strut (it may be a loose fit, (some rubber o-rings rolled over the strut help to make a tight fit) push the sleeve all the way down over the strut case and onto the perch (where the bottom of the OEM springs sits). Drop the top strut tower mount onto/over the threads on the top of the strut piston and tighten the nut. DO NOT over tighten this nut, DO NOT use an impact gun. Tighten with a wrench and then a little extra (maybe 1/2 to whole turn more) place the strut back on to your car and start adjusting your ride height with the nut that turns on the sleeve you just installed onto the strut. Good luck, let me know if you need any help.
  5. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla

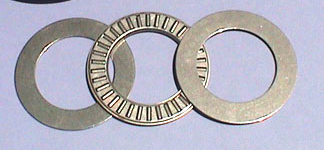

    thanks so much big help the kit comes with 3 washers Screen Shot 2015-02-04 at 8.08.47 PM.png this is what they look like where do these go. I'm asking because i have ordered these sleeves before and installed them and the rear was fine but the front would make clunking noises when turning the wheel and when i hit big dips in the road
  6. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    The reason you probably got those noises is bc you didn't remove the stock spring perch, I know from experience. And sleeves are a great choice if you don't have 1k for coilovers.
  7. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    Usually those noises come from people not setting their OEM or aftermarket spring back in the bottom insulator correctly. JDMGEN8, you've had this sound with sleeves?

    Evelio, did the kit come with any rubber washers/bushings also?
  8. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    I didn't remove the stock spring perches on the front struts the first time I installed them. I also had no bump stops/bushings. Ended up buying those new from GC 12 bucks a piece compare to Autozone 24 bucks a piece.
  9. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    yeah i didn't use the rubber washers and i had to grind down the strut a bit on the bottom part for Screen Shot 2015-02-04 at 8.28.21 PM.png these to go in and i used the o rings to center it everything seemed fine but it was making the noises some people told me its cus of the washers but idk I'm gonna re order the kit and try to install it again i will post pictures as i go along
  10. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Not using the washers would deffinately cause problems bc you will have that much play in your suspension.
  11. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I honestly do not know what those washers are for. I didn't use them when I installed my sleeves, but mine are Ground Control (Eibach) and I used all OEM strut mounting hardware (top hat and top strut mount) It should look like this when your finished:

    [IMG]
  12. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    well I'm gonna try it again soon hopefully all goes well lol i also wanna roll my fenders so i can go real low without rubbing too much hopefully
  13. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    My setup didn't need the rubber o-rings bc of the koni struts I used had a plastic cap that kept the sleeve centered but here's the order you put em together at least for me without o-rings.

    Sleeve with adjustment nut
    Bump stop
    Spring
    Spring perch
    2 washers
    Top hat with nut
    Install

    Those are directions straight from GC.
  14. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s

    I will be attempting that as well soon, supposed to be meeting a guy this weekend for some +20 image.jpg
  15. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Matt you still have the stock spring perches on top of the GC spring perches?
  16. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    thats just what mine looked like i must ve messed something up in the order i put everything in hows the ride btw?
  17. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    Yes I have the OEM one's on still. The ride is fine, bouncy at times. Would be perfect if I raised it a little. Seemed better than usual today.. Must have been the 55 degree weather LOL
  18. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Trust me it would ride 100 times better if you take that out it's not suppose to be there I made the same mistake called GC and they explained what I did wrong feels and looks so much better now.
  19. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
  20. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE

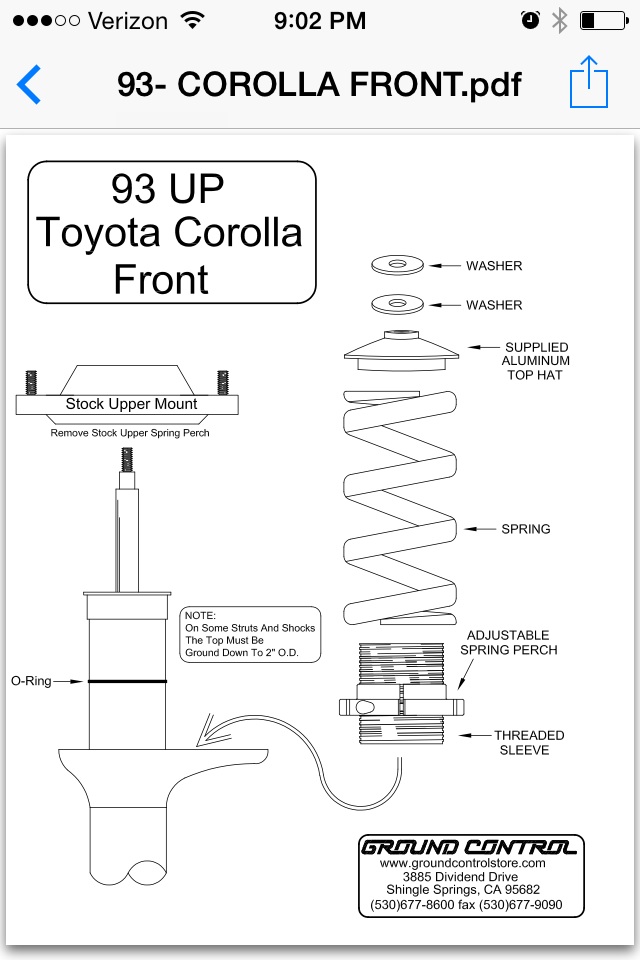

    Notice the fine print...(remove stock upper spring perch)

    MattH likes this.
  21. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    You are correct about the left struts being front in picture. I just jacked my car up to look and the only reason I can remember re-using the stock perch is because I didn't like the way the GC perch fit into the bottom of the top mount.
  22. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Yeah that's what the washers are for to help fill the void, they fit perfectly flush then.
  23. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I'll be damned.. That schematic doesn't lie, does it? I also recall a mark on the GC perch that didn't match up to the top mount ring, but did match the OEM perch ring. If this is the case I might take the OEM perch off, meaning I can raise the spring up, allowing the strut to do more of the work now... Meaning less bouncy. Thanks bro!!
  24. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    that's exactly right meaning you can lower it more and still ride smooth bc your strut will be functioning properly lol
  25. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I'll have to get some washers at work tomorrow. You said 2 on each strut? How big is the center hole on the washer? Does it fit pretty snug/close around the piston?
  26. Offline

    evelio seijas Member

    Message Count:
    52
    Likes Received:
    3
    Trophy Points:
    8
    Location:
    cape coral, FL
    Vehicles:
    2000 corolla
    lot of good info here I'm gonna go for it. gonna order them friday thank guys
  27. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    The washers don't actually go down around the piston they just go over the strut mount stud/threads and sit on top of the piston I can't recall how big but just pop that plastic cap off the top of your strut mount and the stud should be sticking up enough to see what size you need. They should fit snug around the stud you don't want them falling down around the piston.
    MattH likes this.
  28. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I got you, I have some old top mounts laying around. I'll take one with me tomorrow so I can see what size I need. Thanks again. Sorry to steal your thread Evelio. Definitely good info though, thanks JDMGEN8!
  29. Offline

    jdmgen8 Well-Known Member

    Message Count:
    554
    Likes Received:
    51
    Trophy Points:
    58
    Location:
    Spartanburg, SC
    Vehicles:
    2002 Toyota Corolla CE
    Hey no problem glad I could help I had to find out the hard way lol I could probably take my suspension apart and put it back together with my eyes closed by now lol
  30. Offline

    MattH Country Boy Problems

    Message Count:
    215
    Likes Received:
    28
    Trophy Points:
    238
    Location:
    Central VA
    Vehicles:
    2001 Corolla s
    I heard that
