1Nicetrd build Thread

Discussion in '8th Gen' started by 1nicetrd, Aug 13, 2015.

  1. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,006
    Likes Received:
    2,879
    Trophy Points:
    61,468
    Beautiful! Though , I'm confused about the lack of tail lights
  2. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Shot by forums truly @james.

    Context to no center tails, it was a junkyard trunk to test if the spoiler helped the car. so a ton of cutting was done and i didnt want to ruin my good trunk.
  3. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,006
    Likes Received:
    2,879
    Trophy Points:
    61,468
    Oh nice! James was there! I saw pics/vids on Mack's instagram.

    nice, the trunk looked good. Did the spoiler help?
  4. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    They both came out but different track days i did 2 weekends in row. So the wing does take some getting used to my high speed cornering can carry higher speeds, but now my problem i am over powering the 15's so i need to go bigger. my next track day i will do a back to back comparison to get timing data its cooler now so i can get some what of reliable data.
  5. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,006
    Likes Received:
    2,879
    Trophy Points:
    61,468
    haha, yeah that's always the "problem" with these things, it never ends. But at least it makes noticeable improvement!
  6. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    We will rebuild.

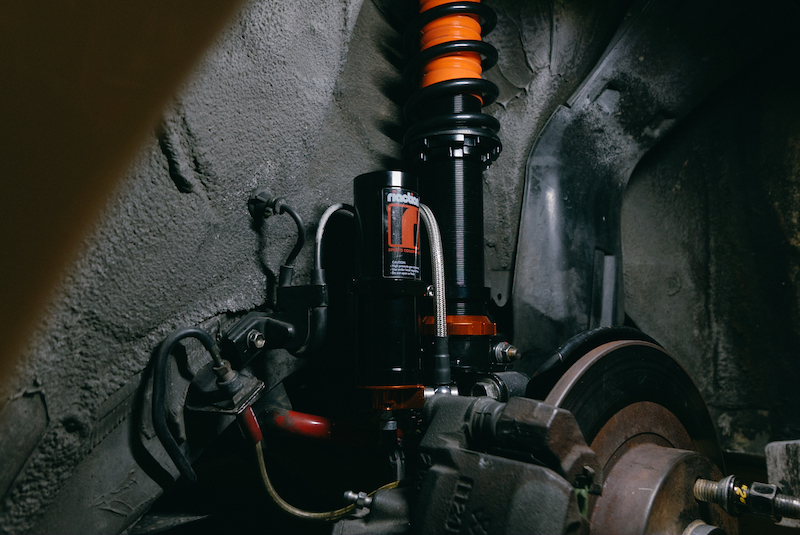

    Well... got some new coilovers from a socal brand called Riaction. I went with a digressive valved 2 way adjustable coil. going to track test them veryy soon.

    Car will be getting a little revamp since i recently broke something in the current trans now.

    Also working on fitting abs, since i wanted to see how it felt being it a rare option on the 8th gen.
    MattH and Goldy like this.
  7. Offline

    |-Goku-| Super Saiyan

    Moderator
    Message Count:
    3,248
    Likes Received:
    241
    Trophy Points:
    9,663
    Location:
    Boise, ID
    Nice to see new mods happening!
    1nicetrd likes this.
  8. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Well we are back. I have done some modernizing to the good ol 8th gen. some stuff still in the works

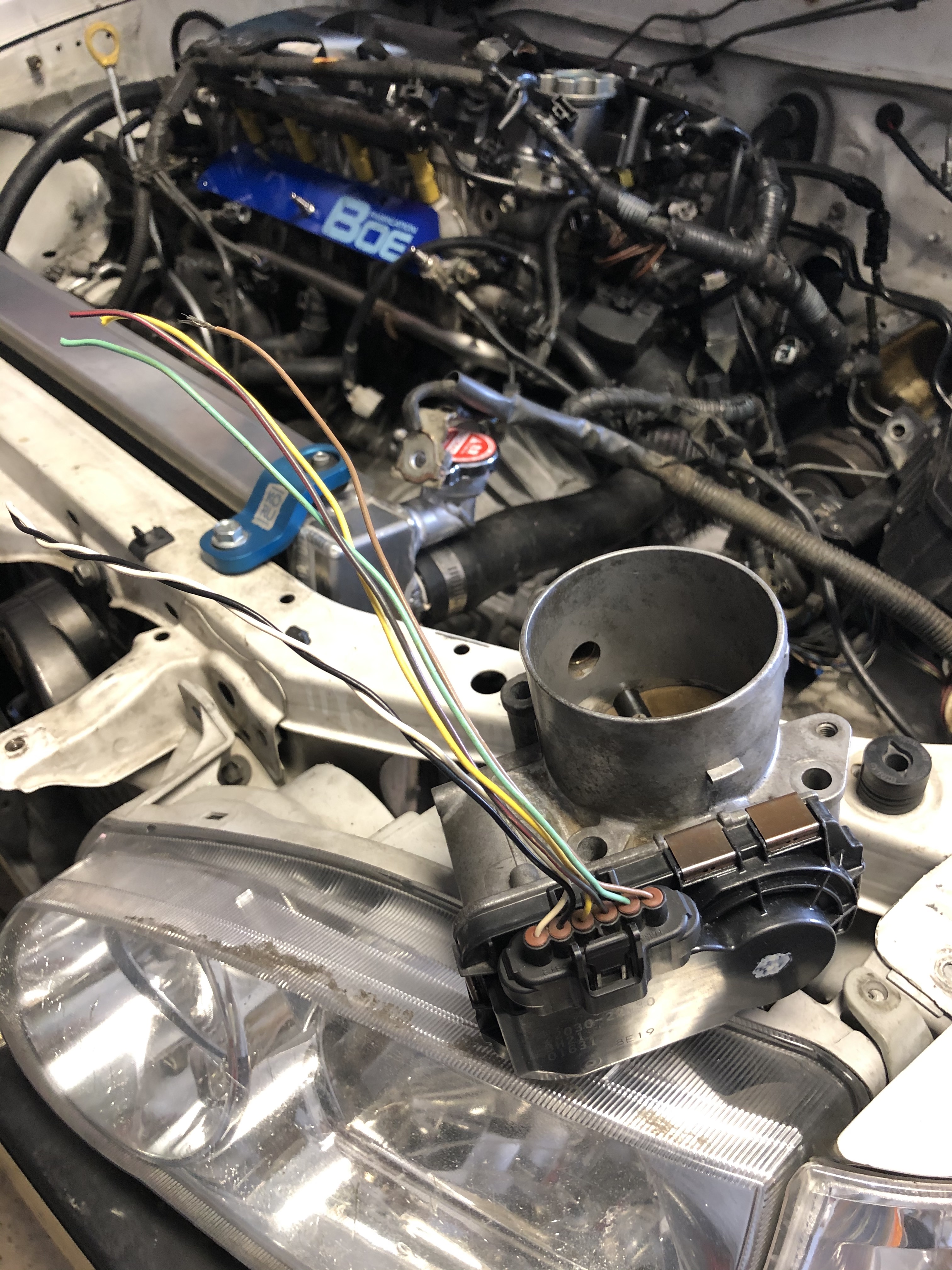

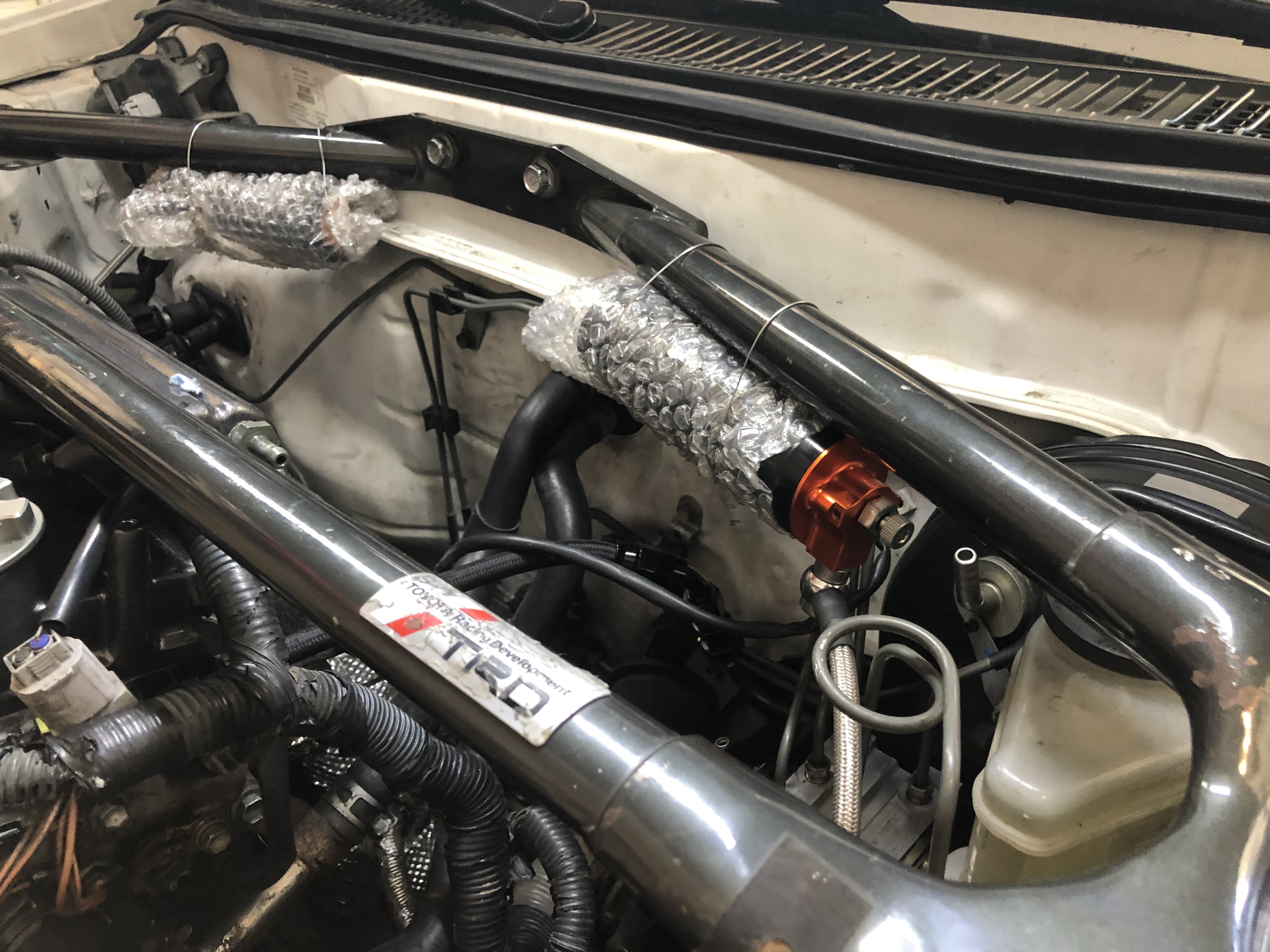

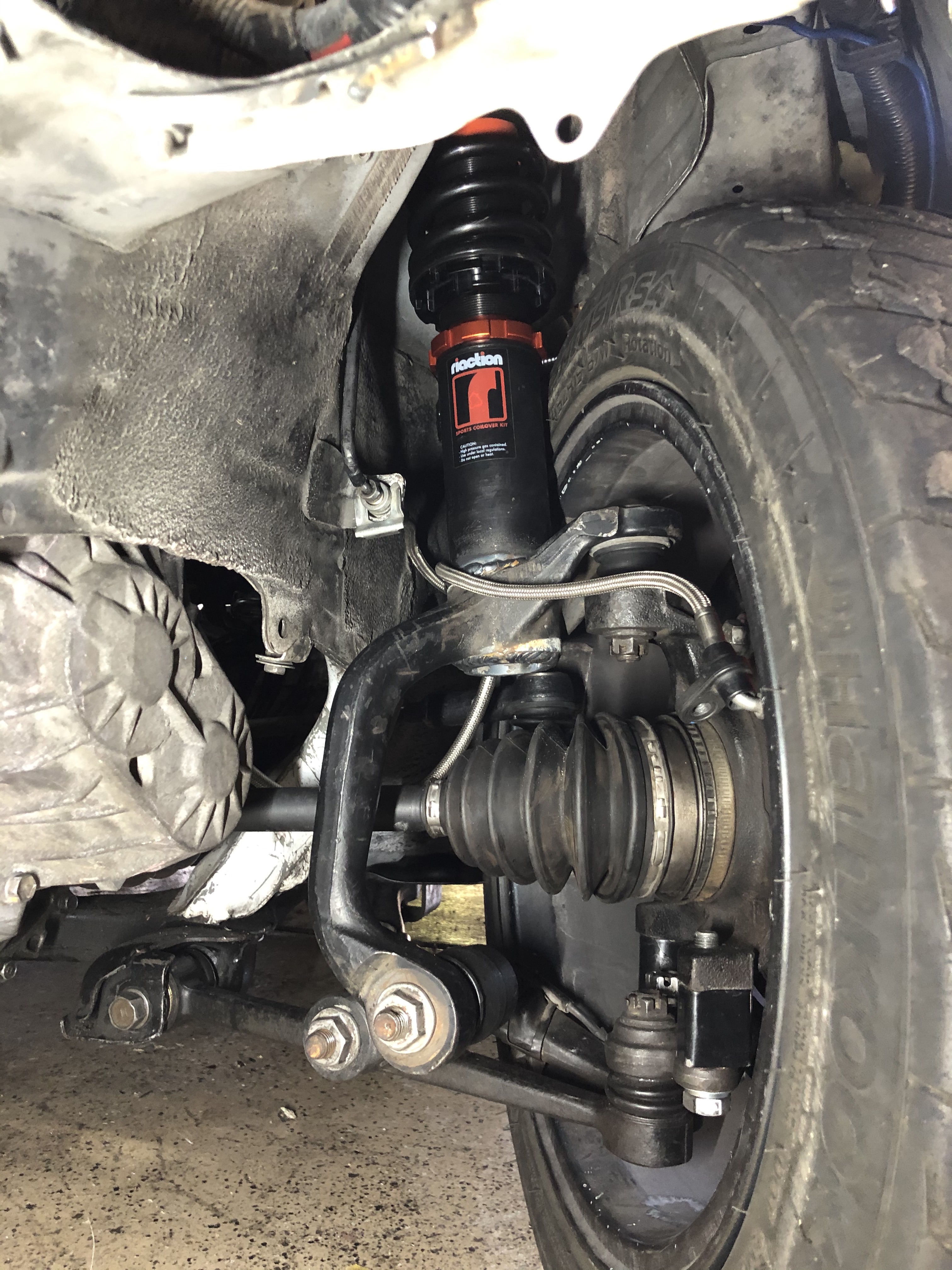

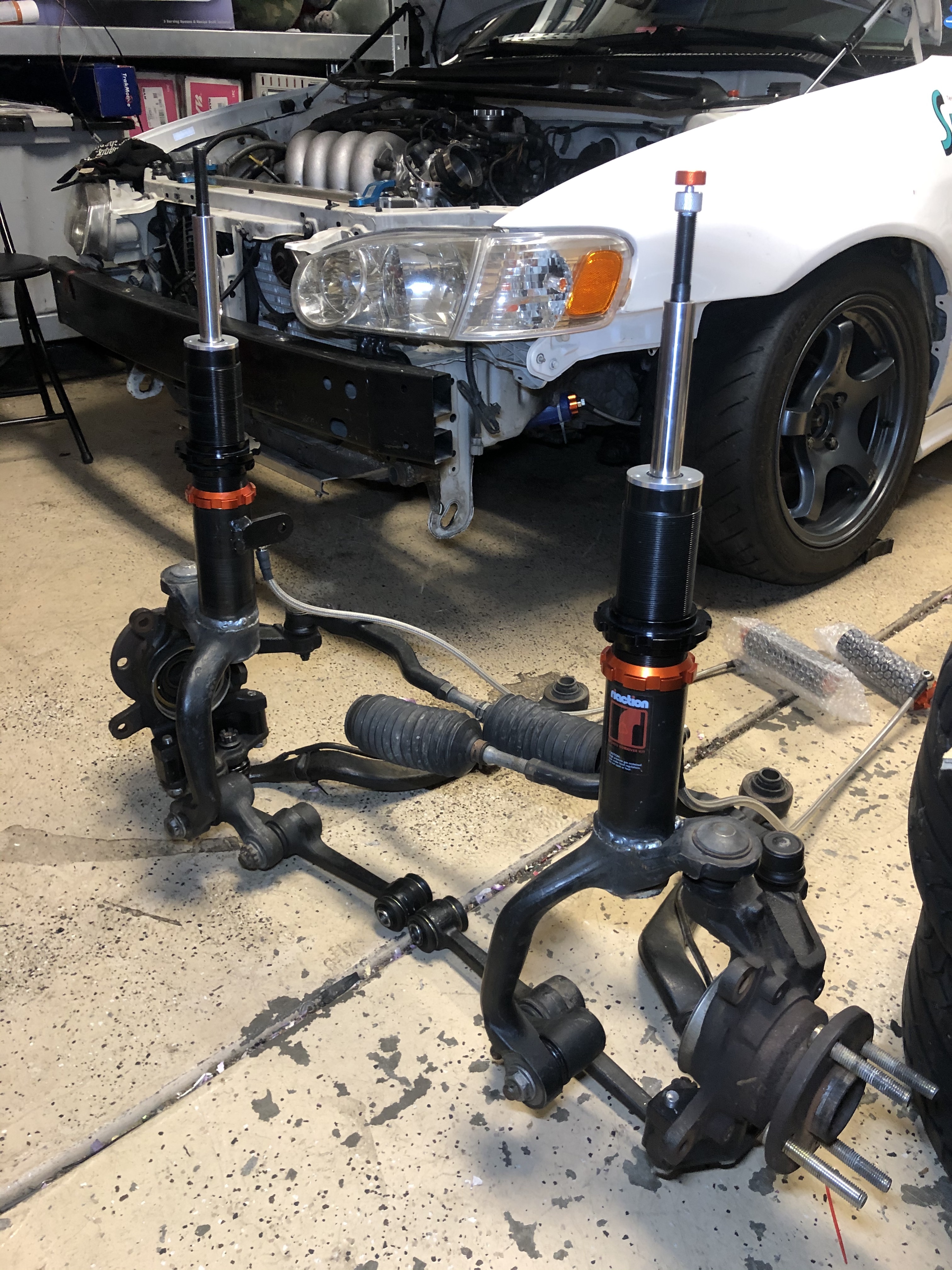

    So upgraded my suspension geometry to the ae111 Superstrut and got hooked up with some 2 way adjustable coilovers from a newer Socal company called Riaction, finally installed a Yaris power steering column, and next on the list is a DBW conversion. IMG_7841.jpg
    IMG_7843.jpg IMG_7844.jpg IMG_7757.jpg IMG_7760.jpg IMG_7680.jpg
    MattH, James, vortex and 1 other person like this.
  9. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,006
    Likes Received:
    2,879
    Trophy Points:
    61,468
    That's pretty cool that you can just swap the suspension like that. Was it an option in another country or something? Or is it from a newer car?

    And what's up with the steering column, what's the advantage there?

    And I thought people generally hated "drive by wire" and preferred the old mechanical style
  10. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    I'll always have a soft spot in my heart for solid work done on 8th Gen's... Some days I still miss my turbo'd beast... other days... I'm glad I don't have to tinker with it when the temperature changes, haha...
    James and Goldy like this.
  11. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Thank you ! I’ve just wanted to finish my dream corolla but spun out of control. Man newer stand alones these are problems of the past one tune and you’re good altitude compensating is measure with a barometric sensor.
    James and vortex like this.
  12. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Doing this from a phone sorry for the double post lol.

    So superstrut was a JDM option but ended up in Europe and it was reallly good. Biggest complaint was it’s pricey to upkeep. For all the arms new it is about 1200 but there’s a guy who can refurbish them now and makes it rebuildable at home for about 500 for the service and 80 for the parts now.

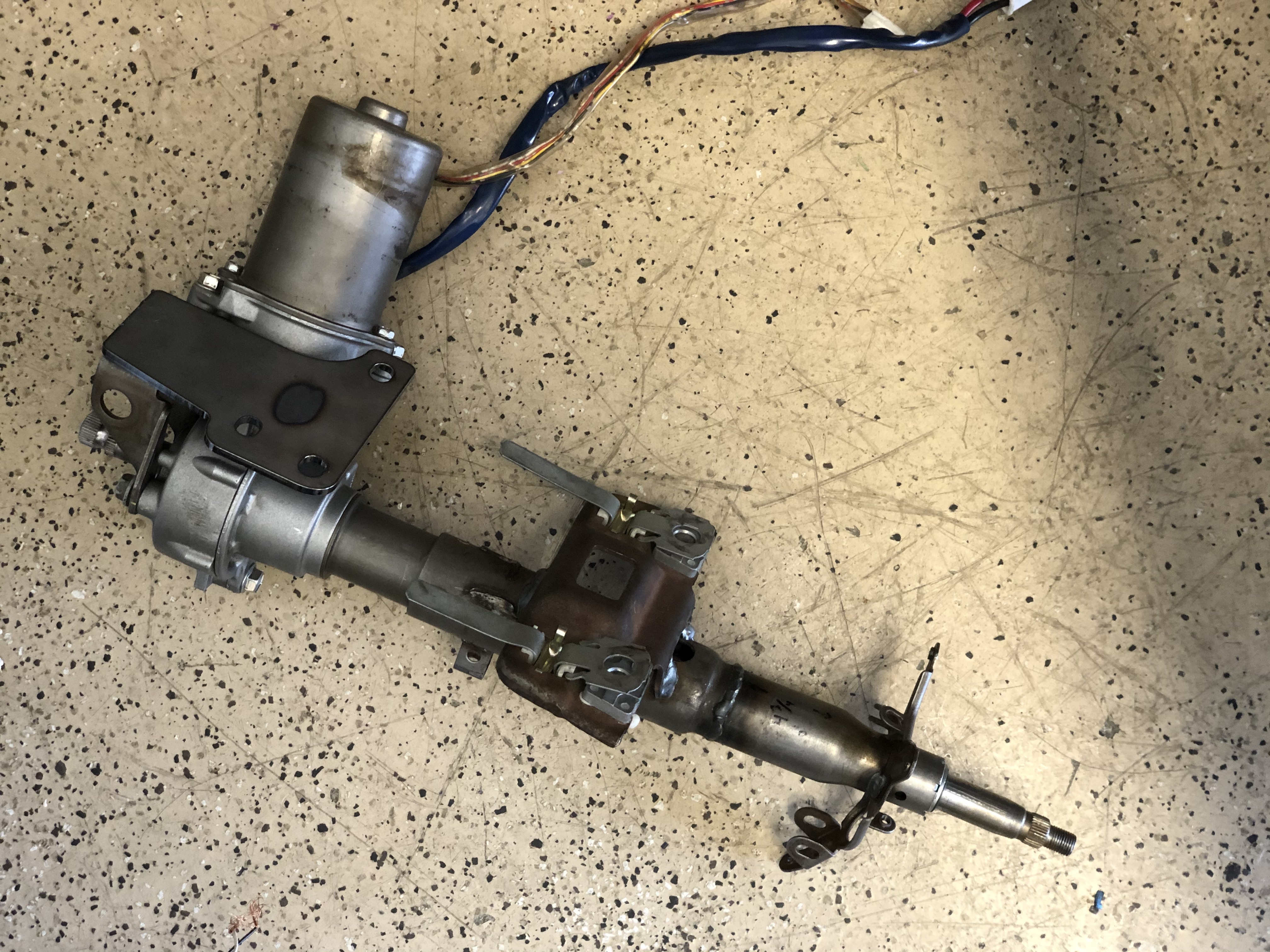

    So the column a ae92 guy actually did and I figure I try it. So I kept blowing pumps and racks trying to figure out a combo for the 2zz to play happy with 8th gen stuff and got tired of it and wanted to get rid of the fluids. And I guess less Power loss from the pump never noticed it btw lol.

    DBW on a oem setup is generally sluggish or weird. But I’m on a standalone ecu so I can program it to be 1:1 like a cable or by torque to pedal demand to prolong my trans from going out lol. Lost my final drive at a track day in January lol
    James, Goldy and vortex like this.
  13. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO

    That's pretty cool. I need to go read your whole thread it seems, lol. But because I'm lazy right now, what ECU did you go with? The days of the old eManage were a solid pain in the ass, lol.
    James likes this.
  14. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Im currently on a link Storm G4+ and will be upgrading to a Link G4X Extreme pretty soon.
    Car runs no gauges now ecu manages everything
    -Flex fuel blending
    -Engine limiters for oil pressure,engine coolant,oil Temp, Fuel pressure and over boost.
    - a digital wideband wired in so i can have closed loop referenced from a AFR map to trim the fuels and keep the map consistant
    James likes this.
  15. Offline

    Goldy Well-Known Member

    Administrator
    Message Count:
    32,006
    Likes Received:
    2,879
    Trophy Points:
    61,468
    yeah it seems like my mind has done a brain fart since I probably should have known the answers to all of those questions from the thread already, but granted, I"m not the smartest person when it comes to track mods. Sounds like you've got it all figured out and working in your favor! Hope it all works out
    James and 1nicetrd like this.
  16. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    so far its working pretty well lol but still working on a trans solution lol
    James and Goldy like this.
  17. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO

    Damn... wish that'd been around when I was building out my Rolla... lol

    When I looked at Link when we were first building the designs for the turbo project, LinkPlus had been out a couple years but still carried with it a lot of problems in regards to what we were trying to accomplish. When the G3 came out I was on the fence about what I wanted to do with my car and the eManage was doing what I needed it to do at the time.

    The tech data on those G4 series looks really good.
    James and 1nicetrd like this.
  18. Offline

    crolla "Wait did I just lose to a corolla?"

    Message Count:
    507
    Likes Received:
    78
    Trophy Points:
    578
    Location:
    Maryland
    Vehicles:
    ZZE110
    Is this thing up and running yet?
    James and 1nicetrd like this.
  19. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613

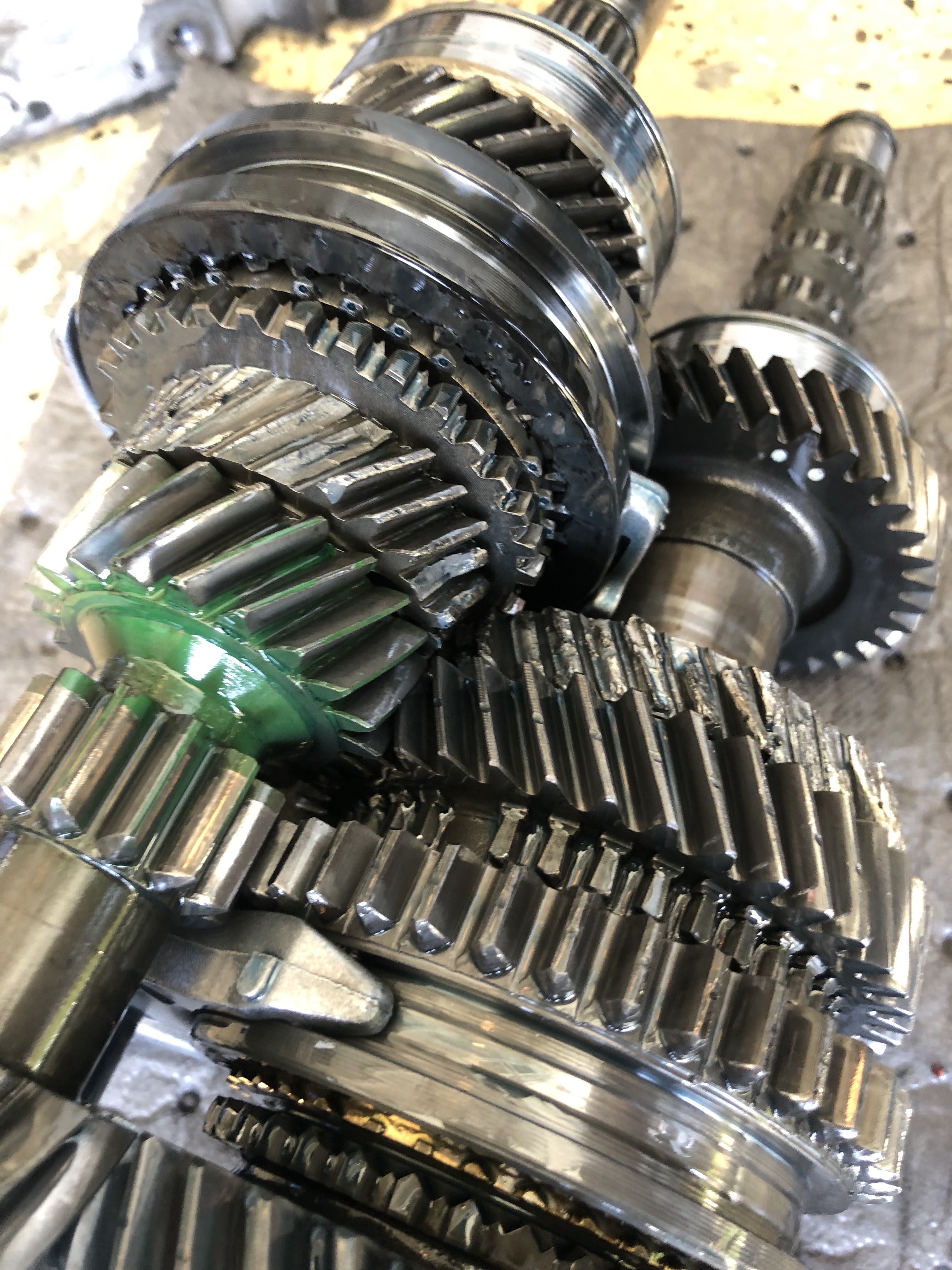

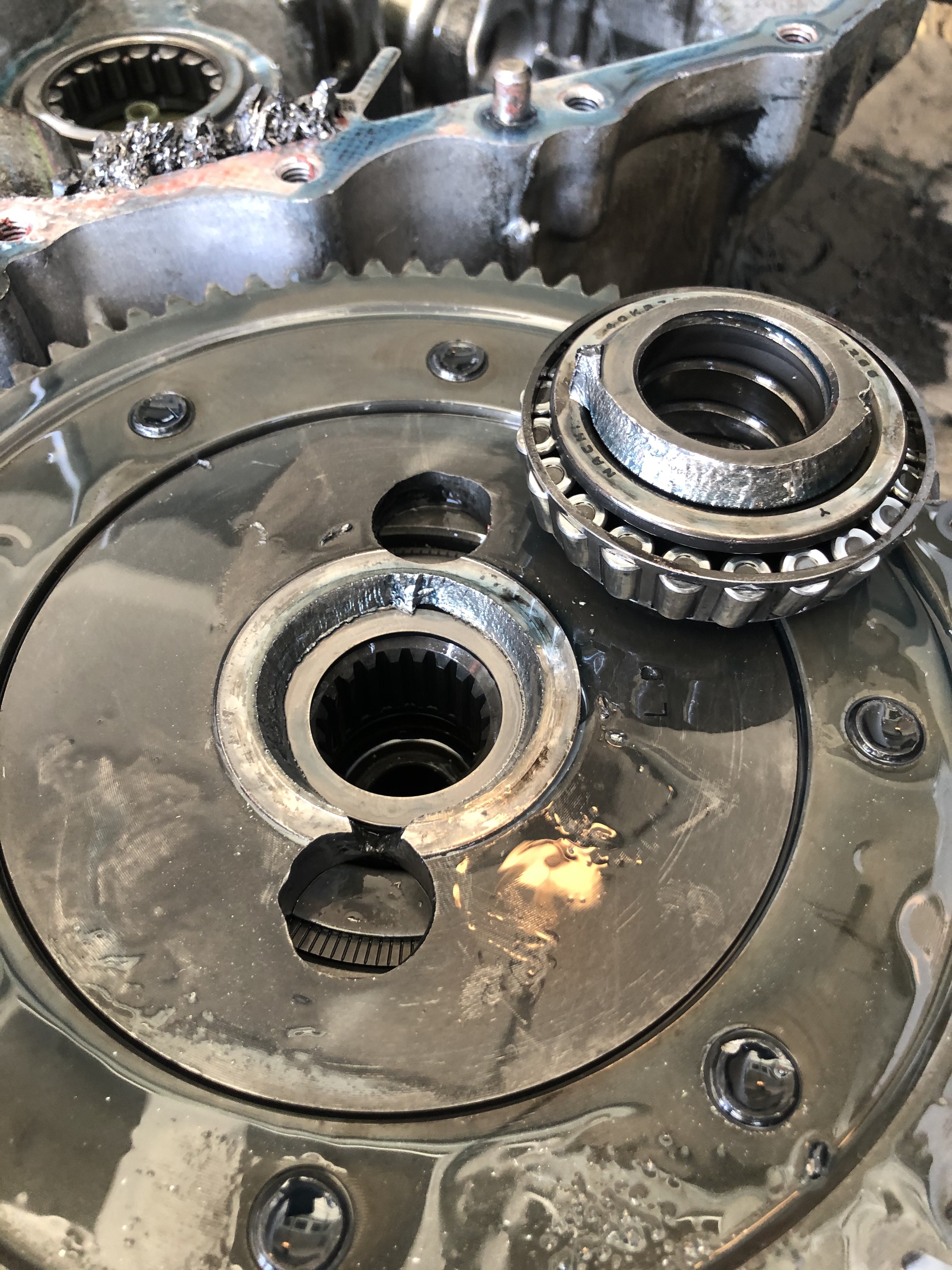

    No where near it IMG_8142.jpg IMG_8144.jpg
    MattH and James like this.
  20. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Update Alert :

    So my ever so weird, stupid, maybe crazy quest for modernizing this old chassis continues.

    First up is fixing my transmission problem with a retuned OS Giken LSD for my racing requirements.

    And some VERY strong 3rd/4th gear.

    That should conclude my power delivery/Transmission problem. (for a while)

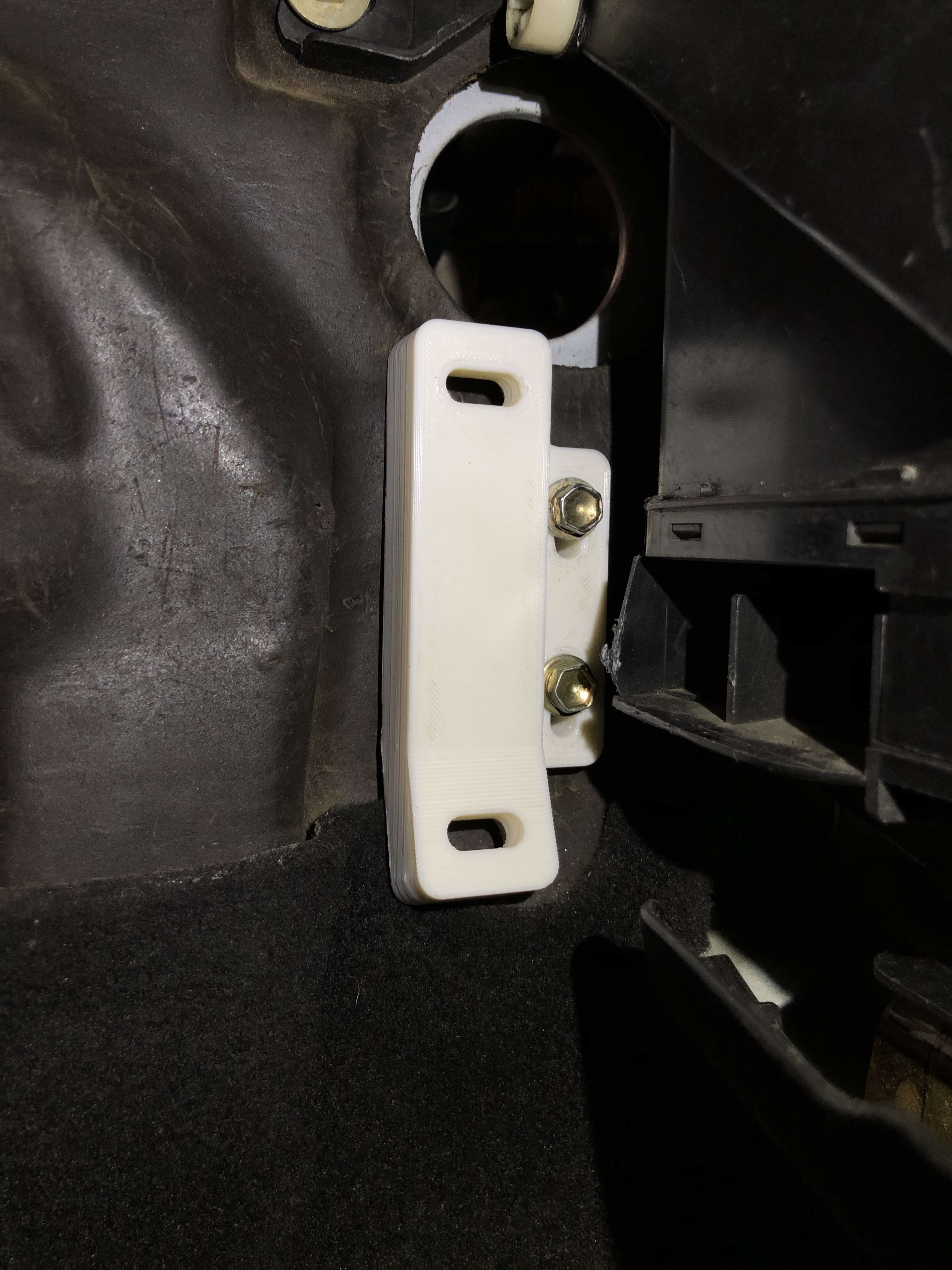

    Last was my recent update to use a Celica GTS DBW pedal. so i needed to do a little CAD work and testing to make a adapter. IMG_8369.jpg
    IMG_8364.jpg IMG_8366.jpg

    Came out pretty good for my first time trying to make a part lol.
    James, MattH and Goldy like this.
  21. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613

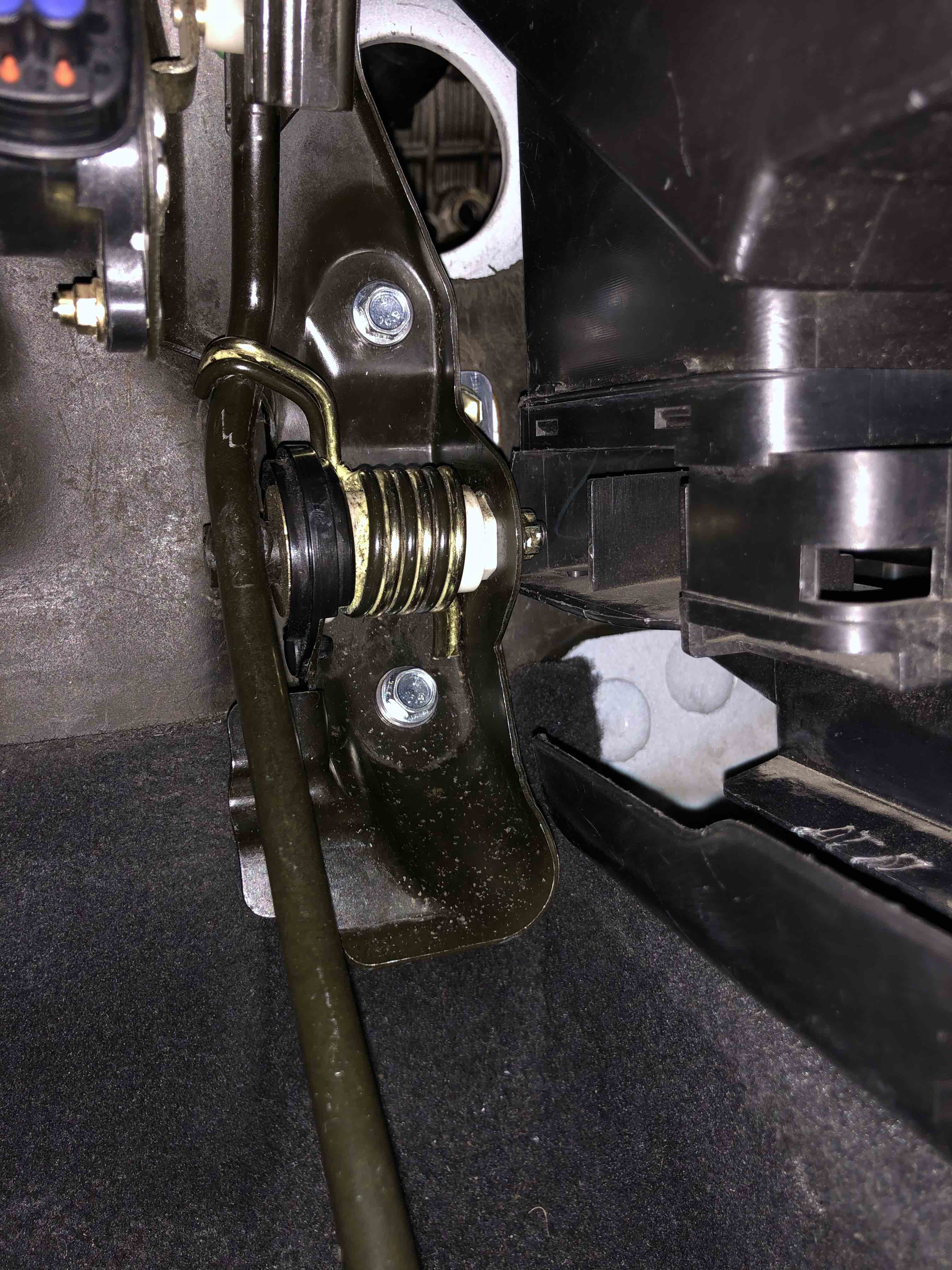

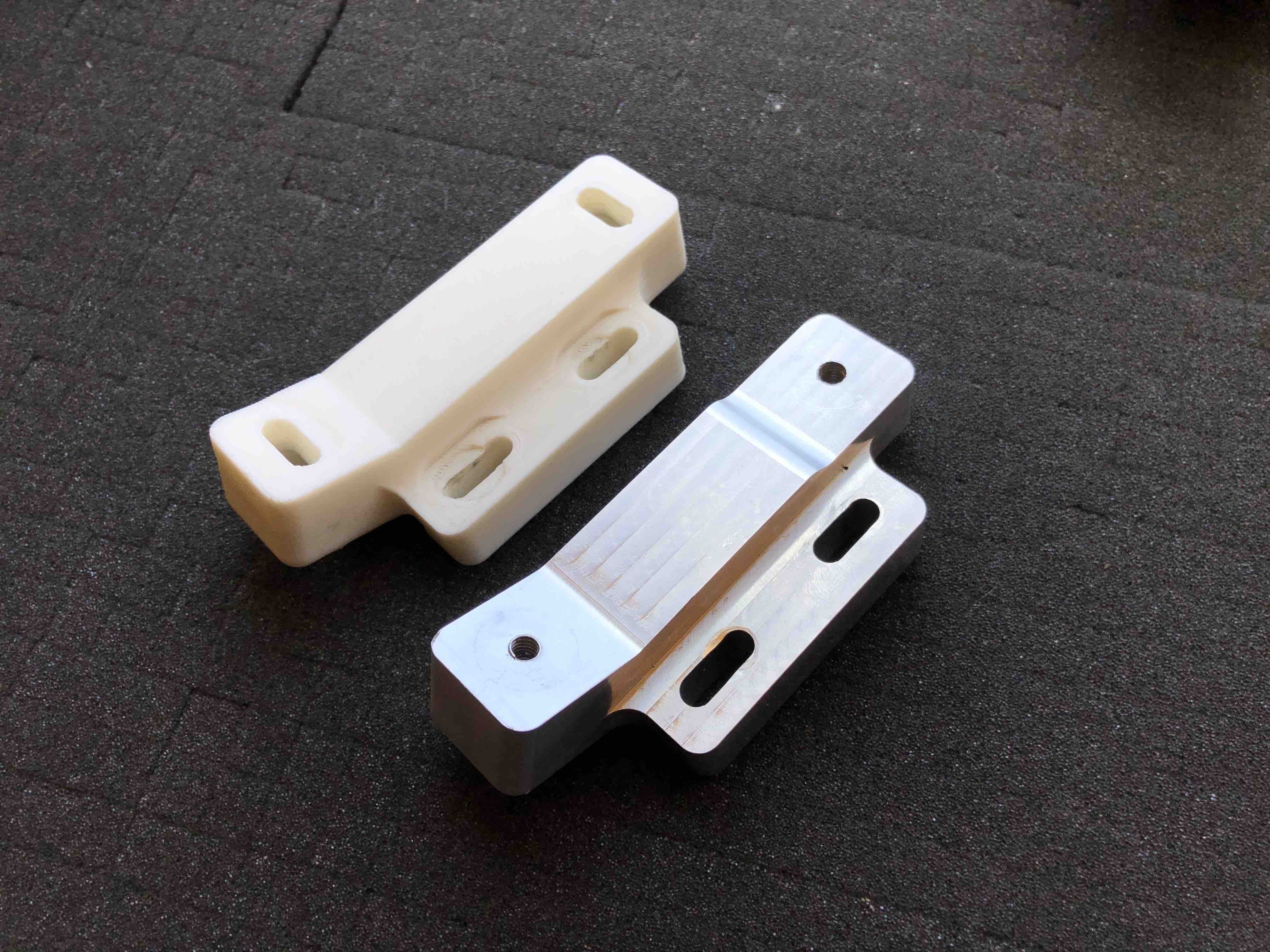

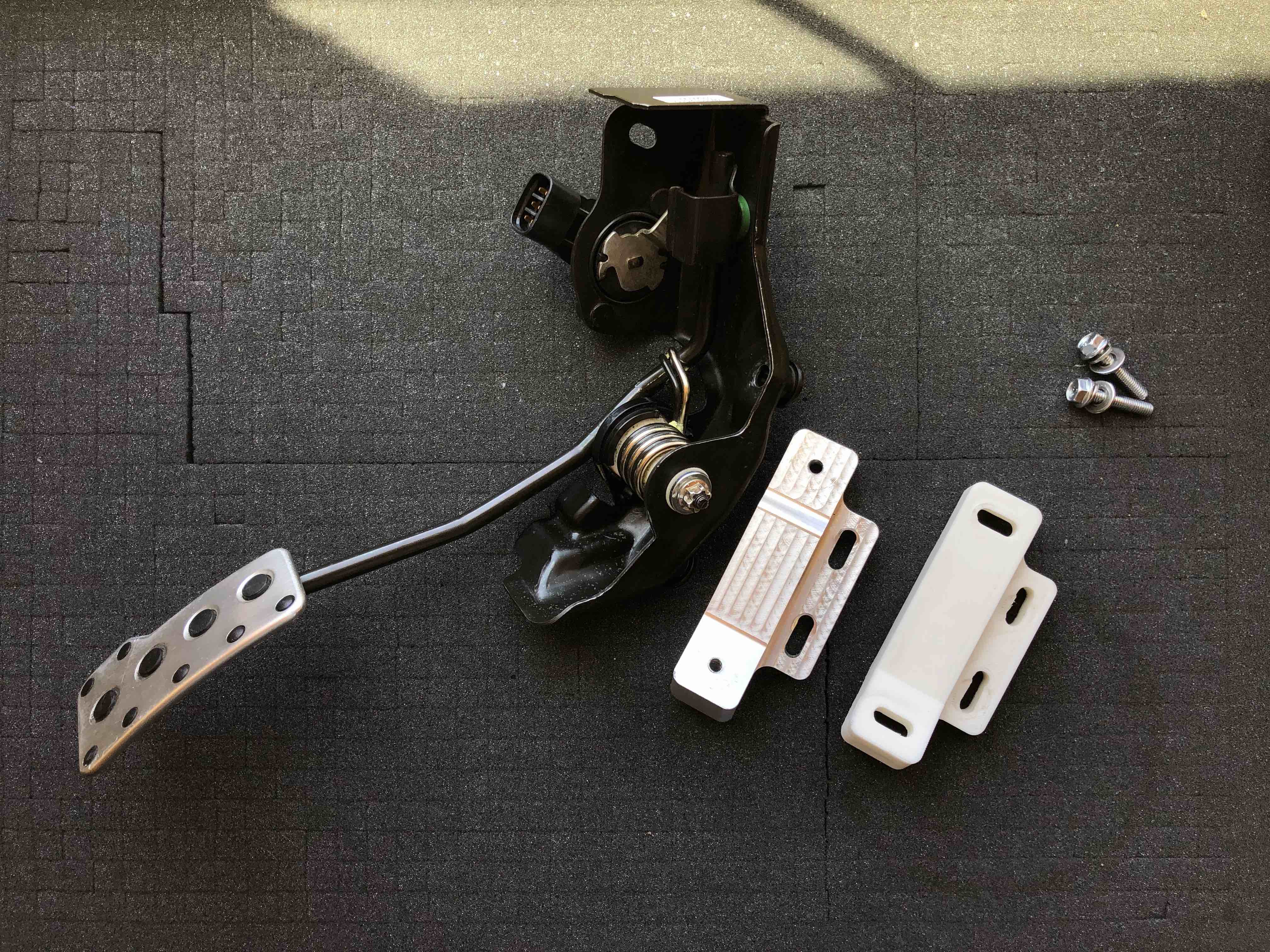

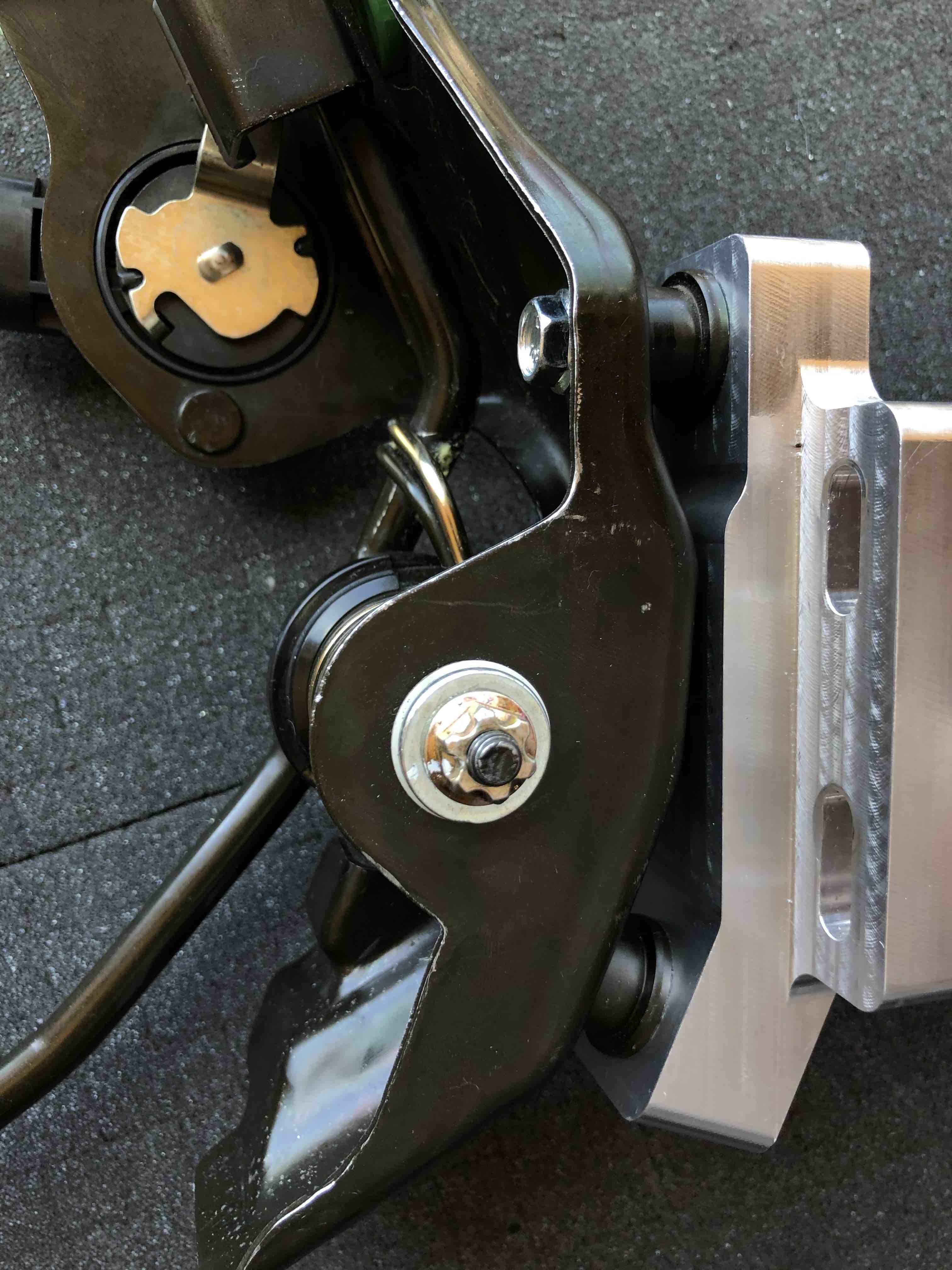

    DBW Update: So pedal adapter is finally finished. pretty hyped with this, being my first go at making a part and having it CNC'd.(new possibilities ahead now)
    7.jpg 2.jpg 1.jpg 4.jpg
    MattH, vortex and Goldy like this.
  22. Offline

    vortex Well-Known Member

    Administrator
    Message Count:
    4,110
    Likes Received:
    48
    Trophy Points:
    748
    Location:
    Westminster, CO
    Damn, just caught up on this one... nice friggin work man!
    1nicetrd and Goldy like this.
  23. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    Thank you ! yeah still more work coming too, But slowly feel like i have completed "mod wise" and only thing left is to get crazy seat time now.
    vortex likes this.
  24. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613

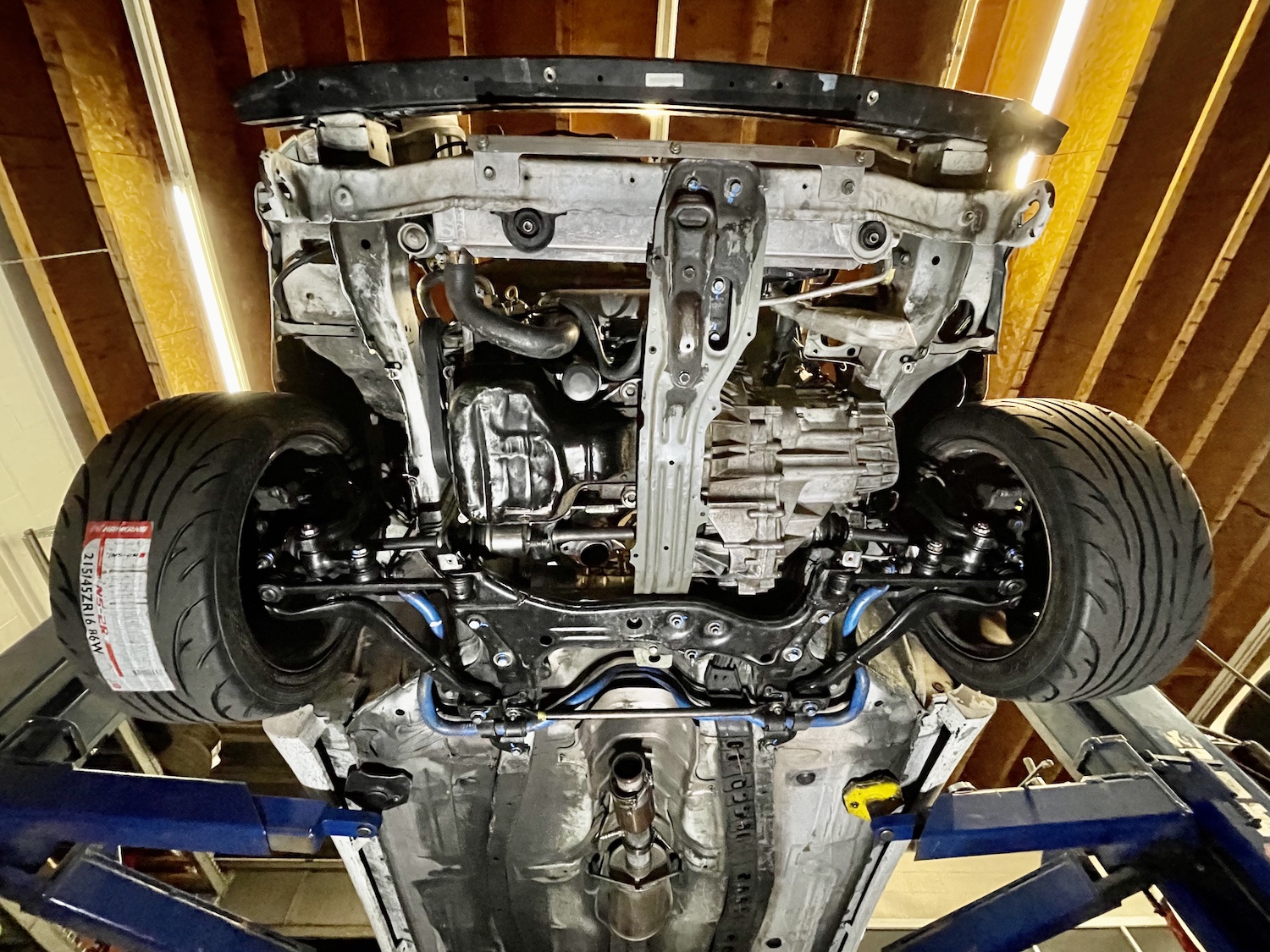

    Patched the car together for a track day. So far the upgrades are showing positive improvements!!

    Main shake was seeing how:
    2-Way coils
    ABS
    Super Strut Suspension
    Electric power steering column


    Temp Motor and oil pan was changed lol

    Car felt amazing so far!

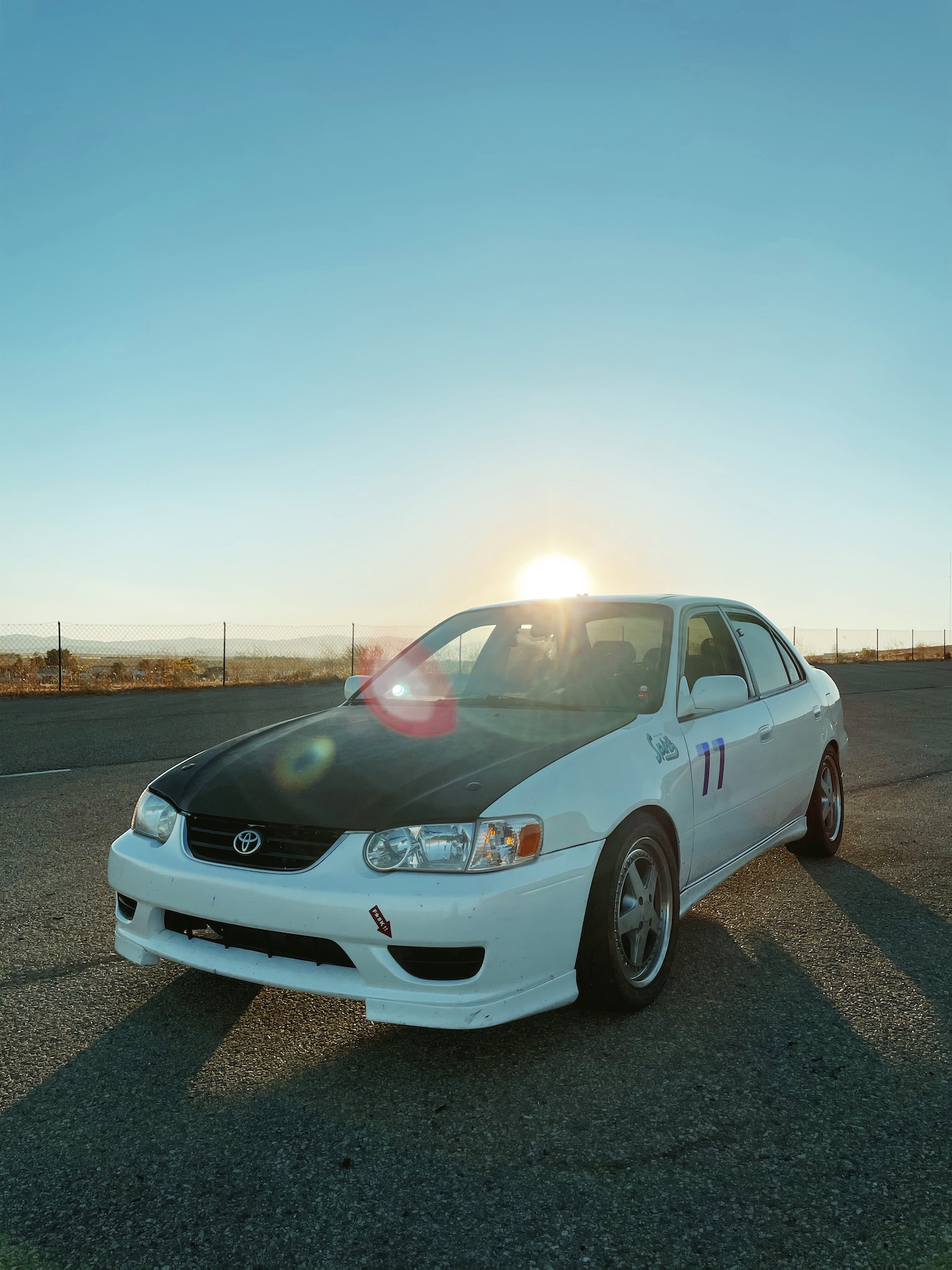

    OPENHOOD.jpg SOW.jpg
    crolla, MattH and Goldy like this.
  25. Offline

    engs_road Well-Known Member

    Message Count:
    35
    Likes Received:
    42
    Trophy Points:
    78
    Location:
    Ann Arbor, MI
    Vehicles:
    2006 Scion xB
    I want to drive this thing. Super Strut, Electric PS, NA 2ZZ w/ custom tune, and upgraded C60 w/ OS Giken sounds amazingly fast. :love:
    1nicetrd likes this.
  26. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    once the built motor is ready, might turn the boost to 15psi .... maybe if i can manage the heat well enough.
  27. Offline

    engs_road Well-Known Member

    Message Count:
    35
    Likes Received:
    42
    Trophy Points:
    78
    Location:
    Ann Arbor, MI
    Vehicles:
    2006 Scion xB
    I vote to track the NA 2ZZ until it blows. See signature below for more details.
    1nicetrd likes this.
  28. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613
    I know !! i want to badly.. just LSD and tune, then keep trucking.
  29. Offline

    1nicetrd Well-Known Member

    Message Count:
    935
    Likes Received:
    305
    Trophy Points:
    613

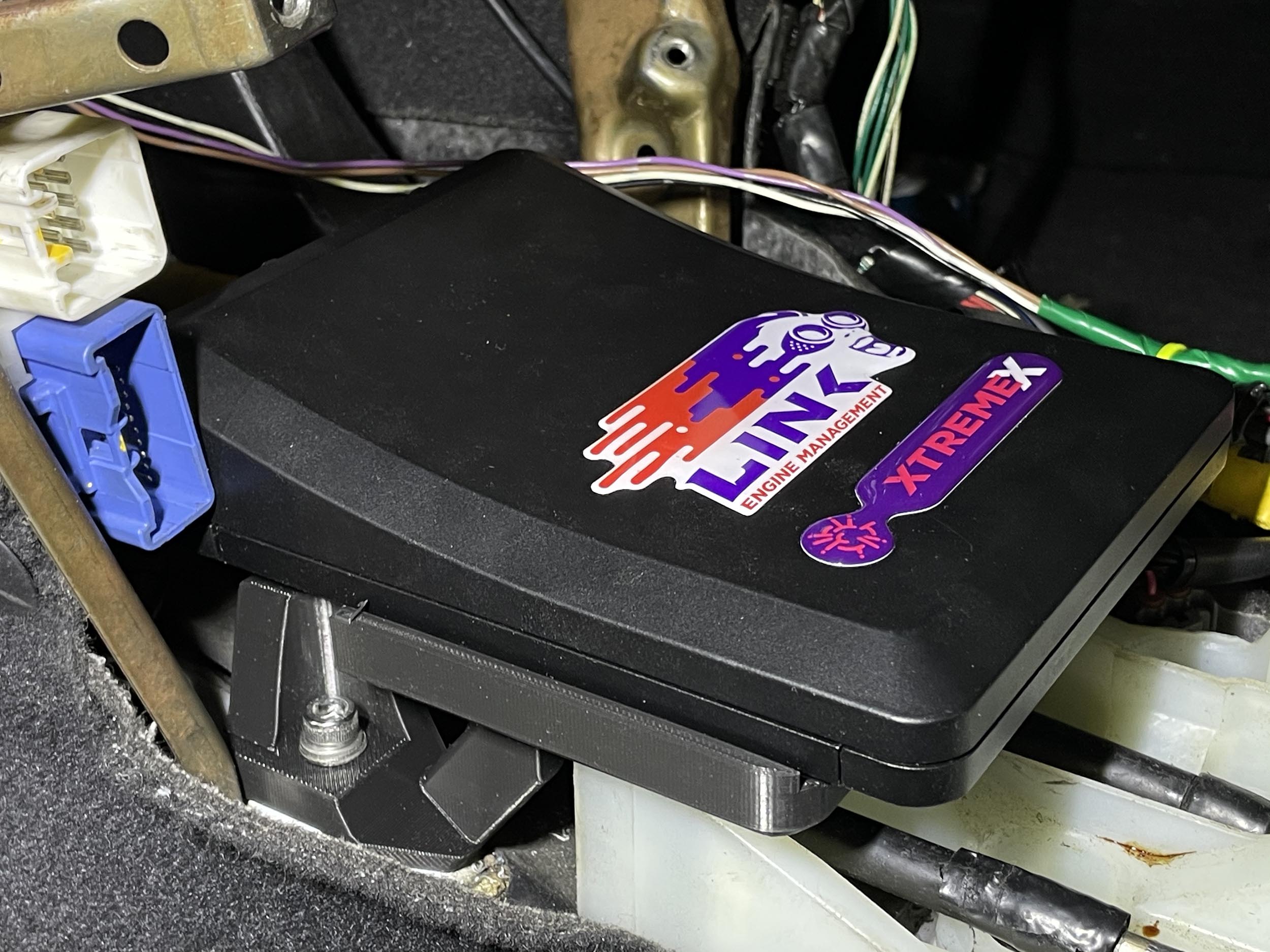

    [IMG]Made a little mount for my ECU

    Attached Files:

    engs_road, MattH and Goldy like this.
  30. Offline

    engs_road Well-Known Member

    Message Count:
    35
    Likes Received:
    42
    Trophy Points:
    78
    Location:
    Ann Arbor, MI
    Vehicles:
    2006 Scion xB
    Such a clean install. :joyful:
    1nicetrd likes this.
